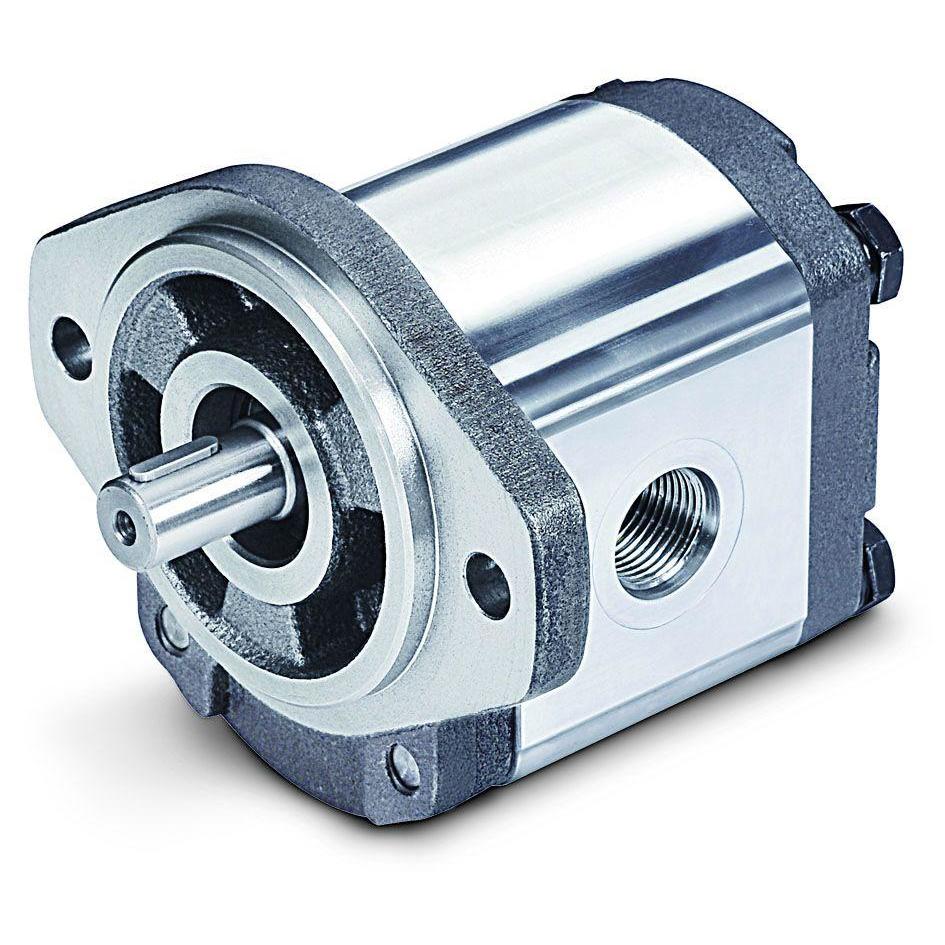

2GG2Z24L : Honor Gear Pump, CCW Rotation, 24cc (1.46in3), 11.41 GPM, 2550psi, 2500 RPM, #16 SAE (1") In, #12 SAE (3/4") Out, Splined Shaft 9-Tooth, 16/32 Pitch, SAE A 2-Bolt Mount

HonorSKU: 2GG2Z24L
6 Weeks

Price:
Sale price$369.64

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6 Weeks
Factory Location Corpus Christi, Texas
Material Aluminum Body, Cast Iron Flange and Cover
Shaft Size 9T 16/32DP
Shaft Type Splined
Port Location Rear Ported
Pressure Rating 2550
Rotation Counter-Clockwise
Displacement 24
Gpm At 1800 Rpm 11.41
Max Speed 2500 RPM
Inlet Port #16 SAE (1")
Outlet Port #12 SAE (3/4")
Mount SAE A 2-Bolt
Country of Manufacture Taiwan
Height 4.488
Length 4.634
Width 5.197
Weight 8.82

Description

The Honor Gear Pump Group 2 Pumps are defined by the mounting flange and shaft end, as well as the function, be it pump or motor or birotational pump. Mounting flanges are available in SAE A 2-bolt or four-bolt European mounting flanges. Shaft ends can be keyed, spline, or tapered, depending on your requirements. Displacements are available from 0.24 to 2.02 in3. Side ports are generally standard, but rear ports may be available upon request. If you need a pump in a configuration that isn't avaiable online, please give OneHydraulics a call and we'll be happy to help.
