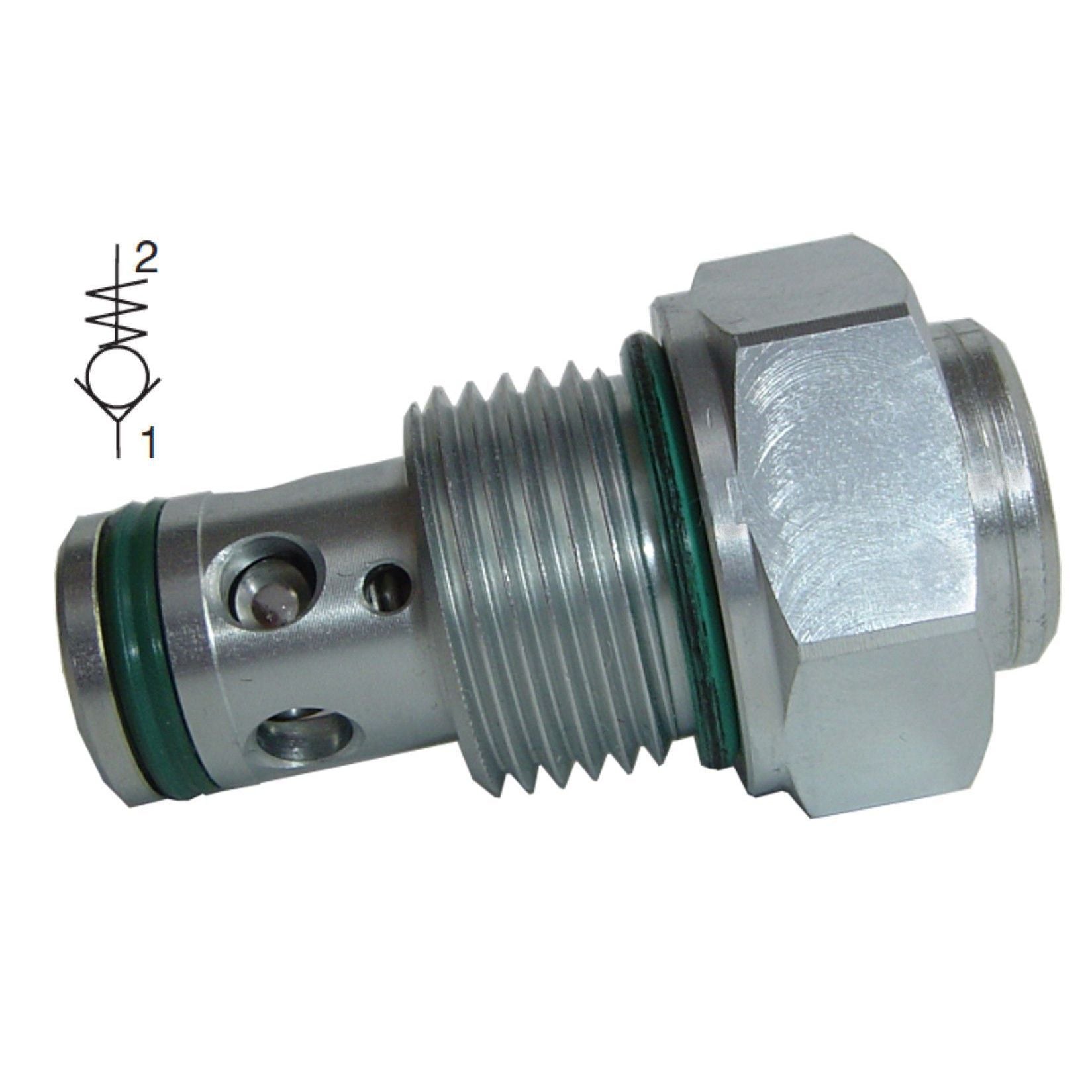

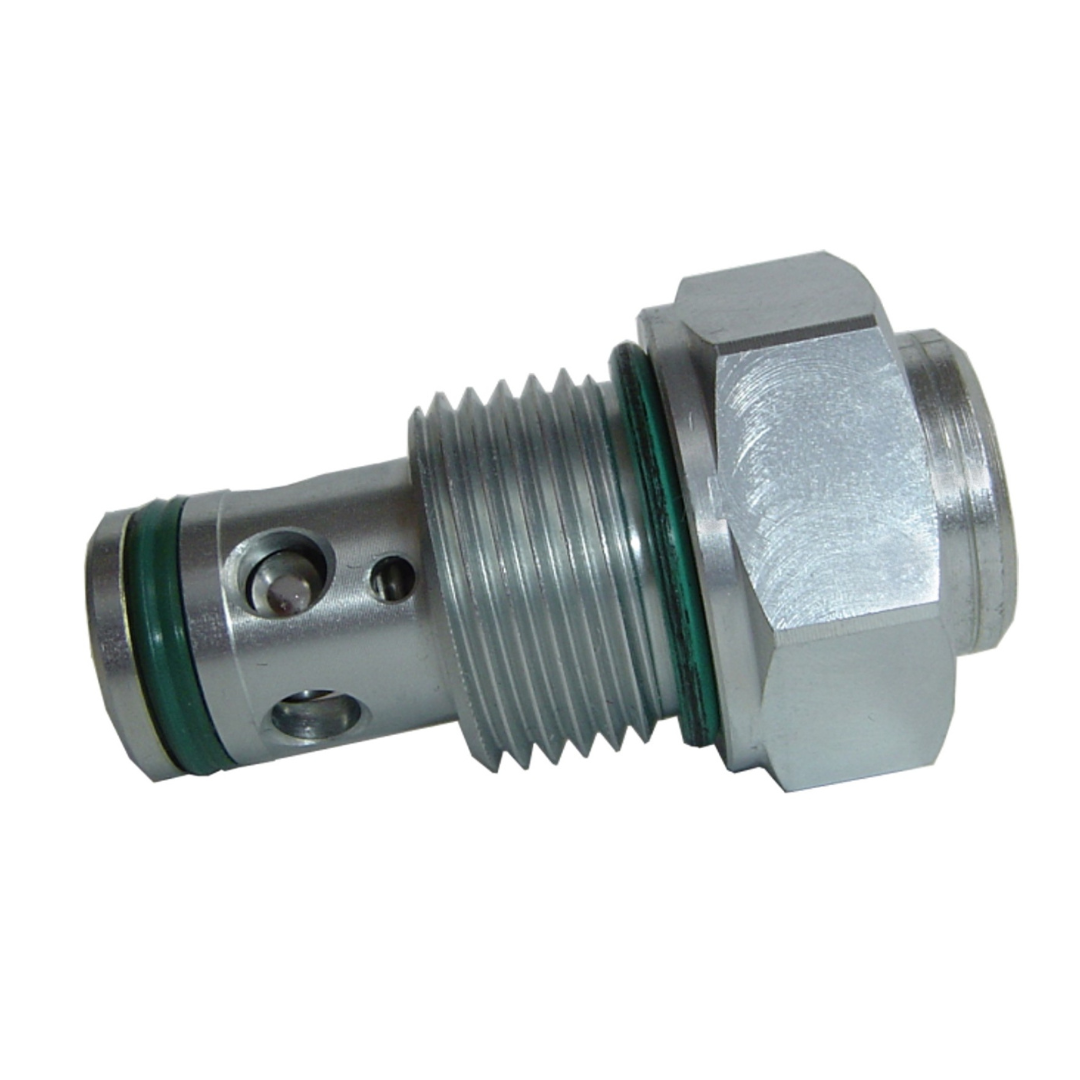

SC1F-B2/H070-A : Argo Check Valve Cartridge, Ball Type, 32 GPM, 6100psi, 101.5psi Cracking
SC1F-B2/H070-A : Argo Check Valve Cartridge, Ball Type, 32 GPM, 6100psi, 101.5psi Cracking
Roll over image to zoom in Click on image to zoom
SC1F-B2/H070-A : Argo Check Valve Cartridge, Ball Type, 32 GPM, 6100psi, 101.5psi CrackingSC1F-B2/H070-A : Argo Check Valve Cartridge, Ball Type, 32 GPM, 6100psi, 101.5psi Cracking

SC1F-B2/H070-A : Argo Check Valve Cartridge, Ball Type, 32 GPM, 6100psi, 101.5psi Cracking

Argo-HytosSKU: 27835700
Same Day
4
0
03.12.K.105A
Price:
$35.79

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 0
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Cartridge
Flow Rating 32
Pressure Rating 6100
Cracking Pressure 101.5
Check Valve Type Direct-Acting
Cartridge Cavity C-10-2
Height 1.2
Length 1.97
Width 1.2
Weight 0.5lbs

Description

The Argo-Hytos SC1F-B2 cartridge-style check valve can be used as a blocking or load-holding device. The cartridge has a ball check which is closed by a spring until sufficient pressure is applied at Port 1 to open flow to Port 2.
