Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Cross |
| Pressure Rating | 6000 |
| Series | 2651-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 3/8-18 (-06) |
| Side 2 Type | NPT |
| Side 3 Gender | MALE |
| Side 3 Size | 9/16-18 (-06) |
| Side 3 Type | JIC |
| Side 4 Gender | MALE |
| Side 4 Size | 9/16-18 (-06) |
| Side 4 Type | JIC |
Description

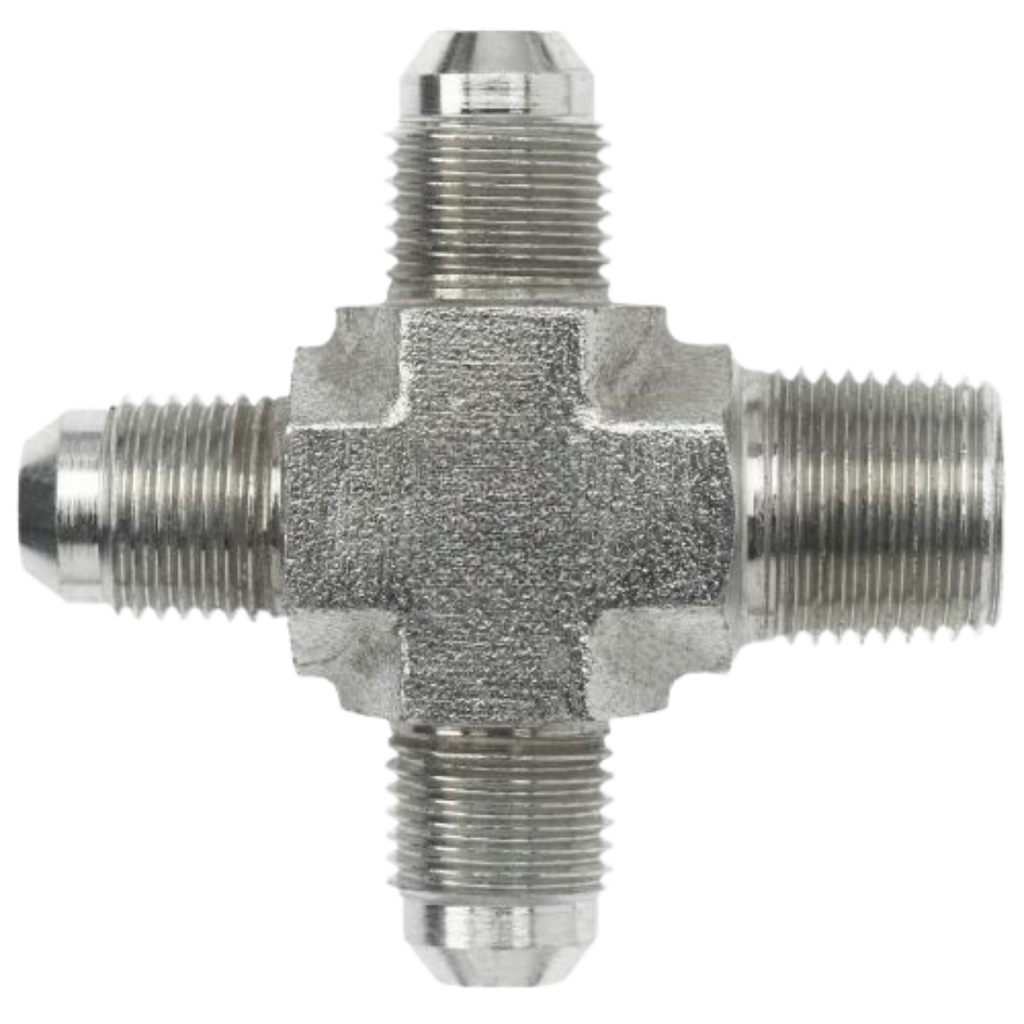

The Series 2651 Cross Male JIC x Male NPT x Male JIC x Male JIC adapters are durable carbon steel fittings designed to efficiently route fluid within hydraulic and fluid power systems. These cross adapters feature a combination of male JIC (Joint Industry Council) connections and one male NPT (National Pipe Tapered) connection, arranged in a cross configuration to distribute fluid to multiple components. The male JIC connections, characterized by their 37° tapered seats, provide a secure, leak-free seal when mated with female coned seats, ideal for hose end connections. The male NPT connection uses tapered threads that form a metal-to-metal seal, ensuring a tight connection for fluid and gas transfer. Made from carbon steel, these adapters offer superior strength, durability, and corrosion resistance, making them ideal for high-pressure applications. The Series 2651 adapters provide reliable and efficient fluid transfer in demanding industrial environments.
