Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Brass |
| Shape | Cross |
| Pressure Rating | 3300 |
| Series | 2650-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | JIC |
| Side 3 Gender | MALE |
| Side 3 Size | 3/4-16 (-08) |
| Side 3 Type | JIC |
| Side 4 Gender | MALE |
| Side 4 Size | 3/4-16 (-08) |
| Side 4 Type | JIC |
Description

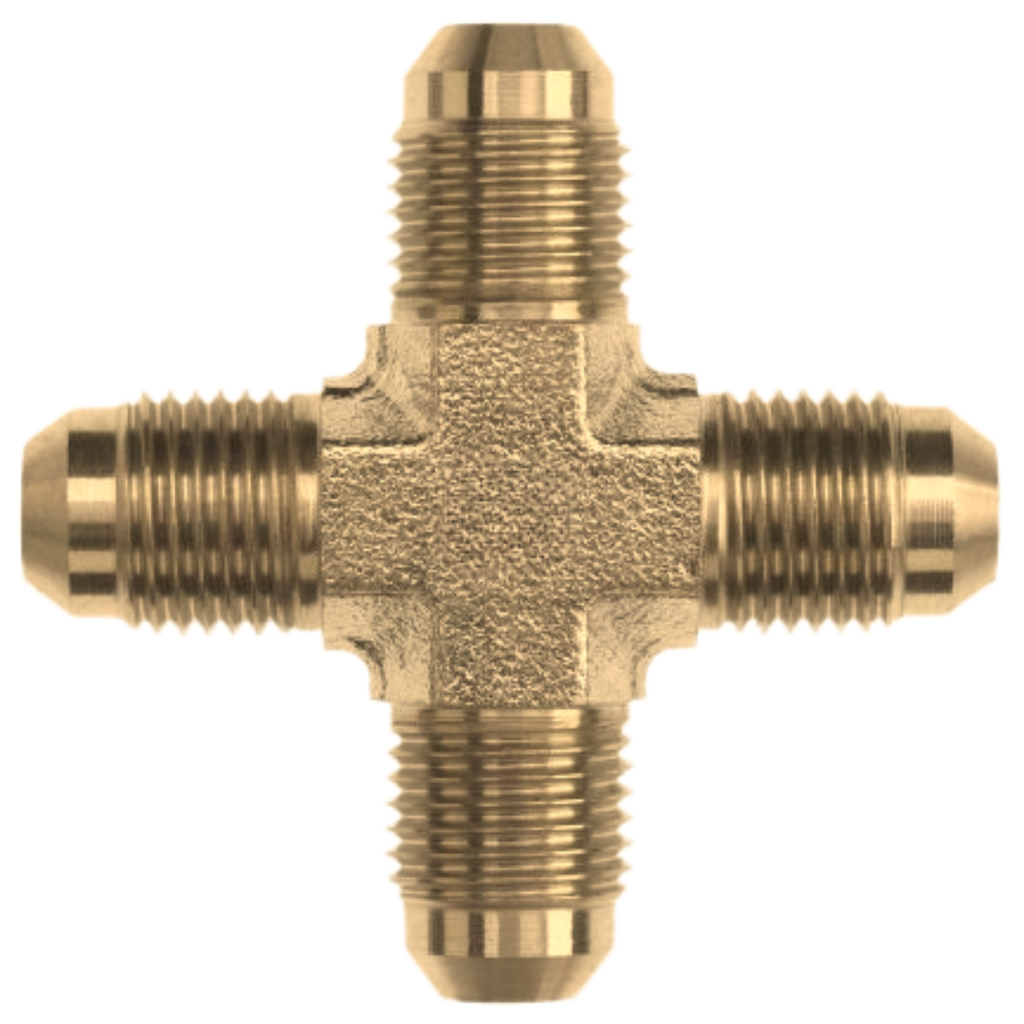

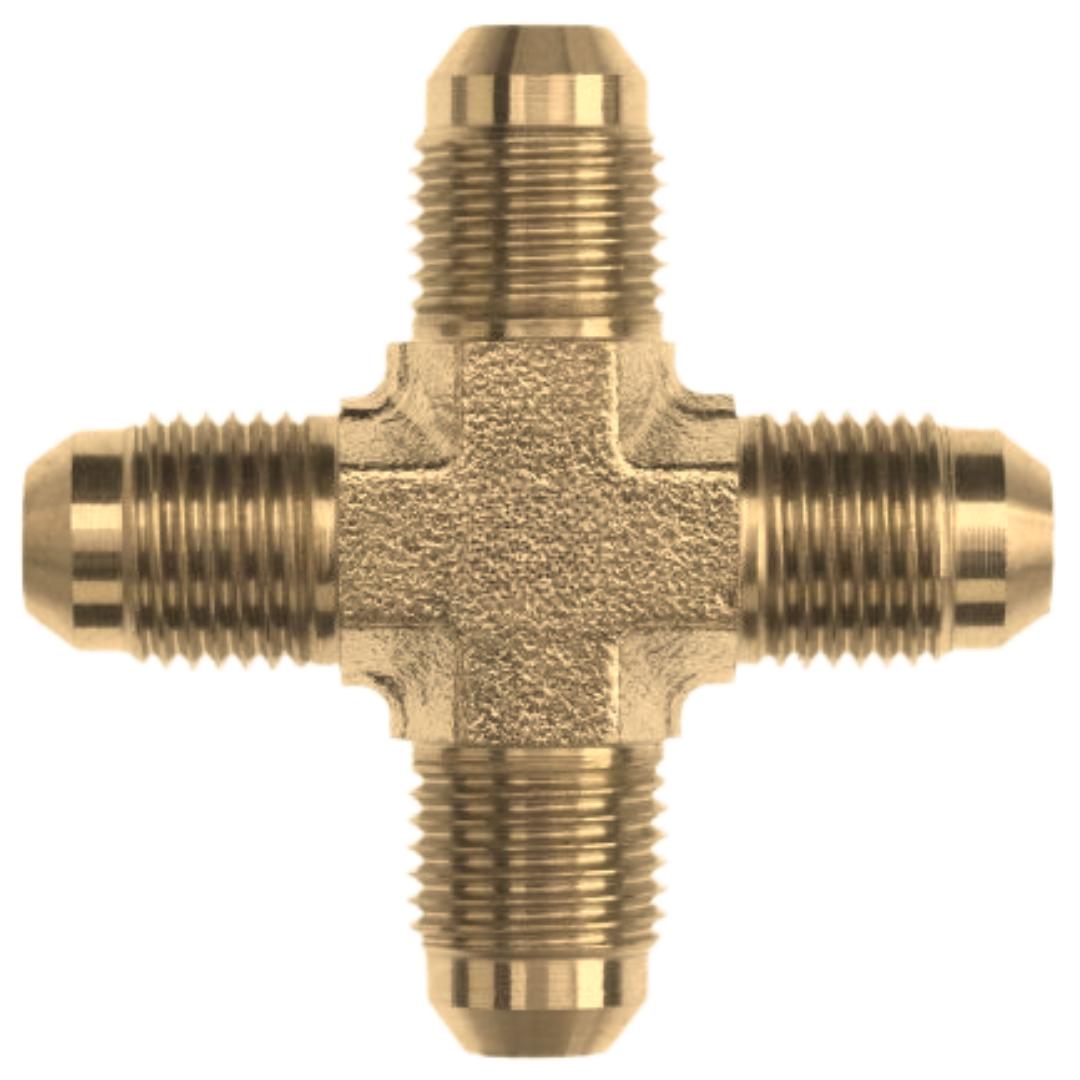

The Series 2650-B Cross Male JIC x Male JIC x Male JIC x Male JIC adapters are durable brass fittings designed for efficient fluid distribution in hydraulic and fluid power systems. These cross adapters feature four male JIC (Joint Industry Council) connections arranged in a cross shape, enabling the routing of fluid to multiple components. The male JIC connections, characterized by their 37° tapered seats, form a reliable, leak-free seal when connected to female coned seats, making them ideal for high-pressure applications and hose end connections. Made from brass, these adapters offer excellent corrosion resistance and strength, making them suitable for a wide range of industrial environments. The Series 2650-B adapters are engineered to provide dependable, long-lasting performance in fluid systems, ensuring efficient and secure fluid transfer in demanding applications.
