Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 6000 |
| Series | 2612-FG |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 1/4-18 (-04) |
| Side 1 Type | NPT |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1/4-18 (-04) |
| Side 2 Type | NPT |
| Side 3 Gender | MALE |
| Side 3 Size | 9/16-18 (-06) |
| Side 3 Type | JIC |
Description

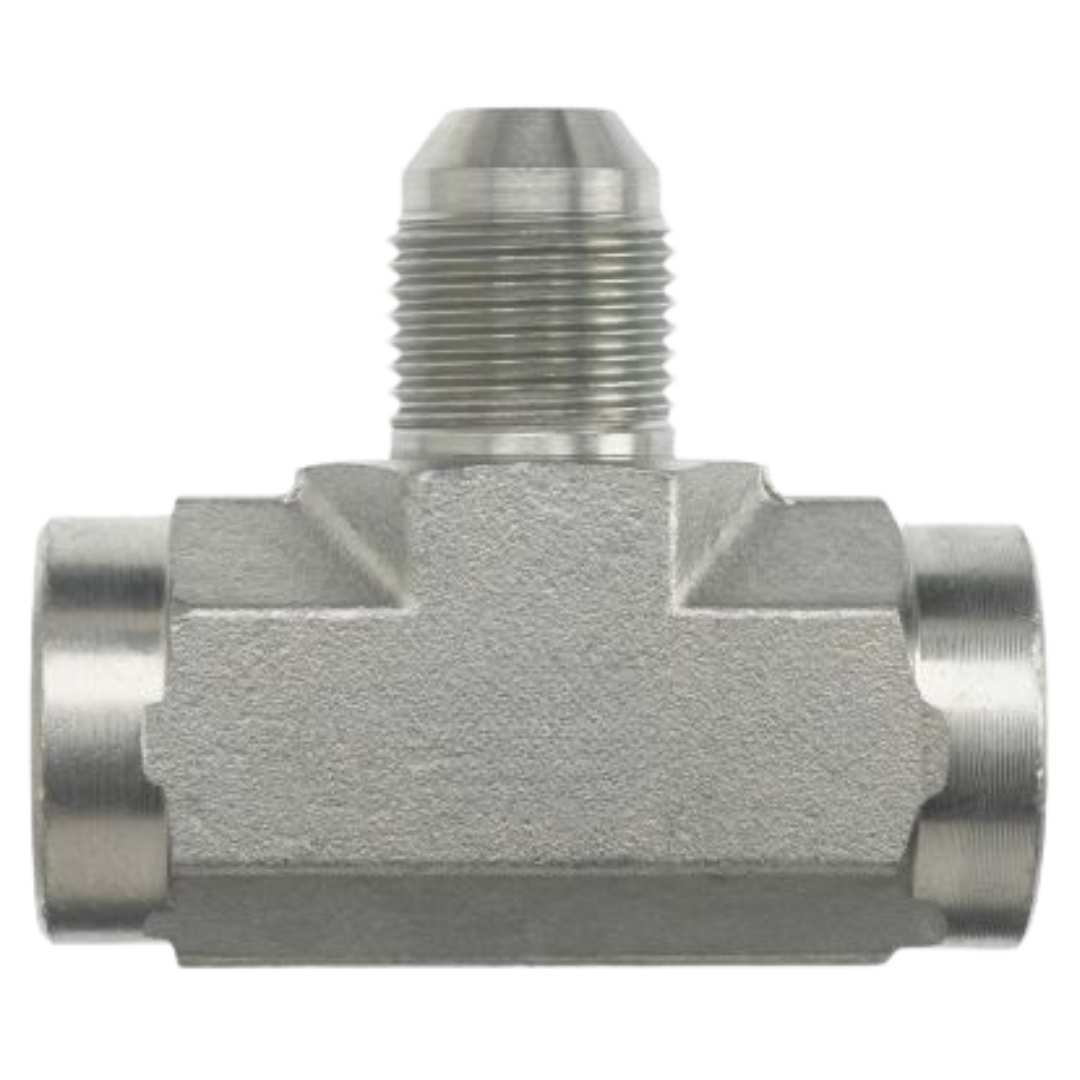

The Series 2612 Tee Female NPT x Female NPT x Male JIC rigid adapters are durable carbon steel fittings designed to provide reliable, leak-free connections in fluid power systems. Featuring a three-way tee design, these adapters are ideal for splitting or combining fluid flow within a system. The female NPT (National Pipe Tapered) connections on two sides are designed to create a tight, leak-proof seal through thread deformation, while the male JIC (Joint Industry Council) connection, with its 37° tapered seat, ensures a secure, mechanical seal when mated with the female JIC connection. These rigid adapters are perfect for systems that require flexibility in routing, while maintaining strong, durable connections. Made from high-quality carbon steel, the Series 2612 offers exceptional strength, corrosion resistance, and long-lasting performance, making it an ideal choice for industrial applications and high-pressure fluid transfer systems that demand reliable, efficient connections.
