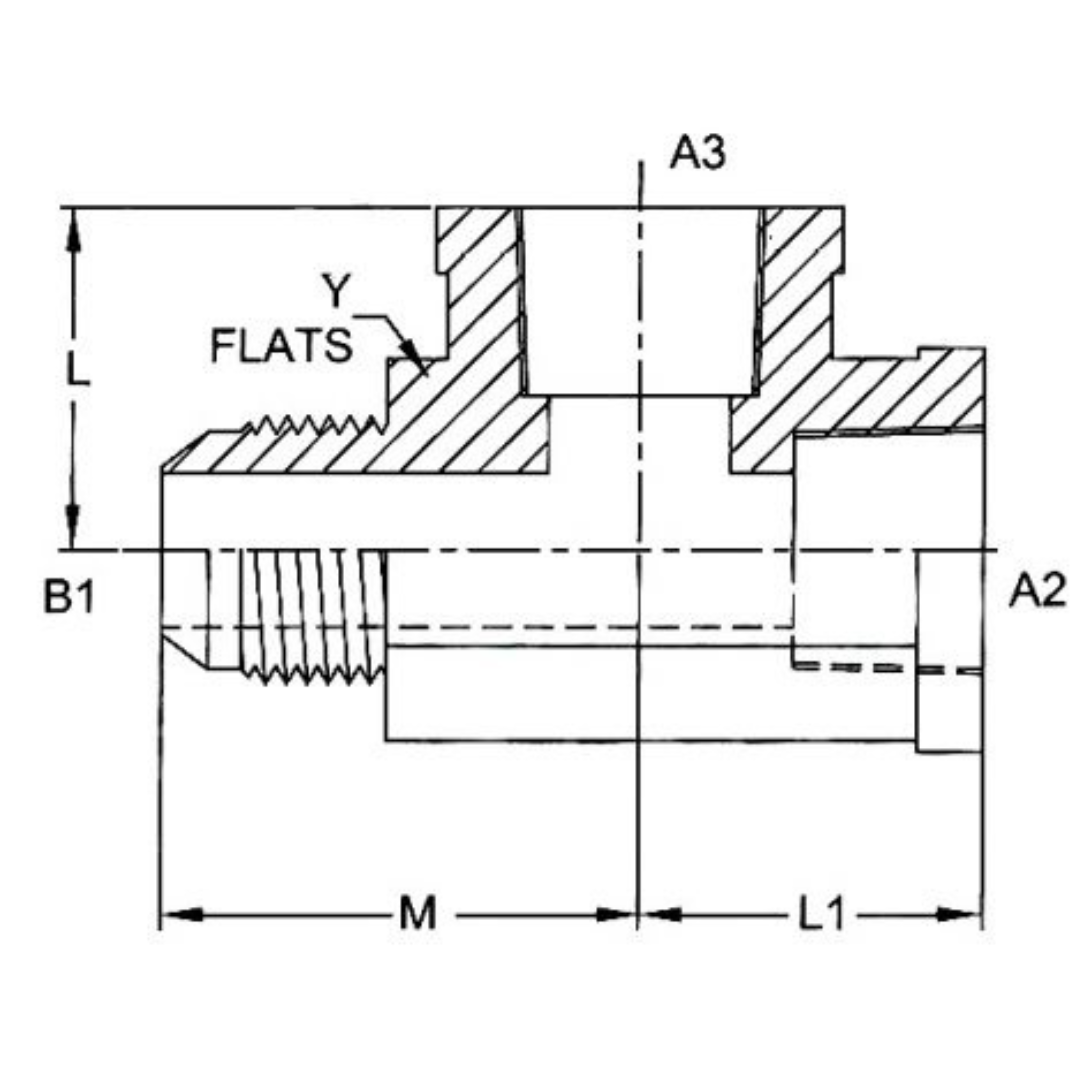

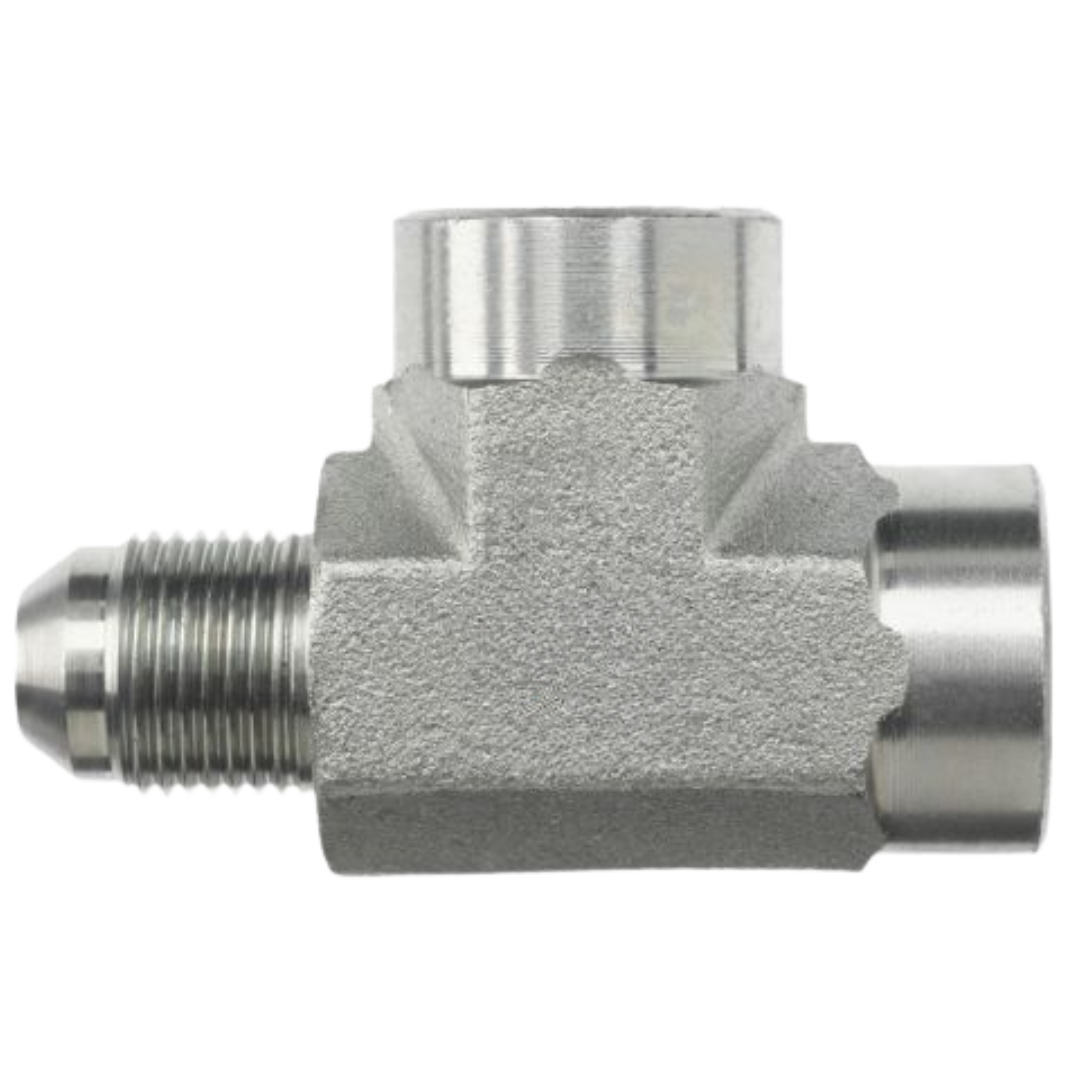

2609-20-20-20-FG : OneHydraulics Tee Steel Adapter, 1-5/8-12 (-20) Male JIC x 1-1/4-11-1/2 (-20) Female NPT x 1-1/4-11-1/2 (-20) Female NPT, 2500psi
2609-20-20-20-FG : OneHydraulics Tee Steel Adapter, 1-5/8-12 (-20) Male JIC x 1-1/4-11-1/2 (-20) Female NPT x 1-1/4-11-1/2 (-20) Female NPT, 2500psi
Roll over image to zoom in Click on image to zoom
2609-20-20-20-FG : OneHydraulics Tee Steel Adapter, 1-5/8-12 (-20) Male JIC x 1-1/4-11-1/2 (-20) Female NPT x 1-1/4-11-1/2 (-20) Female NPT, 2500psi2609-20-20-20-FG : OneHydraulics Tee Steel Adapter, 1-5/8-12 (-20) Male JIC x 1-1/4-11-1/2 (-20) Female NPT x 1-1/4-11-1/2 (-20) Female NPT, 2500psi

2609-20-20-20-FG : OneHydraulics Tee Steel Adapter, 1-5/8-12 (-20) Male JIC x 1-1/4-11-1/2 (-20) Female NPT x 1-1/4-11-1/2 (-20) Female NPT, 2500psi

Save $95.24
OneHydraulicsSKU: 2609-20-20-20-FG
1-3 Days
Price:
$89.10 $184.34

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Houston, Texas or Dallas, Texas or Cleveland, Ohio
Material Steel
Shape Tee
Pressure Rating 2500
Series 2609-FG
Country of Manufacture China
Side 1 Gender MALE
Side 1 Size 1-5/8-12 (-20)
Side 1 Type JIC
Side 2 Gender FEMALE
Side 2 Size 1-1/4-11-1/2 (-20)
Side 2 Type NPT
Side 3 Gender FEMALE
Side 3 Size 1-1/4-11-1/2 (-20)
Side 3 Type NPT

Description

The Series 2609 Tee Male JIC x Female NPT x Female NPT adapters are robust carbon steel fittings designed to provide secure, leak-free connections in fluid power systems. These tee adapters feature a three-way design, making them ideal for splitting or combining fluid flow in a system. One end is equipped with a male JIC (Joint Industry Council) connection, featuring a 37° tapered seat for a reliable, mechanical seal. The other two ends have female NPT (National Pipe Tapered) connections, which create a tight, leak-proof seal through thread deformation. These versatile adapters are perfect for applications that require efficient fluid distribution and secure connections in high-pressure systems. Made from durable carbon steel, the Series 2609 offers excellent strength, corrosion resistance, and long-lasting performance, making it an ideal choice for industrial hydraulic and fluid power systems that require dependable, flexible, and durable connections.
