Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 6000 |
| Series | 2607-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 3/8-18 (-06) |
| Side 2 Type | NPT |
| Side 3 Gender | MALE |
| Side 3 Size | 3/8-18 (-06) |
| Side 3 Type | NPT |
Description

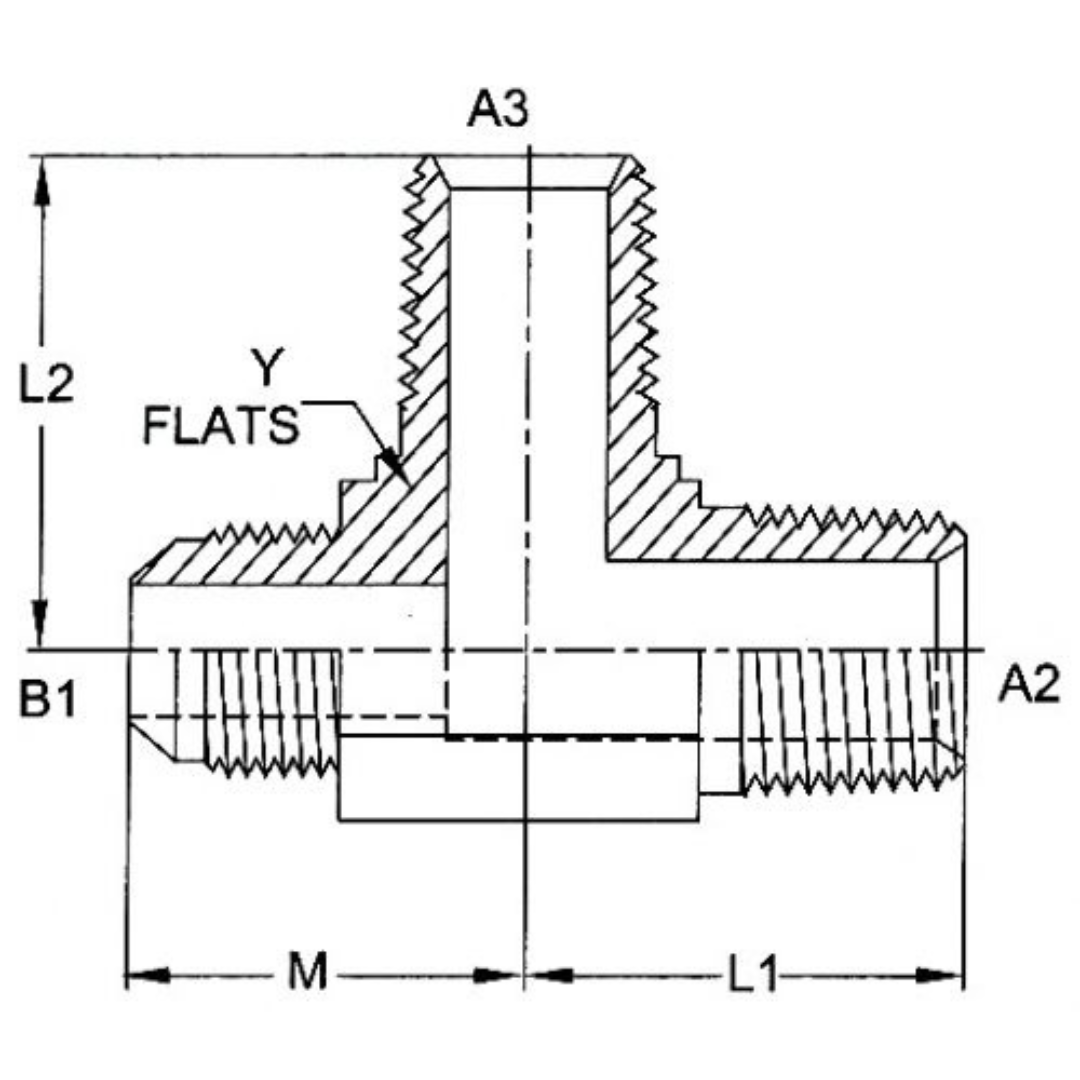

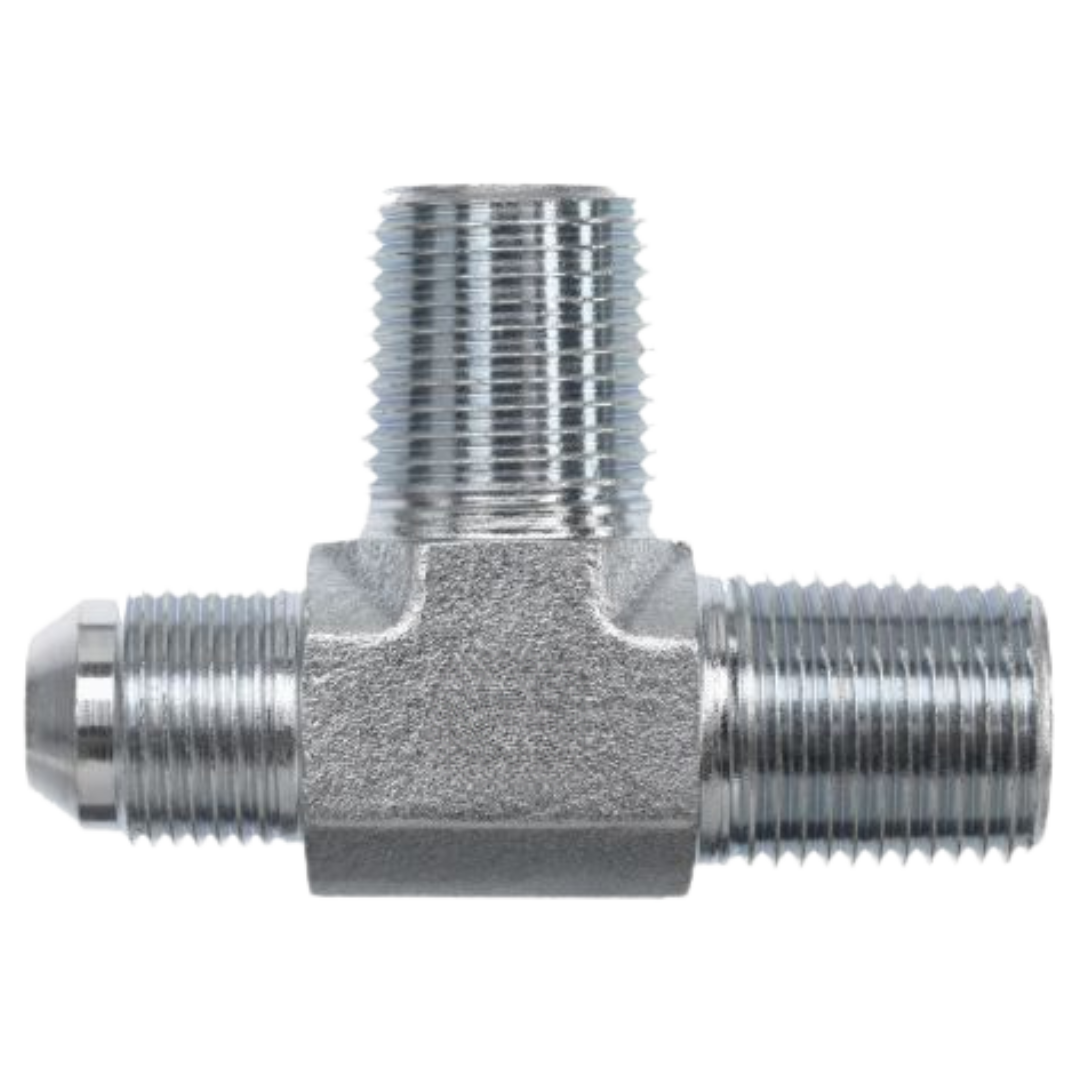

The Series 2607 Tee Male JIC x Male NPT x Male NPT adapters are durable carbon steel fittings designed for secure, leak-free connections in hydraulic and fluid power systems. These tee adapters feature a three-way design, ideal for efficiently splitting or combining fluid flow within a system. One end is equipped with a male JIC (Joint Industry Council) connection, using a 37° tapered seat to create a reliable, mechanical seal, while the other two ends feature male NPT (National Pipe Tapered) connections, which provide tight, leak-proof seals through thread deformation. Made from carbon steel, the Series 2607 adapters offer superior strength, corrosion resistance, and long-lasting performance, making them perfect for high-pressure fluid systems and industrial applications that require reliable, flexible, and efficient connections. These adapters are ideal for systems that demand secure fluid routing and dependable connections under high-pressure conditions.
