25AAX1L2F : DP Winch, 25,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange
25AAX1L2F : DP Winch, 25,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange
25AAX1L2F : DP Winch, 25,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange
Roll over image to zoom in Click on image to zoom
25AAX1L2F : DP Winch, 25,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange25AAX1L2F : DP Winch, 25,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange25AAX1L2F : DP Winch, 25,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange

25AAX1L2F : DP Winch, 25,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange

DP WinchSKU: 25AAX1L2F
6-8 Weeks
Price:
$8,065.54

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma

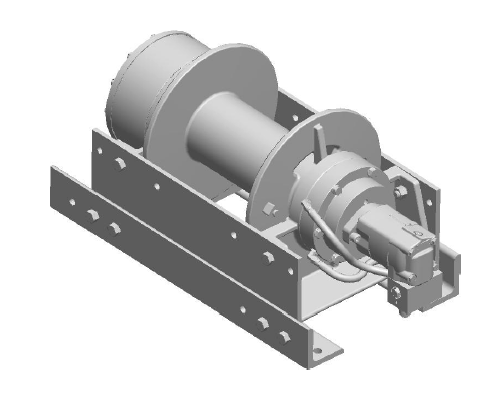

Solid Model

Click here to download

Service Manual Download

Click here to download

Hydraulic Motor Pressure 2750psi
Country of Manufacture United States
Height 16.97
Length 36.81
Width 16.97
Weight 551

Description

With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.

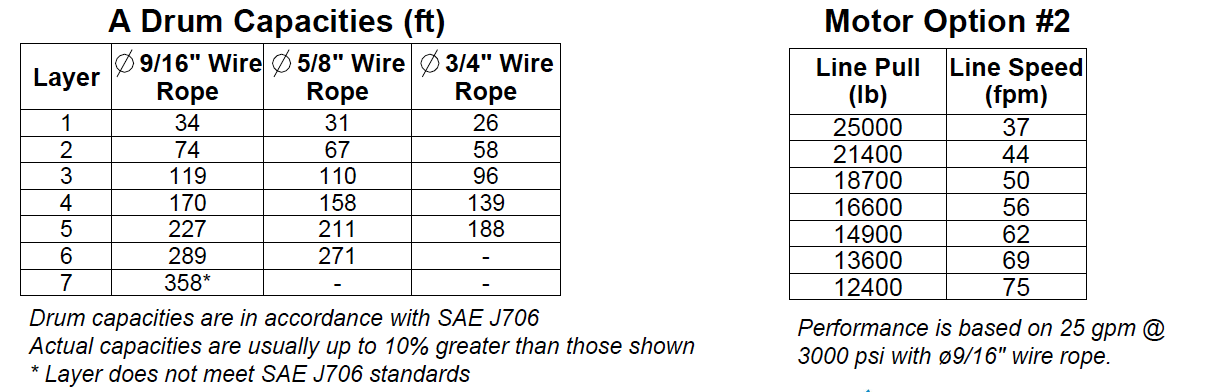

* 25,000lbs. capacity winch storing 329 ft. of 5/8” dia. rope

* 31.75" Base only

* No Kickout (Also known as a clutch, a ‘kickout’ is a mechanism that engages an input shaft to turn your winch)

* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when paying in)

* Medium Flow ~ Under 25GPM

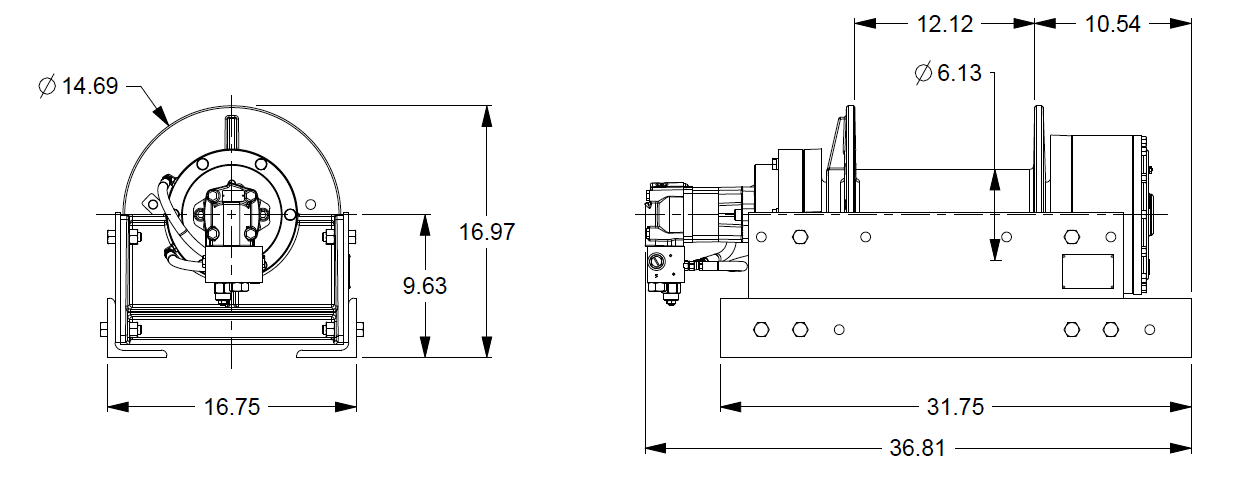

* 6.13" Barrel x 12.12" Length x 14.69" Flange
