Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | 6000 |
| Series | 2501-LLL-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 7/16-20 (-04) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 1/8-27 (-02) |
| Side 2 Type | NPT |
Description

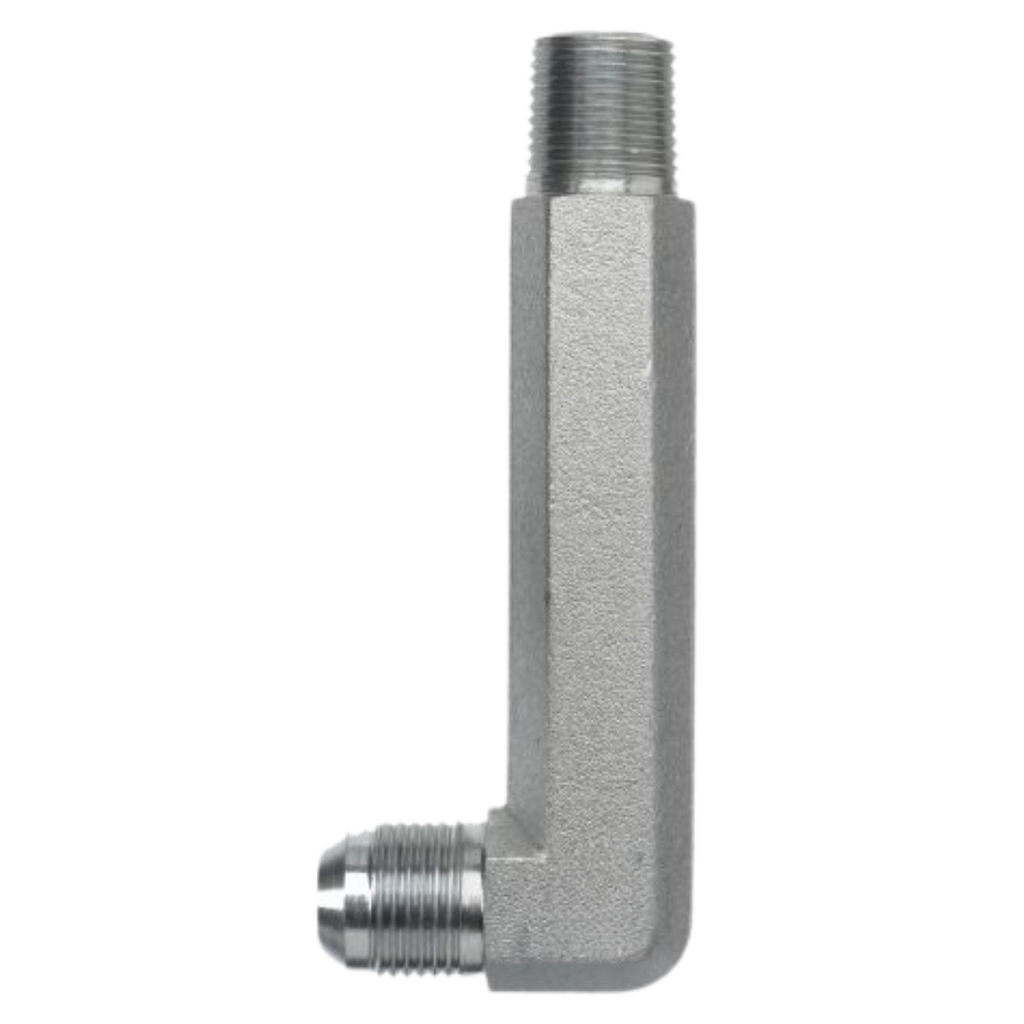

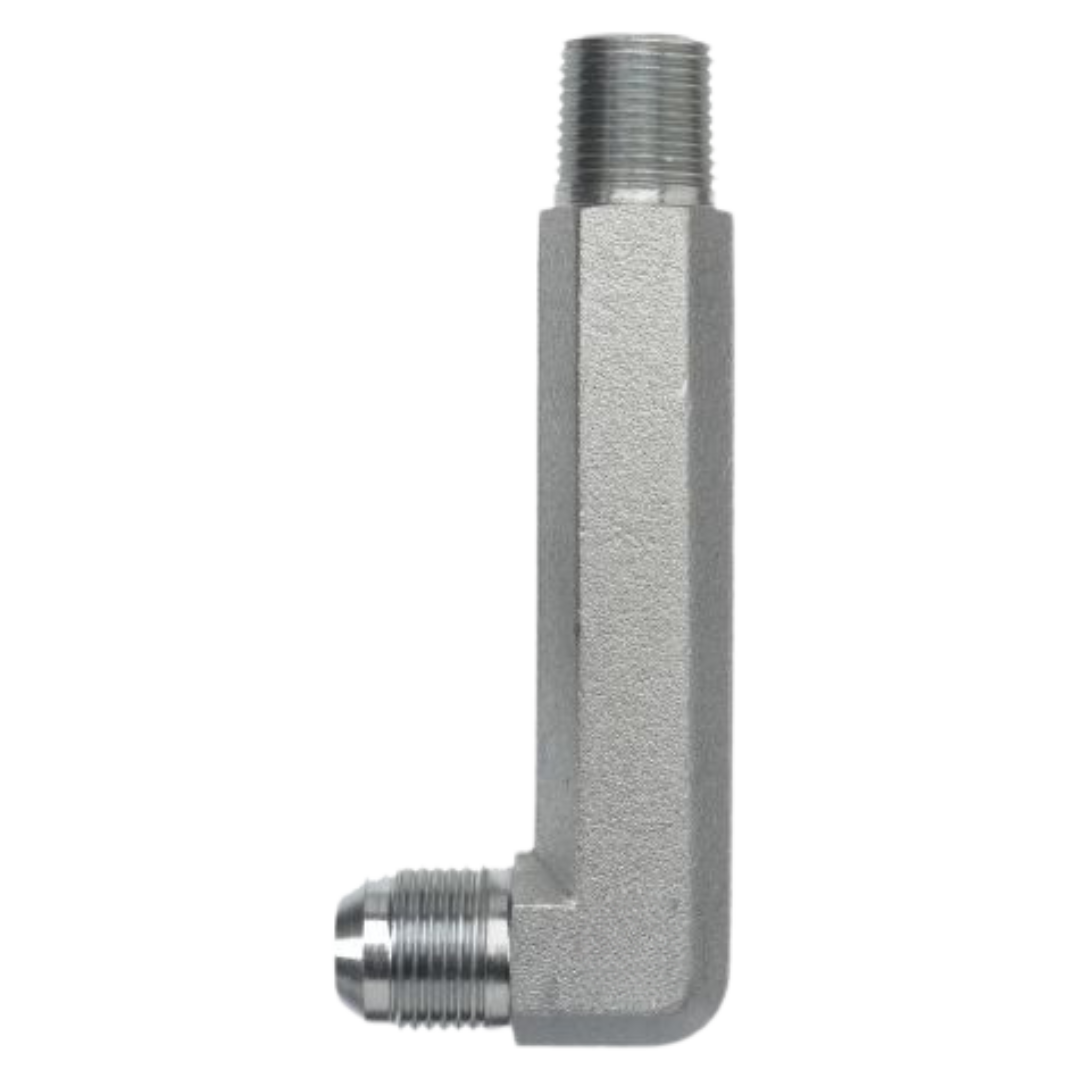

The Series 2501-LLL 90-Degree Angled Male JIC x Male NPT Extra Extra Long Rigid adapters are high-strength carbon steel fittings designed for secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle and an extra extra-long design, making them ideal for applications where additional length is necessary to ensure a proper connection in tight or hard-to-reach spaces. One end is equipped with a male JIC (Joint Industry Council) 37° flare connection, while the other end has a male NPT (National Pipe Tapered) thread, which creates a reliable seal by deforming the tapered threads. Made from durable carbon steel, these adapters provide excellent performance, reliability, and corrosion resistance, making them perfect for high-pressure fluid power systems and demanding industrial applications. The Series 2501-LLL ensures long-lasting durability and efficient fluid transfer in a wide range of hydraulic setups.
