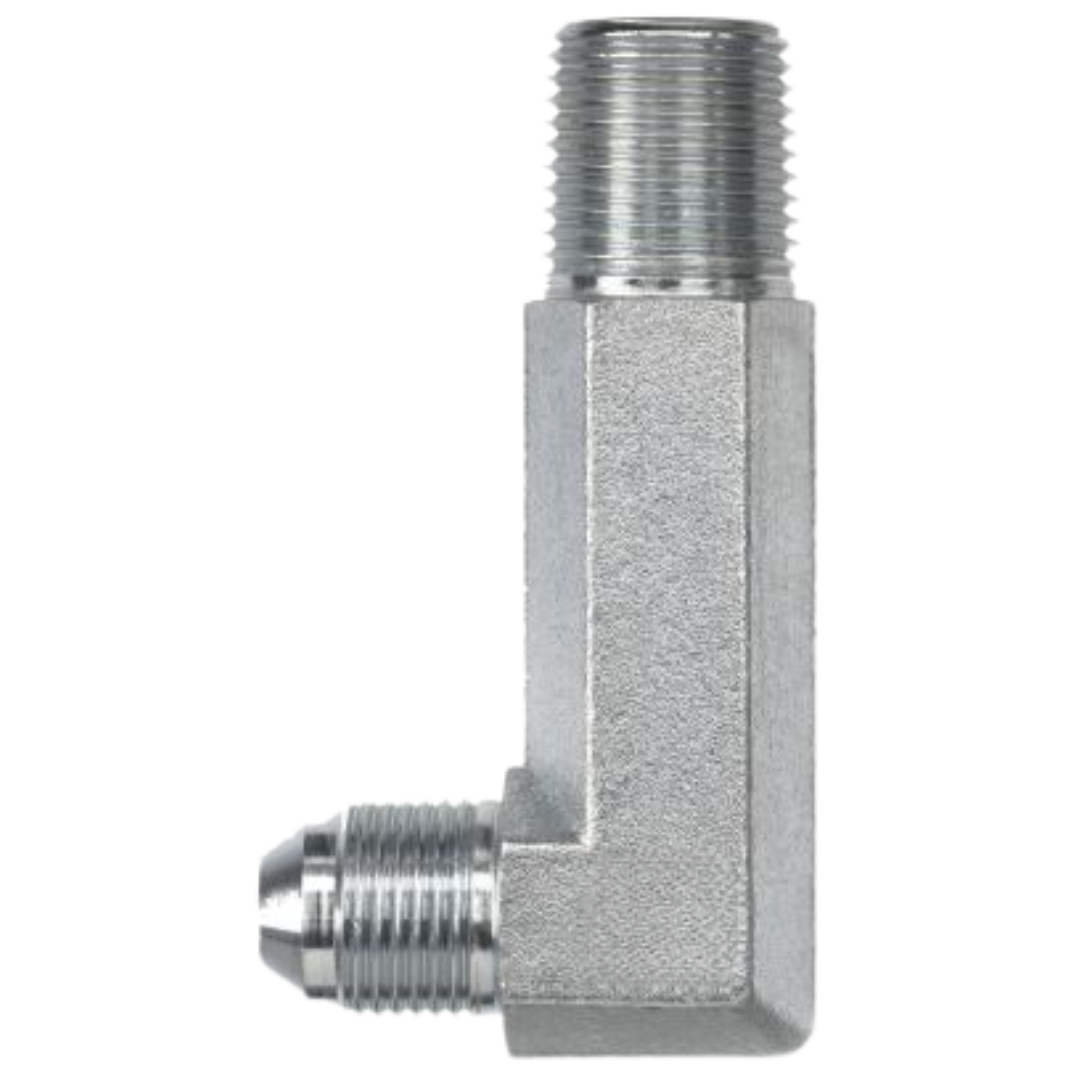

2501-LL-20-20-FG : OneHydraulics 90-Degree Steel Extra Long Adapter, 1-5/8-12 (-20) Male JIC x 1-1/4-11-1/2 (-20) Male NPT, 3000psi
2501-LL-20-20-FG : OneHydraulics 90-Degree Steel Extra Long Adapter, 1-5/8-12 (-20) Male JIC x 1-1/4-11-1/2 (-20) Male NPT, 3000psi
Roll over image to zoom in Click on image to zoom
2501-LL-20-20-FG : OneHydraulics 90-Degree Steel Extra Long Adapter, 1-5/8-12 (-20) Male JIC x 1-1/4-11-1/2 (-20) Male NPT, 3000psi2501-LL-20-20-FG : OneHydraulics 90-Degree Steel Extra Long Adapter, 1-5/8-12 (-20) Male JIC x 1-1/4-11-1/2 (-20) Male NPT, 3000psi

2501-LL-20-20-FG : OneHydraulics 90-Degree Steel Extra Long Adapter, 1-5/8-12 (-20) Male JIC x 1-1/4-11-1/2 (-20) Male NPT, 3000psi

Save $68.64
OneHydraulicsSKU: 2501-LL-20-20-FG
1-3 Days
Price:
$64.22 $132.86

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Houston, Texas or Dallas, Texas or Cleveland, Ohio
Material Steel
Shape 90-Degree
Pressure Rating 3000
Series 2501-LL-FG
Country of Manufacture China
Side 1 Gender MALE
Side 1 Size 1-5/8-12 (-20)
Side 1 Type JIC
Side 2 Gender MALE
Side 2 Size 1-1/4-11-1/2 (-20)
Side 2 Type NPT

Description

The Series 2501-LL 90-Degree Angled Male JIC x Male NPT Extra Long Rigid adapters are durable carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle and an extra-long design, making them ideal for applications that require additional length to ensure a proper and flexible connection, especially in tight or hard-to-reach spaces. One end has a male JIC (Joint Industry Council) 37° flare connection, while the other end features a male NPT (National Pipe Tapered) thread, creating a tight seal through the deformation of the tapered threads. Made from high-strength carbon steel, these adapters offer excellent performance and reliability in high-pressure fluid power systems, providing long-lasting durability for demanding industrial applications. The Series 2501-LL is perfect for ensuring robust connections in a variety of hydraulic setups.
