Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Shape | Straight |
| Pressure Rating | 7200 |
| Series | 2406 |

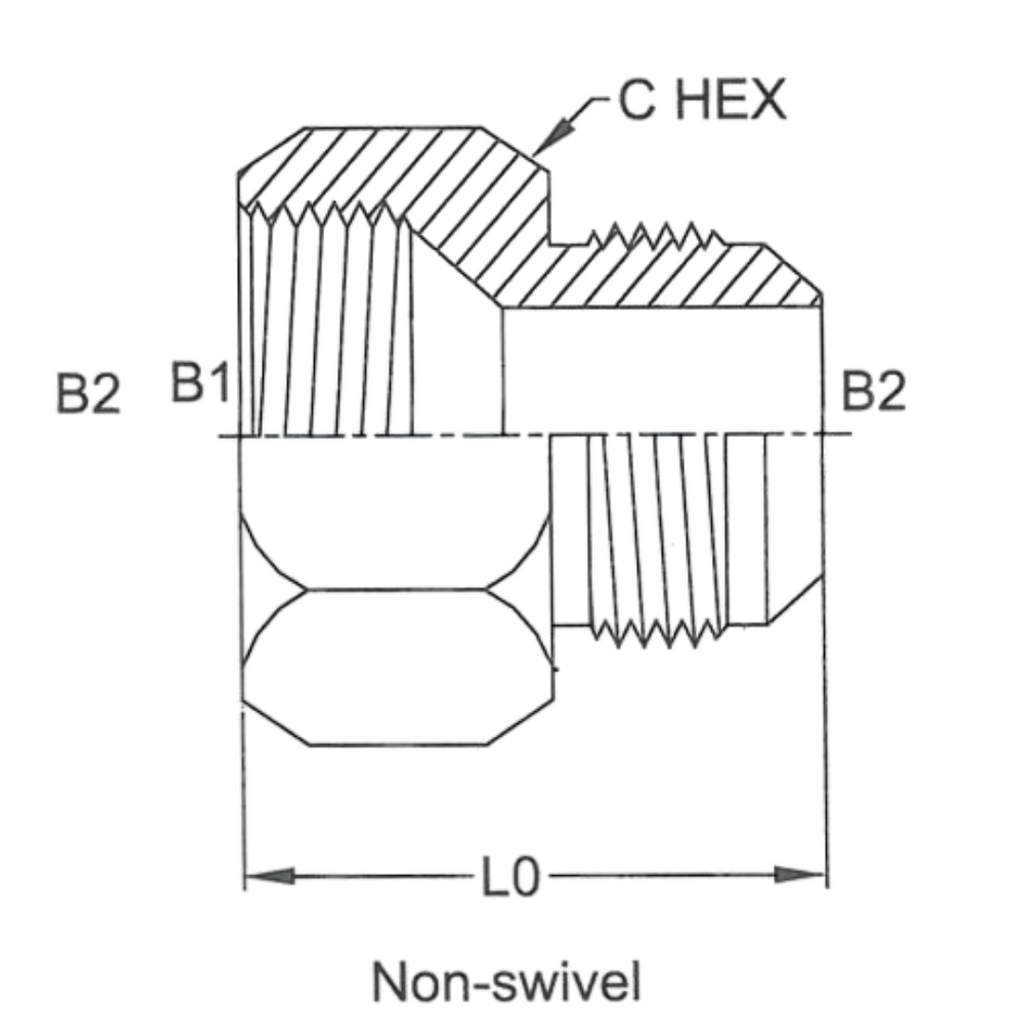

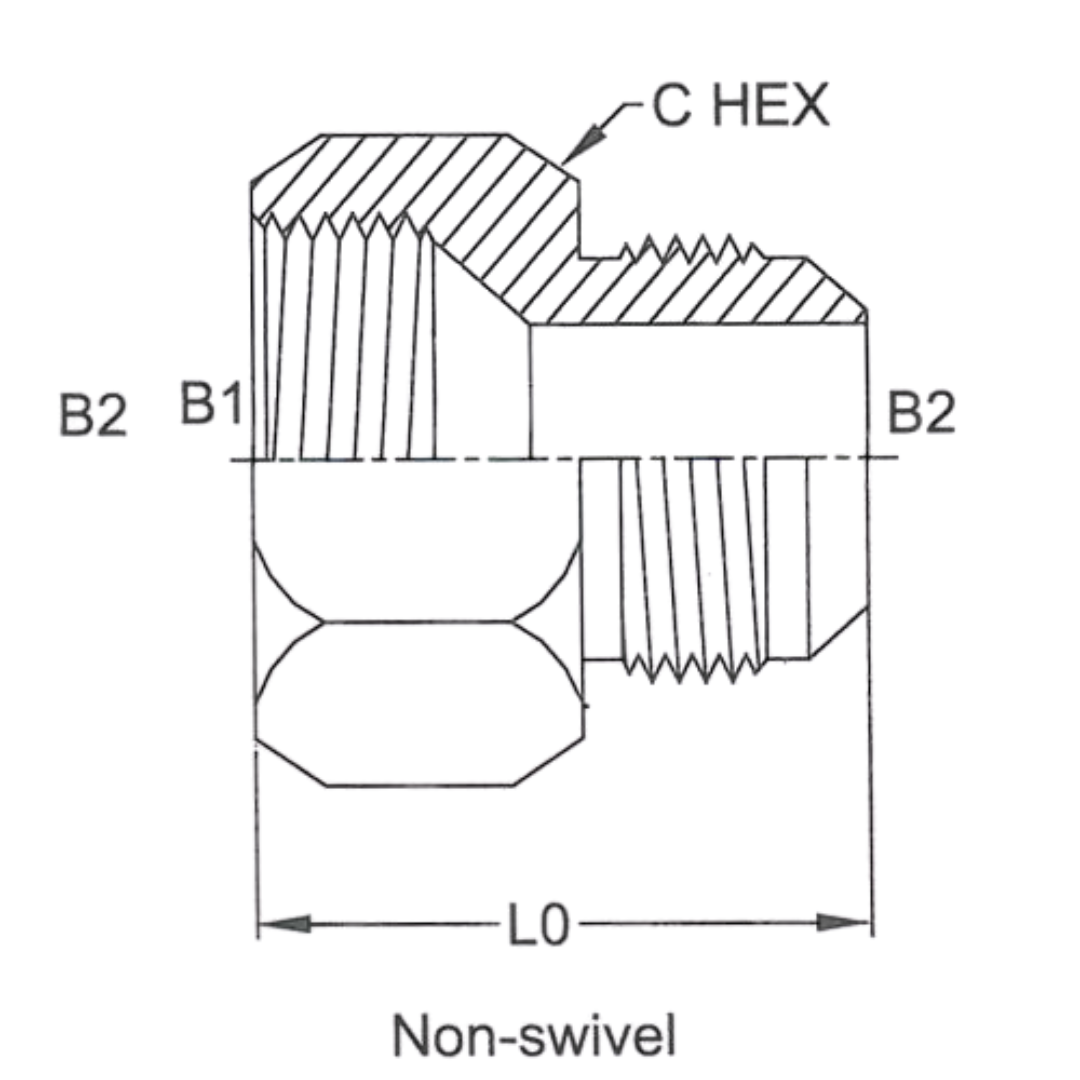

| Special Dims | L Length 1.19, C Hex 0.625, B2 Drill 0.234, B1 Tube OD 5/16, B2 Tube OD 3/8, B1 SAE 37-Degree 1/2-20, B2 SAE 37-Degrees 9/16-18 |
| Country of Manufacture | China |
| Length | 1.19 |
| Side 1 Gender | FEMALE |
| Side 1 Size | 1/2-20 (-05) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | JIC |
Description
Our Series 2406-SS Straight Male JIC x Female JIC Swivel hydraulic adapters, often referred to as straight reducers, are vital components in hydraulic systems that facilitate seamless connections between hoses or components and fittings. Constructed from durable stainless steel, these adapters feature a male JIC end that securely connects to a female JIC fitting, ensuring efficient fluid transfer while minimizing pressure loss. Their innovative swivel design allows for easy installation and alignment, providing a secure fit without the risk of twisting hoses. Ideal for a wide range of hydraulic applications, Series 2406-SS adapters enhance system performance and reliability, making them a preferred choice for professionals in the fluid power industry. It is important to note that SAE J514 JIC/37° hydraulic connections are common in most fluid power systems, with both male and female components featuring 37° seats. The seal is achieved by establishing contact between the male flared and female coned seat, creating a robust mechanical connection.
