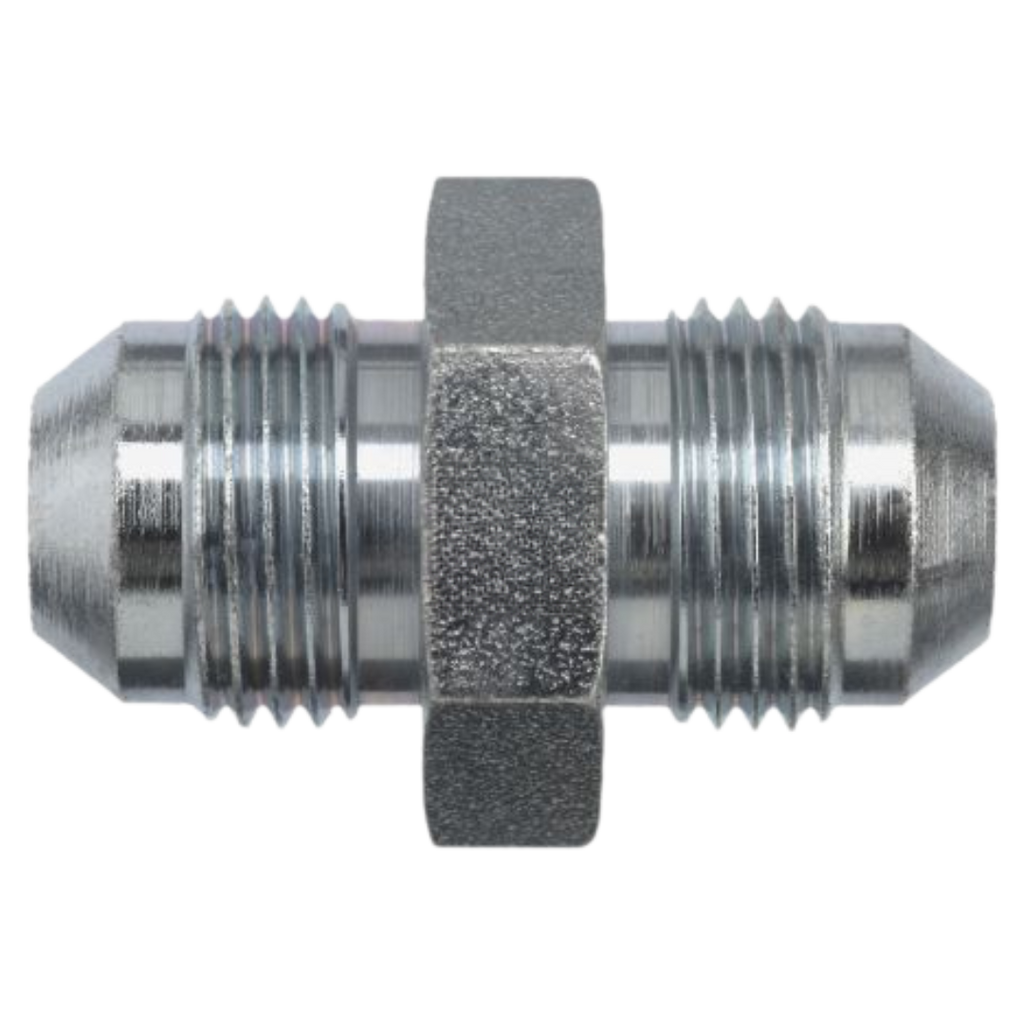

2403-LH-24-24-SS : OneHydraulics Straight Stainless Large Hex Adapter, 1-7/8-12 (-24) Male JIC x 1-7/8-12 (-24) Male JIC, 3600psi
2403-LH-24-24-SS : OneHydraulics Straight Stainless Large Hex Adapter, 1-7/8-12 (-24) Male JIC x 1-7/8-12 (-24) Male JIC, 3600psi
Roll over image to zoom in Click on image to zoom
2403-LH-24-24-SS : OneHydraulics Straight Stainless Large Hex Adapter, 1-7/8-12 (-24) Male JIC x 1-7/8-12 (-24) Male JIC, 3600psi2403-LH-24-24-SS : OneHydraulics Straight Stainless Large Hex Adapter, 1-7/8-12 (-24) Male JIC x 1-7/8-12 (-24) Male JIC, 3600psi

2403-LH-24-24-SS : OneHydraulics Straight Stainless Large Hex Adapter, 1-7/8-12 (-24) Male JIC x 1-7/8-12 (-24) Male JIC, 3600psi

Save $263.02
OneHydraulicsSKU: 2403-LH-24-24-SS
1-3 Days
Price:
$246.05 $509.07

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Houston, Texas or Dallas, Texas or Cleveland, Ohio
Material Stainless Steel
Shape Straight
Pressure Rating 3600
Series 2403-LH
Country of Manufacture China
Side 1 Gender MALE
Side 1 Size 1-7/8-12 (-24)
Side 1 Type JIC
Side 2 Gender MALE
Side 2 Size 1-7/8-12 (-24)
Side 2 Type JIC

Description

Our Series 2403-LH-SS Large Hex Straight Male JIC x Male JIC hydraulic adapters, crafted from high-quality stainless steel, are designed to provide superior performance and durability in fluid power systems. These adapters feature a larger hex than the standard Series 2403, allowing for easier installation and increased torque when connecting two male JIC fittings. JIC (Joint Industry Council) fittings, defined by SAE J514, are known for their 37-degree flare seating surface and parallel threads, ensuring a secure, leak-free connection. The male JIC ends create a strong mechanical seal when the flared seats meet, enabling efficient fluid transfer. Ideal for high-pressure and demanding hydraulic applications, the Series 2403-LH-SS adapters are an excellent choice for professionals seeking a reliable, long-lasting solution.
