Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Brass |
| Shape | Straight |
| Pressure Rating | 3300 |
| Series | 2403 |
| Special Dims | L Length 1.17, C Hex 0.438, B1 Drill 0.062, B2 Drill 0.062, B1 Tube OD 1/8, B2 Tube OD 1/8, B1 SAE 37-Degree 5/16-24, B2 SAE 37-Degrees 5/16-24 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 5/16-24 (-02) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 5/16-24 (-02) |
| Side 2 Type | JIC |
Description

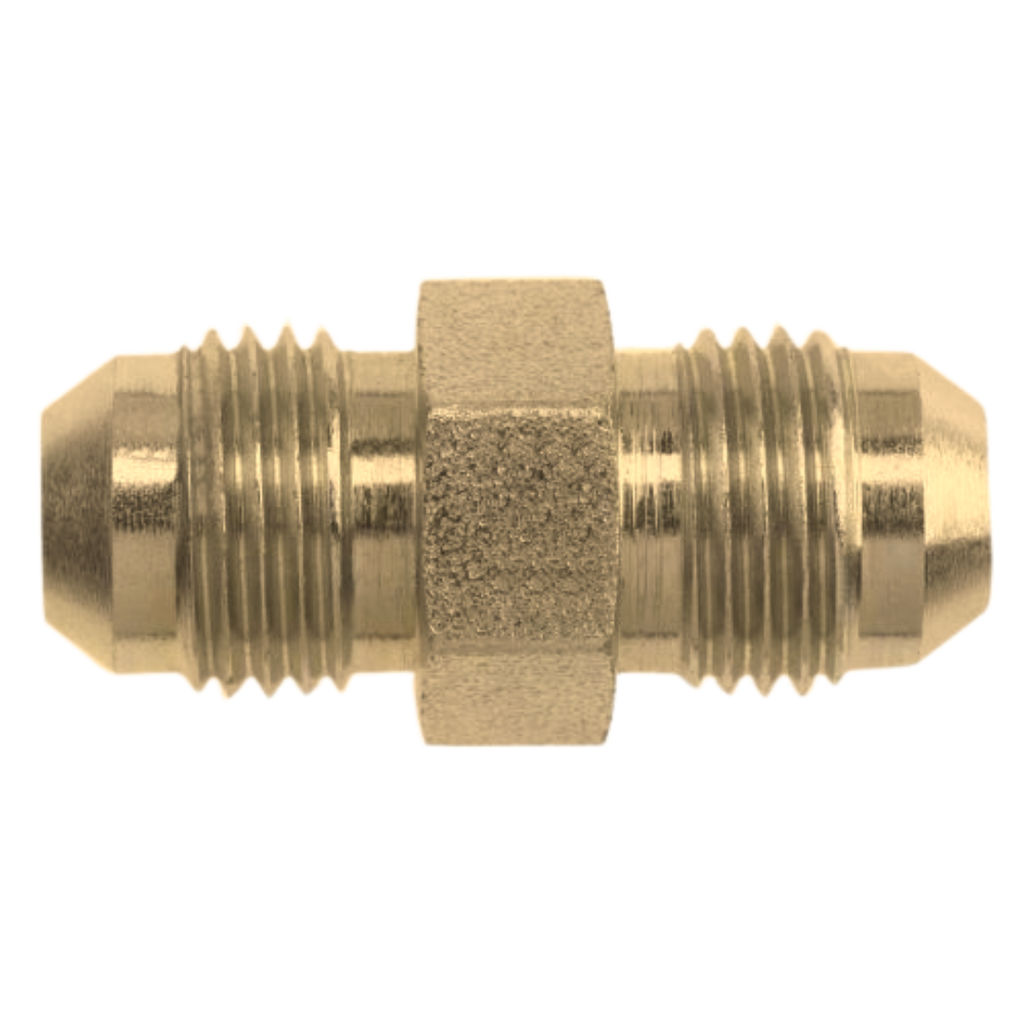

Our Series 2403-B Straight Male JIC x Male JIC hydraulic adapters, made from durable brass, are critical components for creating reliable connections between two male JIC fittings in hydraulic systems. These adapters feature male JIC ends on both sides, facilitating straightforward installation and optimal fluid flow. JIC (Joint Industry Council) fittings, defined by SAE J514, are compression fittings with a 37-degree flare seating surface and parallel threads, commonly used in fluid power systems for their robustness and leak-free performance. The connection is formed by the contact between the male flared seats, ensuring a solid mechanical seal for efficient fluid transfer. Ideal for a wide range of hydraulic applications, the Series 2403-B brass adapters offer a cost-effective and dependable solution for professionals seeking reliable and efficient fluid power system components.
