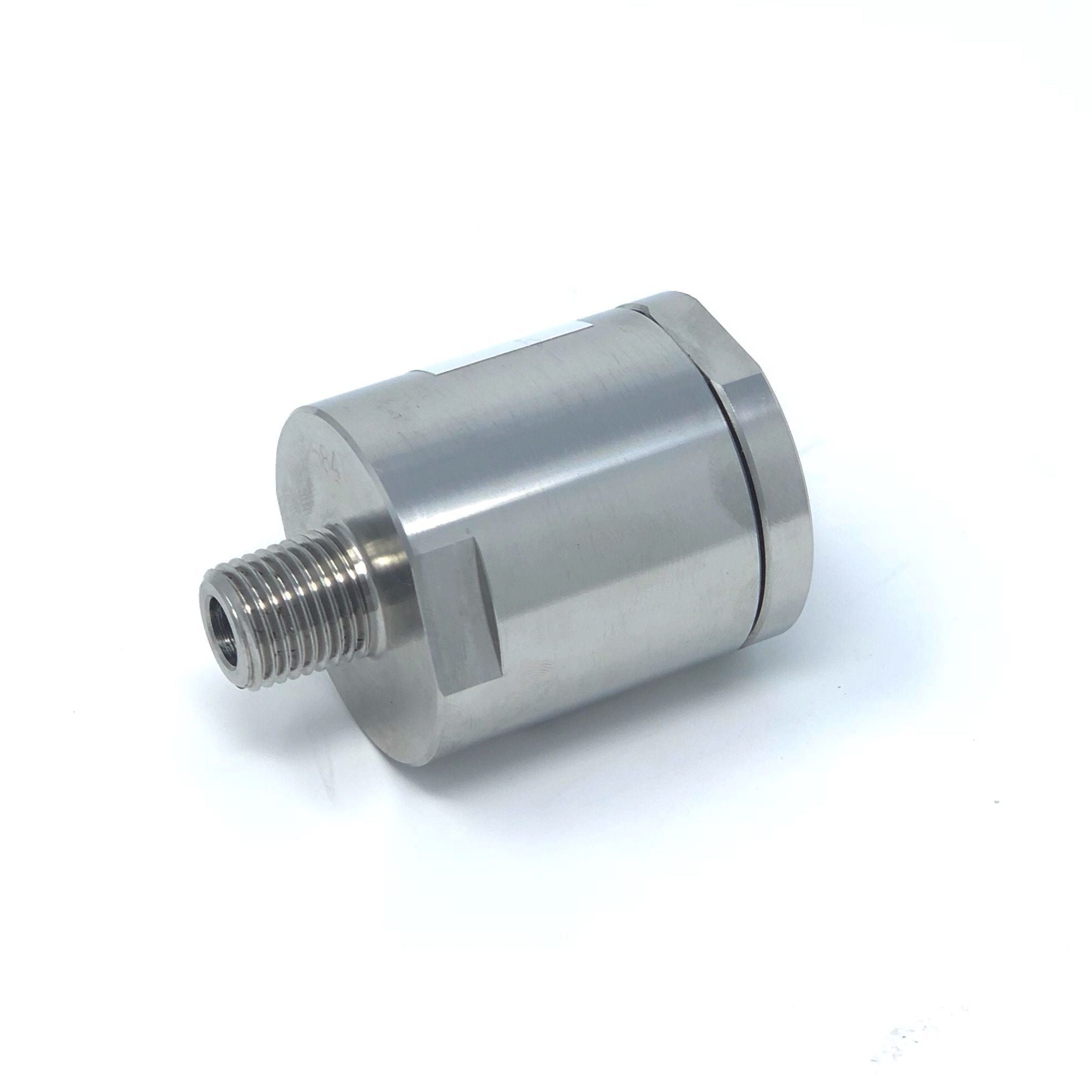

22T-6S6S-10SN : Chase High Pressure Inline Filter, 3000psi, #6 SAE (3/8") , 10 Micron, No Visual Indicator, No Bypass
Roll over image to zoom in Click on image to zoom
22T-6S6S-10SN : Chase High Pressure Inline Filter, 3000psi, #6 SAE (3/8") , 10 Micron, No Visual Indicator, No Bypass

22T-6S6S-10SN : Chase High Pressure Inline Filter, 3000psi, #6 SAE (3/8") , 10 Micron, No Visual Indicator, No Bypass

Chase FiltersSKU: 22T-6S6S-10SN
2-3 Weeks
Price:
$686.40

Product Details

Data Sheet Download Datasheet
Usually Ships Within 2-3 Weeks
Factory Location Hampton, Virginia
Material 316 Stainless Steel
Port Size #6 SAE (3/8")
Flow Rating 2.5
Micron 10 Micron
Replacement Elements 22E-10S
O Ring Seals Buna
Valve Options Without Bypass Valve
Pressure Rating 3000
Country of Manufacture United States
Height 1.49
Length 1.75
Width 1.49
Weight 0

Description

The 22-Series In-Line Filters from Chase Filter are rated for operating pressures up to 3,000psi. These filters are made of 316 Stainless Steel Construction and their stainless steel wire mesh discs are precision pleated for strength and an increased effective filtration area. They are also ideal for applications with limited space.
