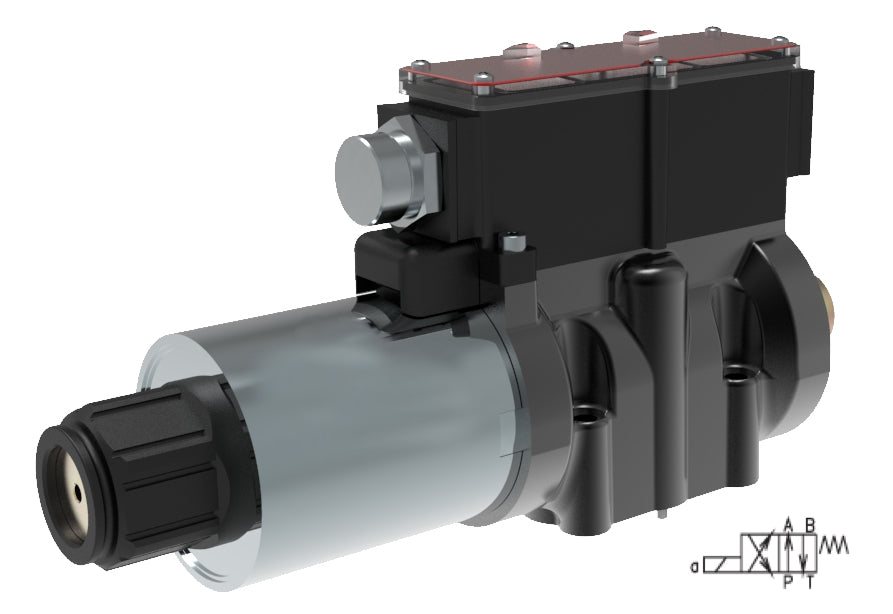

RPEW4-102R11/12060EW1R51 : Argo DCV, D05, 37GPM, 5100psi, 2P4W, 120 VAC, DIN, Spring Return, PA and BT Neutral
Roll over image to zoom in Click on image to zoom
RPEW4-102R11/12060EW1R51 : Argo DCV, D05, 37GPM, 5100psi, 2P4W, 120 VAC, DIN, Spring Return, PA and BT Neutral

RPEW4-102R11/12060EW1R51 : Argo DCV, D05, 37GPM, 5100psi, 2P4W, 120 VAC, DIN, Spring Return, PA and BT Neutral

Argo-HytosSKU: 21940800
3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
0
Price:
$353.42

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
Factory Stock 0
Factory Location Bowling Green, Ohio
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D05 (NG10)
Flow Rating 37
Pressure Rating 5100
Voltage 120 VAC
Actuation Type Solenoid Operated
Solenoid Electrical Connection Wiring Box with Lights
Spool Configuration P to A and B to T in Neutral Position, R11
Positions 2-Position
Way 4-Way
Country of Manufacture Czech Republic
Height 4.8
Length 8.68
Width 2.69
Weight 8.6

Description

The Argo-Hytos RPEW4-06 is a direct acting directional control valve with suplate mounting interface according to ISO 4401. This valve has a wire box for solenoid electrical connection with cable gland, 1/2" PT. Optional 3-pin or 5-pin connector. The AC option allows for the power supply with a rectifier bridge build in the wire box. A wide range of interchangeable spools and manual overrides is available.
