20AAX4L2G : DP Winch, 20,000lb Bare Drum Pull, Base only, Air/Hyd Kickout, CCW, Less than 25GPM Motor, 5.5" Barrel x 7.19" Length x 12.75" Flange

DP WinchSKU: 20AAX4L2G
6-8 Weeks

Price:
Sale price$7,727.77

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma

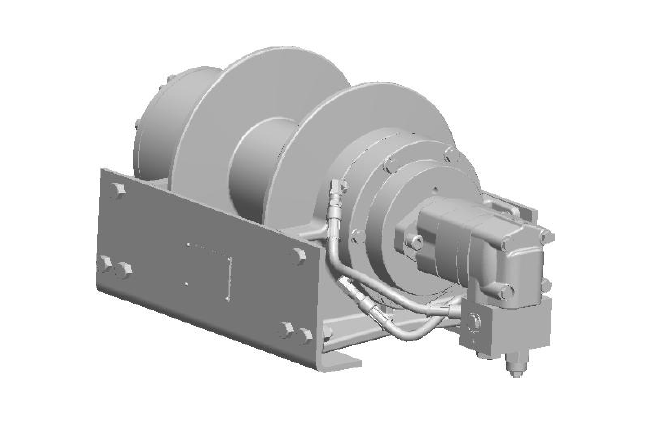

Solid Model

Click here to download

Service Manual Download

Click here to download

Hydraulic Motor Pressure 2600psi
Country of Manufacture United States
Height 12.91
Length 29.03
Width 14.13
Weight 293

Description

With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.

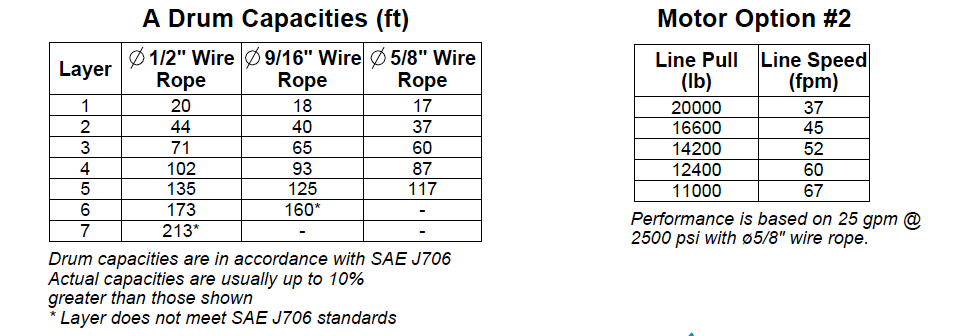

* 20,000lbs. capacity winch storing 294 ft. of 9/16” dia. rope

* Base only

* Air/Hyd Kickout (A ‘kickout’ is a clutch mechanism that engages an input shaft to turn your winch. An Air/Hydraulic clutch is one that is pneumatically or hydraulically activated. This feature requires 60-400psi air or hydraulic pressure, 1/4" NPT)

* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when paying in)

* Low Flow ~ Under 25 GPM

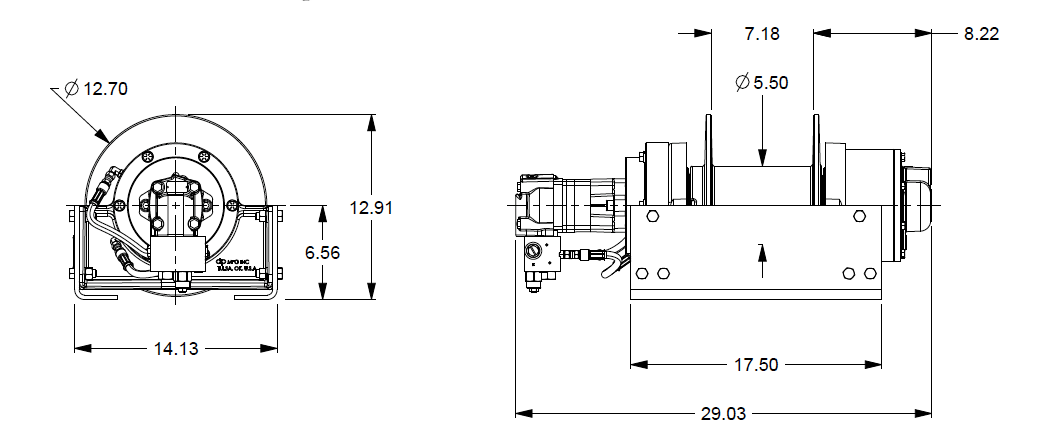

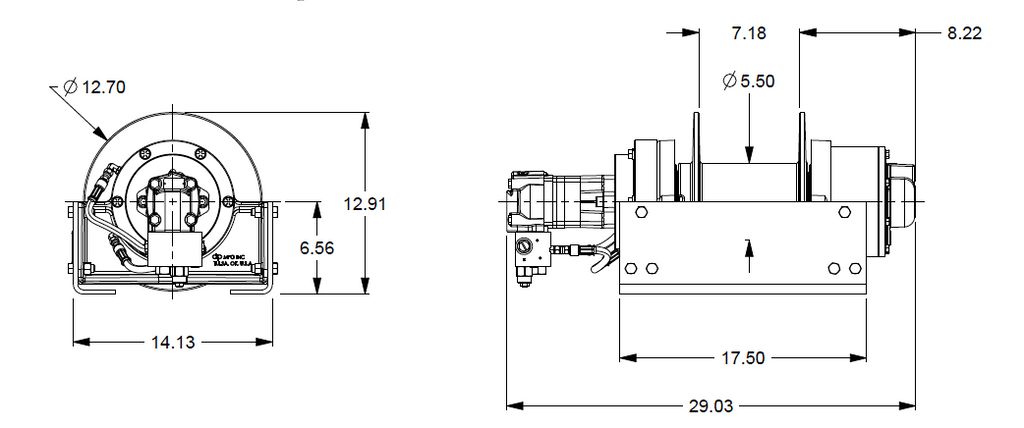

* 5.5" Barrel x 7.19" Length x 12.75" Flange
