|Data Sheet||Download Datasheet|
|Usually Ships Within||Same Day|
|Factory Location||Bowling Green, Ohio|
|Solid Model||Click here to download|
|Valve Type||Subplate/Manifold Mounted Valve|
|Valve Interface||D03 (NG6)|
|Actuation Type||Solenoid Operated|
|Solenoid Electrical Connection||Wiring Box with Lights|
|Spool Configuration||Tandem Spool, P to T with A & B Blocked in Neutral|
|Country of Manufacture||Czech Republic|

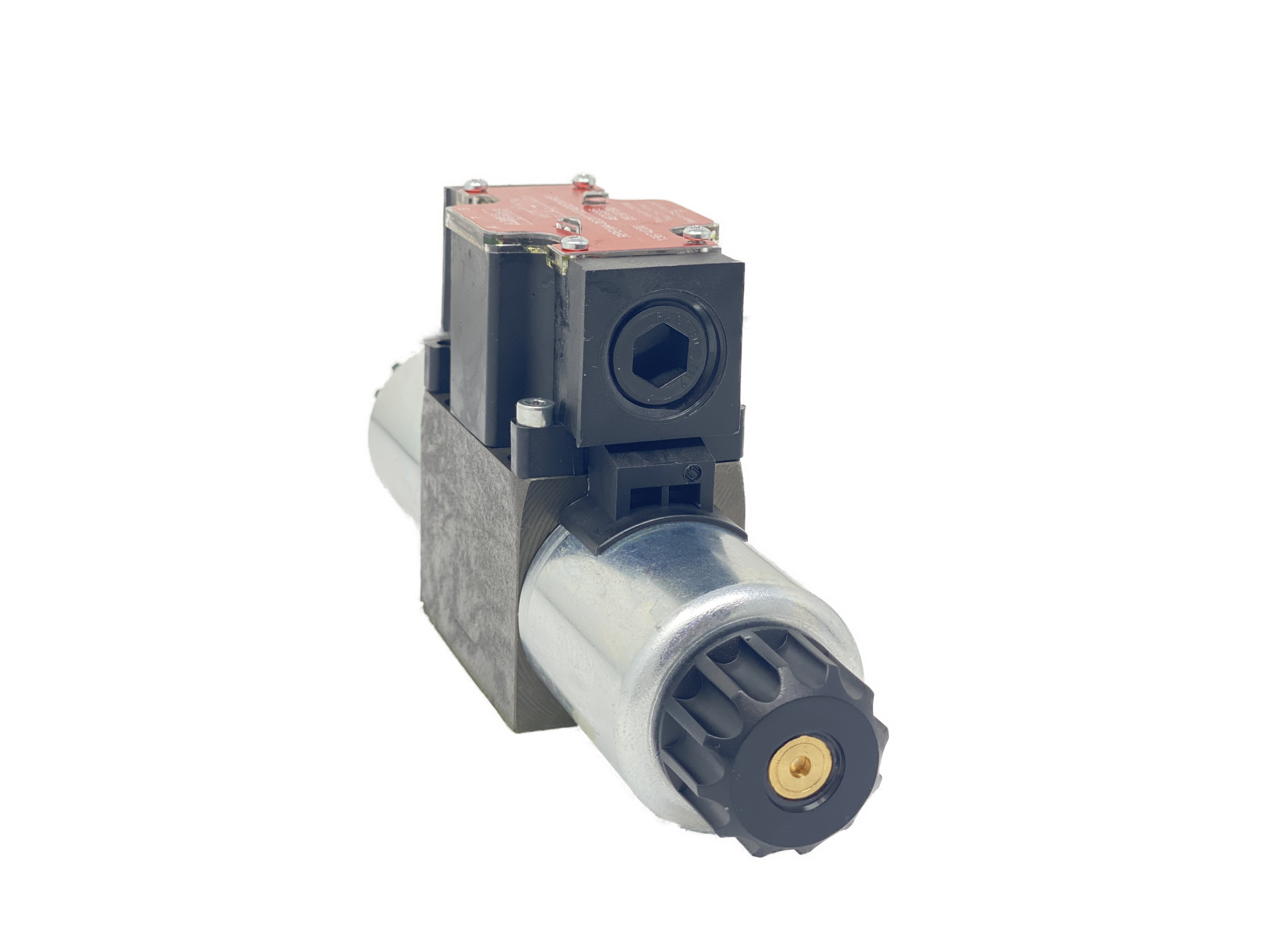

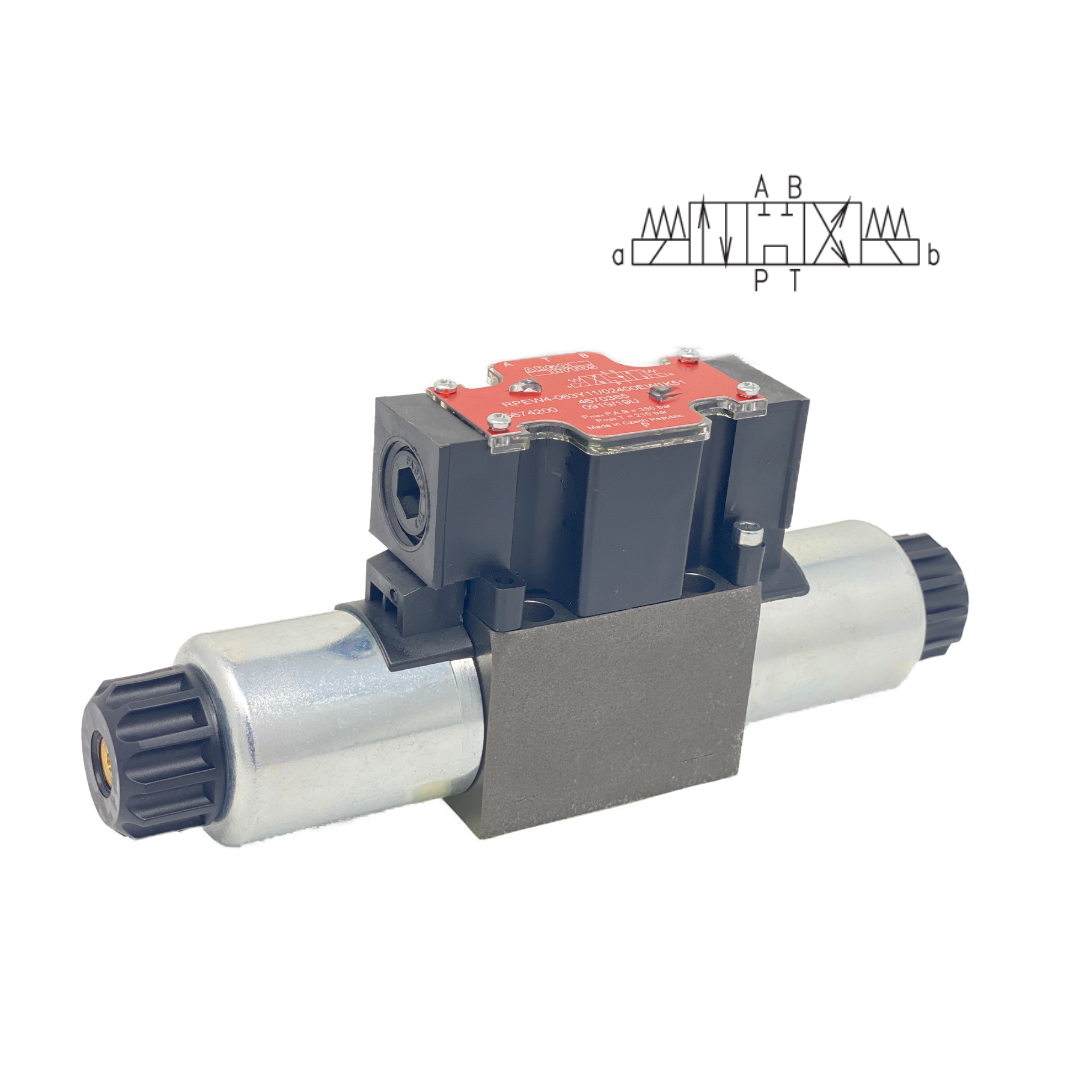

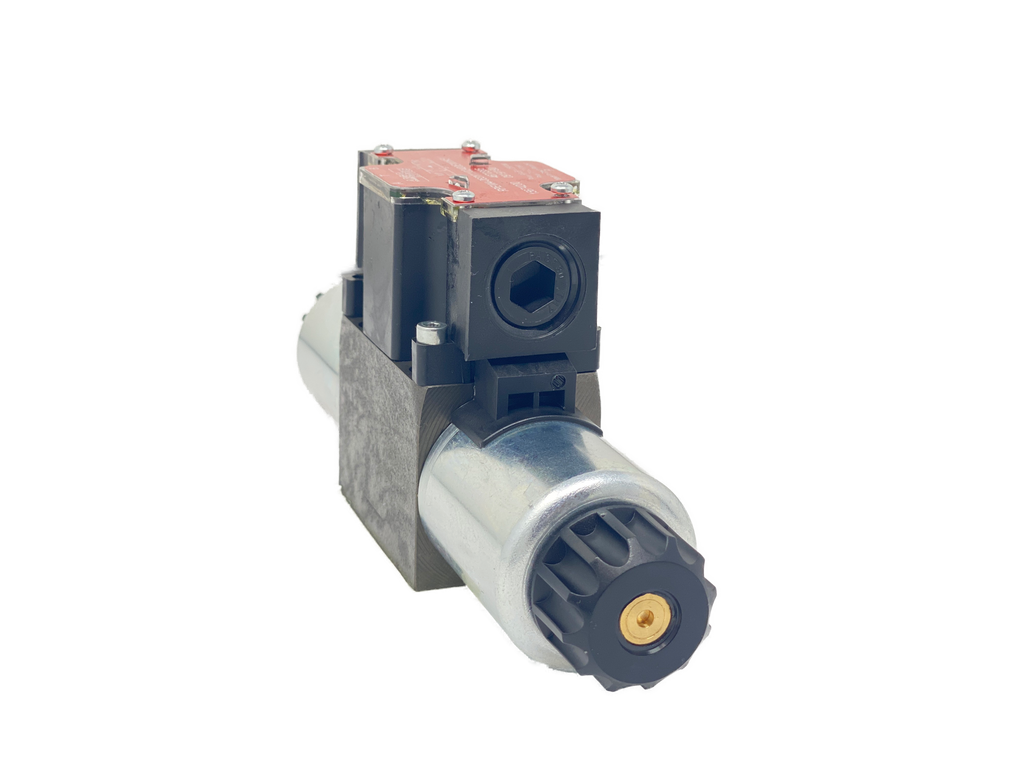

Direct acting, directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03). High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop. Five chamber housing design with reduced hydraulic power dependence on fluid viscosity. The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge. Wide range of solenoid electrical terminal versions, interchangeable spools and manual overrides available. The coil is fastened to the core tube with a retaining nut and can be rotated by 360-degrees to suit the available space. In the standard version, the valve housing is phosphated.
