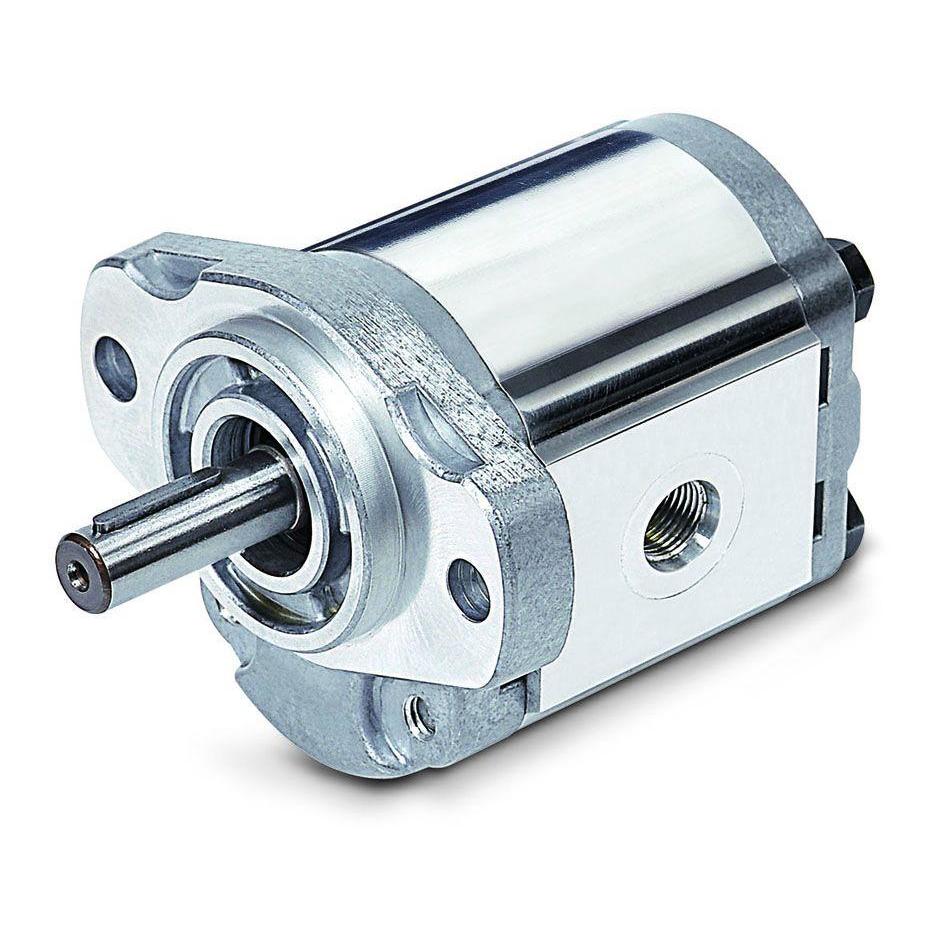

1AG3U13L : Honor Gear Pump, CCW Rotation, 13.5cc (0.82in3), 6.42 GPM, 2300psi, 2500 RPM, SAE ORB-10 In (7/8"), SAE ORB-8 Out (3/4"), 1/2" Bore x 1/8" Key, SAE AA 2-Bolt Mount

HonorSKU: 1AG3U13L

10-12 Weeks

Product Details

Data Sheet Download Datasheet
Usually Ships Within 10-12 Weeks
Factory Location Corpus Christi, Texas
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 1/2" Bore x 1/8" Key
Shaft Type Keyed
Port Location Side Ported
Pressure Rating 2300
Rotation Counter-Clockwise
Displacement 13.5
Gpm At 1800 Rpm 6.42
Max Speed 2500 RPM
Inlet Port SAE ORB-10 In (7/8")
Outlet Port SAE ORB-8 Out (3/4")
Mount SAE AA 2-Bolt
Country of Manufacture Taiwan
Height 3.307
Length 4.591
Width 4.016
Weight 3.72
