|Data Sheet||Download Datasheet|
|Usually Ships Within||10-12 Weeks|
|Factory Location||Corpus Christi, Texas|
|Material||Aluminum body, Aluminum Flange and Cover|
|Shaft Size||1/2" Bore x 1/8" Key, Extended Shaft|
|Port Location||Side Ported|
|Gpm At 1800 Rpm||3.52|
|Max Speed||2500 RPM|
|Inlet Port||#8 SAE (1/2")|
|Outlet Port||#6 SAE (3/8")|
|Mount||SAE AA 2-Bolt|
|Country of Manufacture||Taiwan|

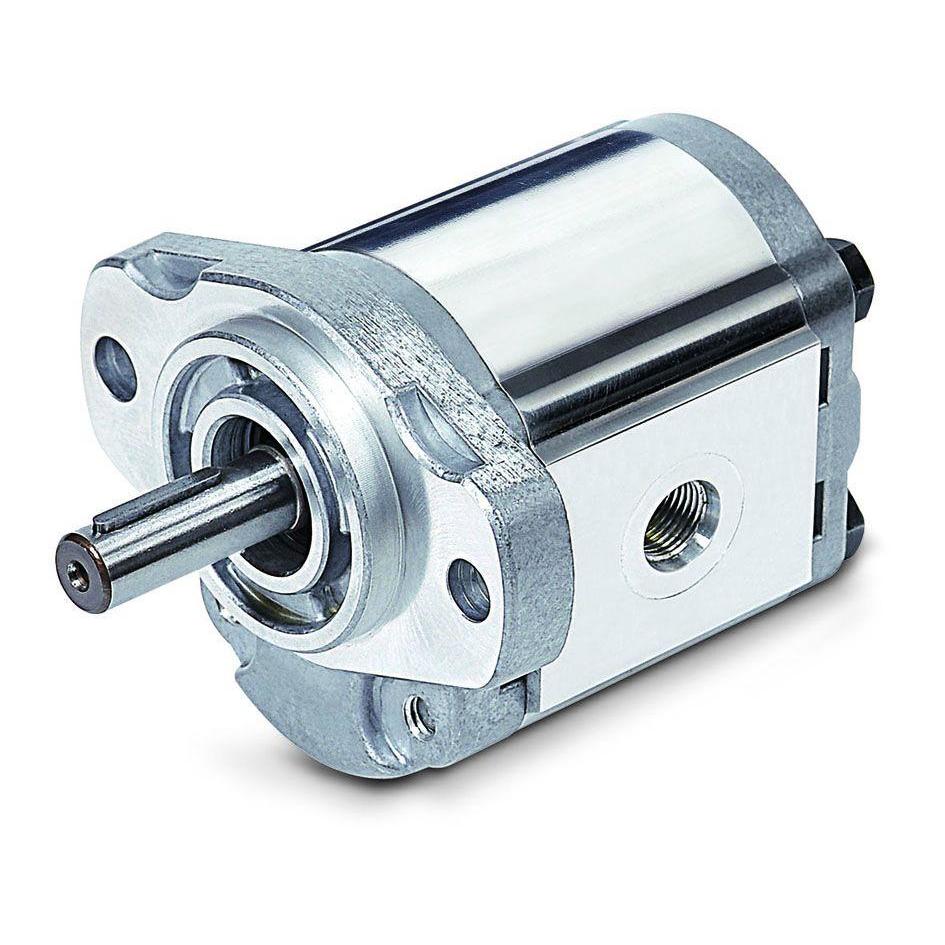

The Honor Gear Pump Group 1 Pumps are defined by the mounting flange and shaft end. Mounting flanges are available in SAE AA 2-bolt, US 4F-17 four-bolt, four-bolt European mounting flanges, and the 'thru bolt' front manifold discharge DC power pack design pump. Shaft ends can be keyed, spline, or tang, depending on your requirements. Displacements are available from 0.04 to 0.82 in3. Side ports are generally standard, but rear ports may be available upon request. If you need a pump in a configuration that isn't avaiable online, please give OneHydraulics a call and we'll be happy to help.
