SVDB-093 : Stauff, Desiccant Air Breather, Economy version, Female 0.75 (3/4") BSP

Save $9.47
StauffSKU: 1910003185
Same Day
1

Price:
Sale price$75.99 Regular price$85.46

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Canton, Michigan
Connection Size 3/4" BSP
Diameter 3.7
Desiccant style Disposable
For Use With AP-1 (Adapter Plate), TBA-075-B (Connection Adapter)
Adapter Plate Option No Adapter Plate
Indicator Option No Indicator
Drying Agent Standard
Check Valve Option No Check Valve
Country of Manufacture Netherlands
Length 7.05

Description

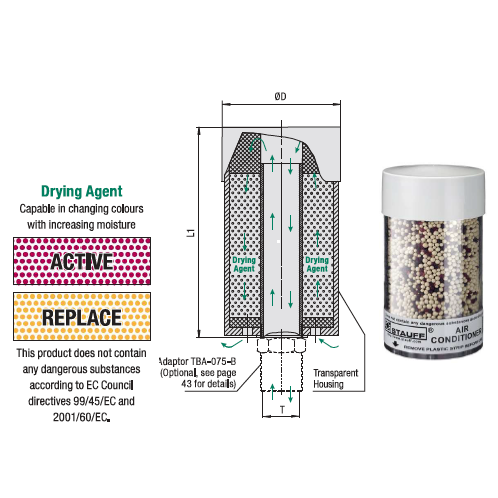

When a reservoir or gearbox breathes, air containing water vapor is ingested into the system. Temperature fluctuations will cause this water vapor to condense, which can speed up the oxidation of the fluid and lead to damage in the system. Desiccant SVDB Air Breathers are the light-weight alternative to the proven SDB series, offering an almost identical filtration and absorption performance. While inhaling, SDB desiccant air breathers first dry the air as it passes through the drying agent. The air then passes through a 3-micron air filter element to remove any solid contamination particles. As moisture is absorbed, the drying agent will gradually change from red to orange. When it is orange, replace the drying agent. If required, and optional visual indicator gives an indication of the status of the air breather. With the moisture absorved, the oxidation process can be decreased and the lifetime of the oil and machinery will be extended.
