Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Straight |
| Pressure Rating | 7500 |
| Series | 2403 |

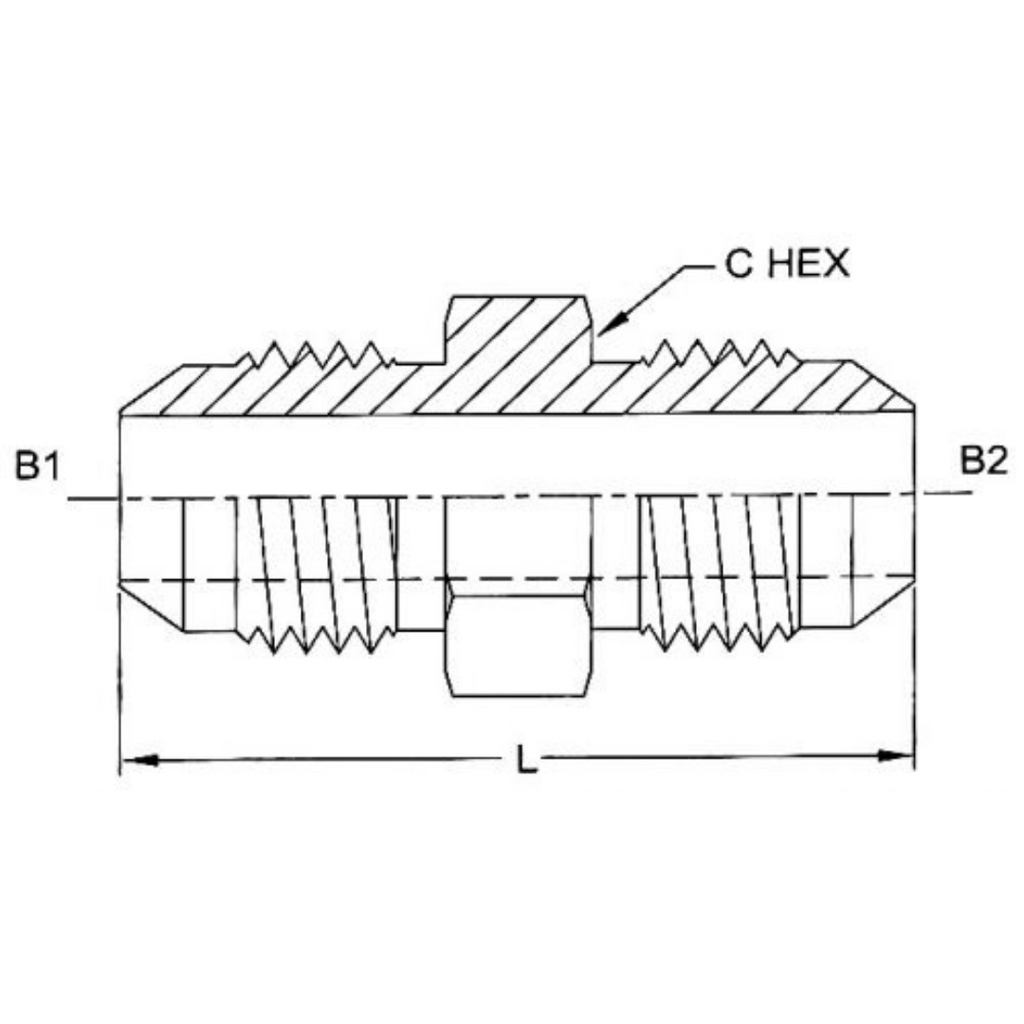

| Special Dims | L Length 1.17, C Hex 0.438, B1 Drill 0.062, B2 Drill 0.062, B1 Tube OD 1/8, B2 Tube OD 1/8, B1 SAE 37-Degree 5/16-24, B2 SAE 37-Degrees 5/16-24 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 5/16-24 (-02) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 5/16-24 (-02) |
| Side 2 Type | JIC |
Description

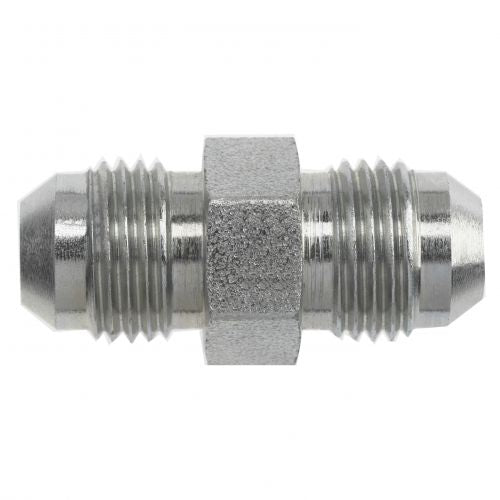

Our Series 2403 Straight Male JIC x Male JIC hydraulic adapters are essential components in hydraulic systems, designed for seamless connections between hoses or fittings. Made from durable carbon steel, this adapter features male JIC ends on both sides, allowing for easy connection to two male JIC fittings. JIC (Joint Industry Council) fittings, as defined by SAE J514, are compression fittings with a 37-degree flare seating surface and parallel threads, commonly used in fluid power systems for their reliability. The seal is created by establishing contact between the male flared seats, resulting in a robust mechanical connection that ensures efficient fluid transfer. Ideal for a variety of hydraulic applications, Series 2403 adapters enhance system performance and are a preferred choice for professionals in the fluid power industry seeking dependable solutions.
