Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | Straight |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 1-1/16-12 (-12) |
| Side 1 Type | JIC |
| Side 2 Gender | FLANGE |
| Side 2 Size | 3/4" (-12) |
| Side 2 Type | CODE 62 |
Description

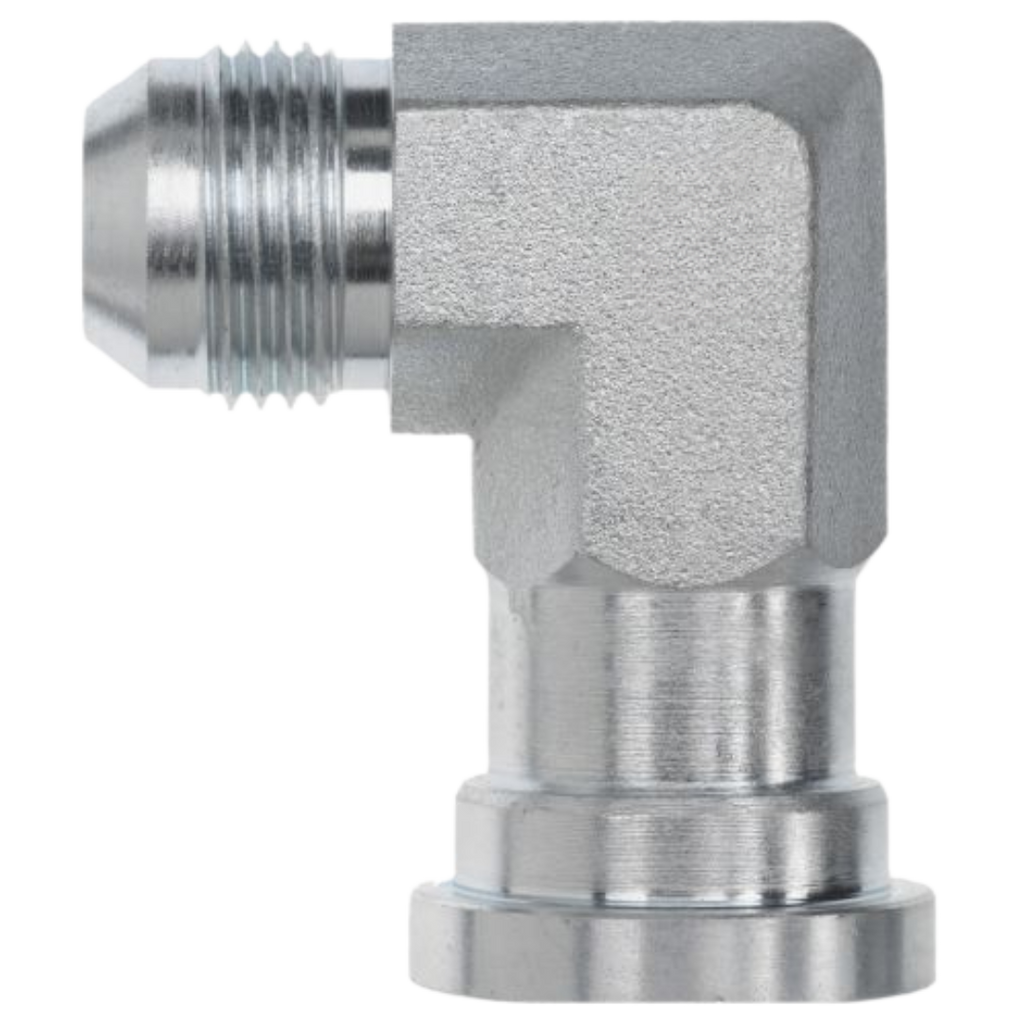

The Series 1804FG Forged 90-Degree Angled Male JIC x Code 62 Flange Head adapters, made from durable carbon steel, are designed for high-pressure hydraulic applications where secure, leak-free connections are essential. These adapters feature a 90-degree angle, allowing for efficient routing of hoses or pipes in confined spaces. The male JIC (Joint Industry Council) end uses a 37-degree flare to provide a tight seal when connected to compatible female JIC fittings, ensuring a reliable connection. The Code 62 flange end offers a flat-face design with bolt holes, commonly used in systems that require higher pressure ratings compared to the similar but lower-pressure Code 61 flanges. These adapters are ideal for maintaining system integrity and optimizing fluid flow in demanding hydraulic systems.
