Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | 45-Degrees |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 1-5/16-12 (-16) |
| Side 1 Type | JIC |
| Side 2 Gender | FLANGE |
| Side 2 Size | 1" (-16) |
| Side 2 Type | CODE 61 |
Description

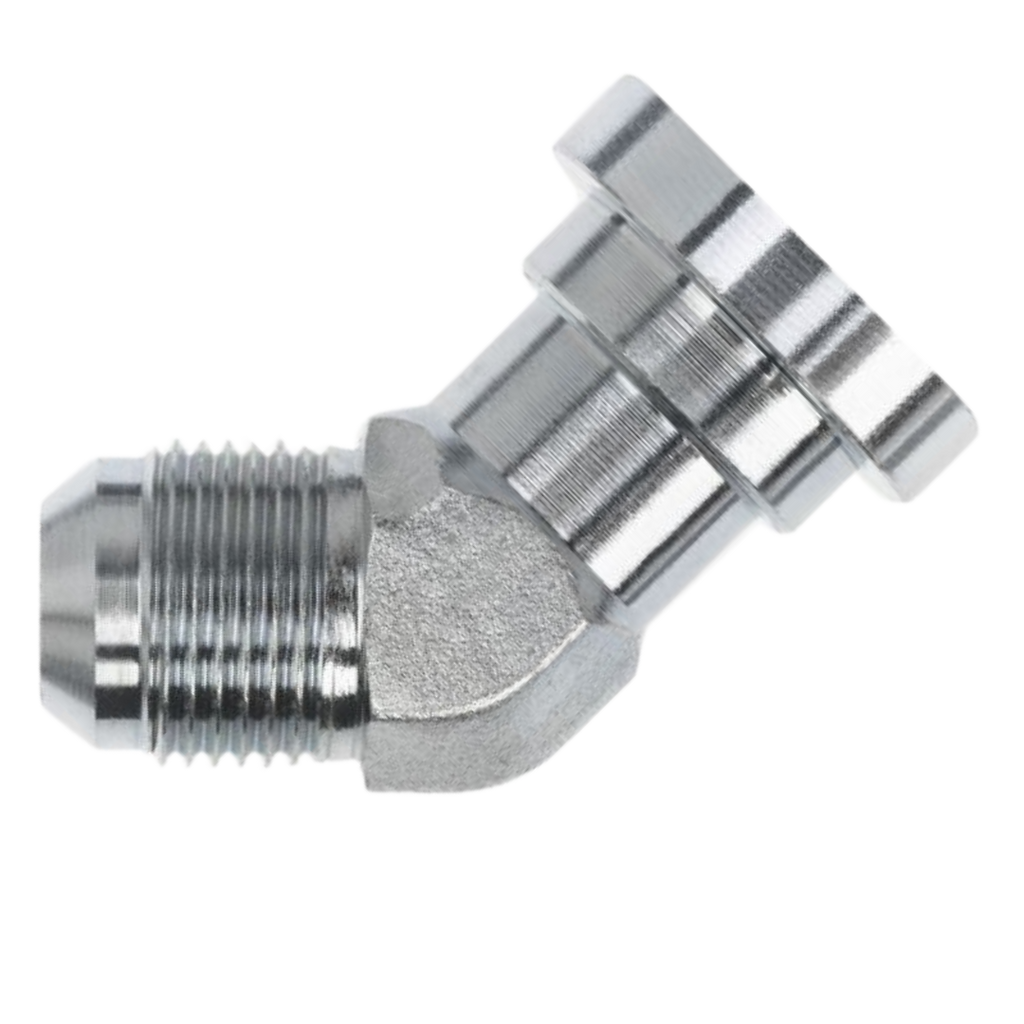

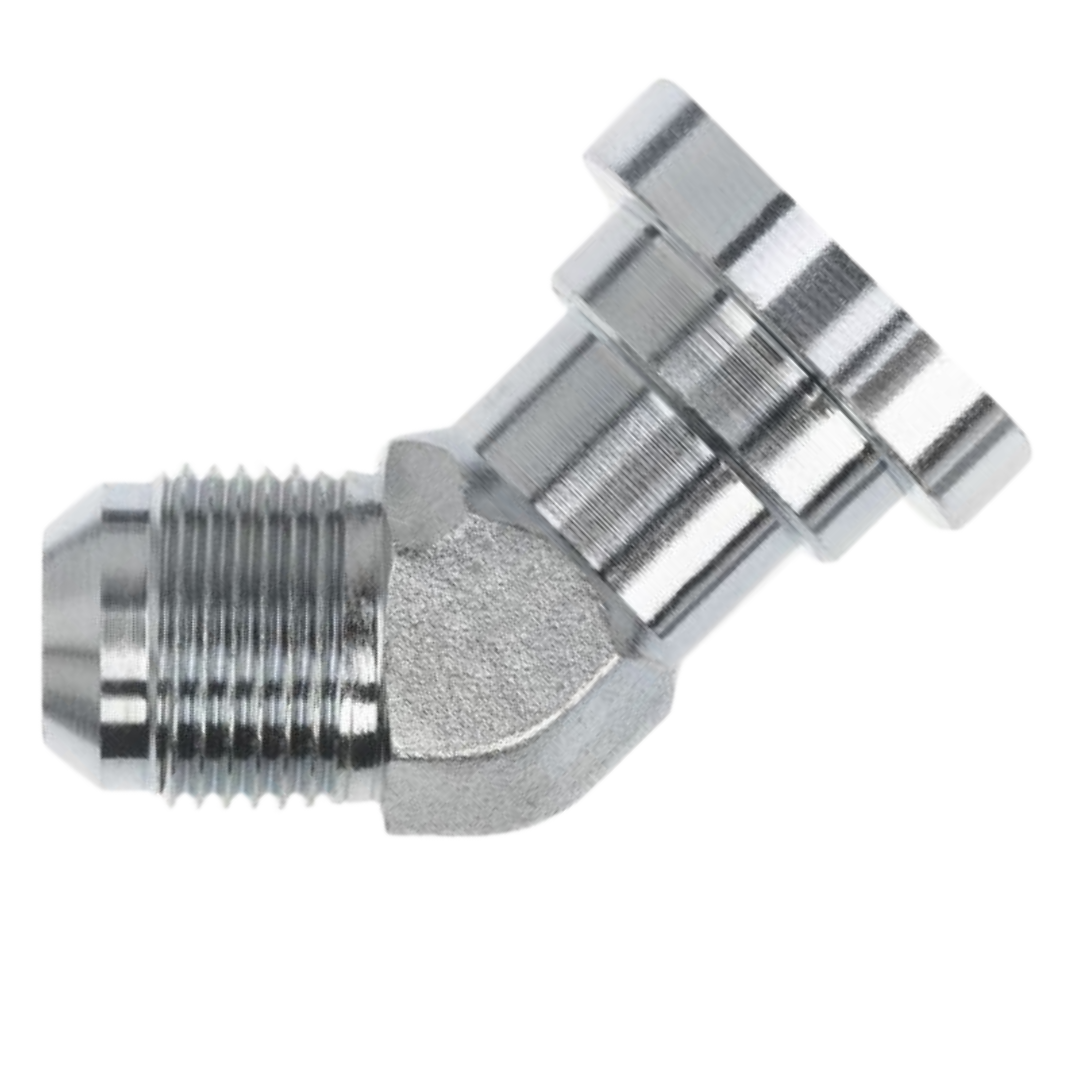

Our Series 1703FG Forged 45-Degree Angled Male JIC x Code 61 Flange Head adapters, made from carbon steel, offer a robust and secure solution for hydraulic systems requiring high-performance connections. The 45-degree angled male JIC fitting features a 37-degree flare, providing a reliable, leak-resistant seal when connected to female JIC fittings. The Code 61 flange head adapter includes a flat face and bolt holes, allowing for easy installation to flange ports. Forged from durable carbon steel, these adapters are ideal for medium-pressure applications, delivering enhanced strength and longevity in demanding fluid power systems.
