Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 6-8 Weeks |
| Factory Location | Jenks, Oklahoma |
| Hydraulic Motor Pressure | 2200psi |
| Drum Torque | 16,000 in-lb |
| Country of Manufacture | United States |
| Height | 12.19 |
| Length | 93.87 |
| Width | 30.81 |
| Weight | 550 |
| Drum Flange Diameter | N/A |
| Brake Option | With Hydraulic Brake |
| Drum Length | N/A |
| Drum Rotation | N/A |
| Max Bare Drum Line Pull | 4,000 lbs |
| Max Full Drum Line Pull | N/A |
| Max Bare Drum Line Speed | 107 ft/min |
| Max Full Drum Line Pull | N/A |
| Max Full Drum Line Speed | N/A |
| Safety Note | DP Winch products are not to be used to lift, hoist or move people. If your task involves lifting or moving people, you MUST use the proper equipment; not a DP Winch product. Wire rope anchors on winches are not designed to hold the rated load of the winch. You must keep at least five (5) wraps of wire rope on the drum to insure the wire rope doesnÕt come loose. Stay clear of suspended loads and of wire rope under tension. A broken wire rope or dropped load can cause serious injury or death. Make sure that all equipment, including the winch and wire rope, is maintained properly. Avoid shock loads. This type of load imposes a strain on a winch many times the actual weight of the load and can cause failure of the wire rope or of the winch. Winch operators must be trained in the proper, safe operations of the winch. The hydraulic system should use only high quality hydraulic oils from reputable suppliers. These oils should contain additives to prevent foaming and oxidation in the system. All winch systems should be equipped with a return line filter capable of filtering 10-micron particles from the system. Please contact OneHydraulics if you need assistance with fluid selection. |
Description

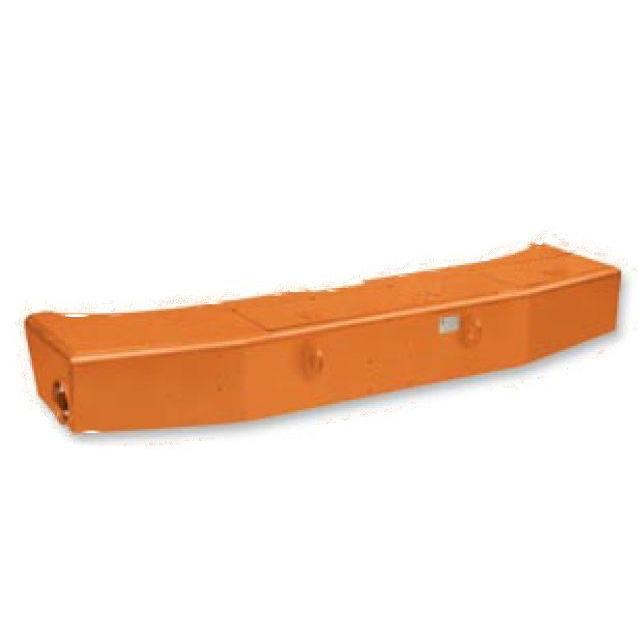

TWG DP Winch Bumper & Capstan winches have the strength to pull you out of any tight spot. There is a reason more and more utility fleet managers specify Lineman traction winches, bumper winches, capstans and accessories over other brands, but weÕll start with the first - safer operation by design. Only Lineman equipment is designed with safety features typically offered as options on competitive products. This means added protection against operator accidents, injuries, and equipment failure. At dp Winch, we know that overloading and downtime impact your bottom line. ThatÕs why every Lineman winch is engineered from the very start to help you and your crew work saferÑand smarter. With line pull ratings from 1500 lbs to 30,000 lbs, DP Winches will be there with you to the last pull. These winches are available with and without the bumper, with an optional capstan head for AT&T shaft. Extension is available curb side or street side. If you do not see the bumper winch you need, give OneHydraulics a call. We are happy to help with custom bumper winch configurations.
