|Data Sheet||Download Datasheet|
|Usually Ships Within||Same Day|
|Factory Location||Bowling Green, Ohio|
|Solid Model||Click here to download|
|Valve Type||Subplate/Manifold Mounted Valve|
|Valve Interface||D03 (NG6)|
|Solenoid Electrical Connection||Includes On-Board Electronics, Solenoid Side A|
|Spool Configuration||P Blocked, A & B to Tank in Neutral Position, P to A and B to T when energized, Solenoid Side B|

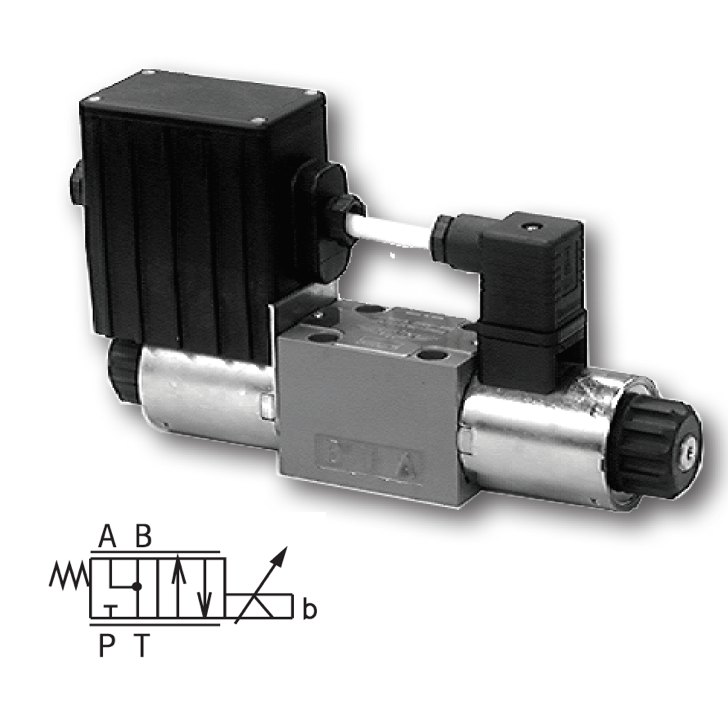

The Argo-Hytos PRM2-06 is a direct acting proportional control valve with optional integrated analog electronics (OBE) with a D03 subplate mounting interface. This valve is used for directional and speed control of hydraulic actuators. The valve opening and resulting flow rate can be modulated continuously in proportion to the reference signal, and can be controlled directly by a current control supply unit. The analog converter card allows for fine control of the valve spool position, reducing hysteresis and response time, and optimizing valve performance. The optional control box, which comprises one or two electronic control cards depending upon the number of controlled solenoids, can be mounted onto either solenoid. For models with two solenoids, the solenoid mounted opposite of the control box is connected to the box by a DIN connector, a two-lead cable, and a bushing. The connection of the control box with the supply source and with the control signal is implemented by a 4-pin connector of type M12x1. The electric control unit supplies the solenoid with current, which varies with the control signal.
