15AJAAT1L6A : DP Winch, 15,000lb Bare Drum Pull, Base with Tensioner, No Kickout, CCW, Less than 20GPM Motor, 5.5" Barrel x 7.19" Length x 12.75" Flange

6-8 Weeks

Sale price$6,172.21

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma

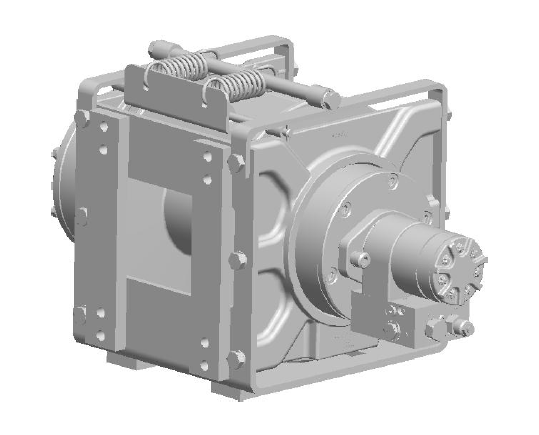

Solid Model

Click here to download

Service Manual Download

Click here to download

Hydraulic Motor Pressure 2500psi
Country of Manufacture United States
Height 13.44
Length 23.91
Width 13.84
Weight 274


With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.

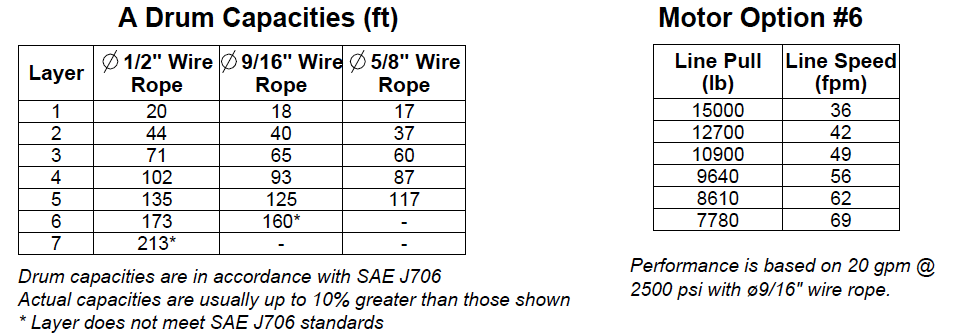

* 15,000lbs. capacity winch storing 213 ft. of 1/2” dia. rope

* Base with Tensioner (A Tensioner is a mechanism that holds the cable on the drum so it doesn’t unravel and become tangled under low tension. Typical tensioner systems are a simple spring design)

* No Kickout (Also known as a clutch, a ‘kickout’ is a mechanism that engages an input shaft to turn your winch.)

* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when paying in)

* Low Flow ~ Under 20 GPM

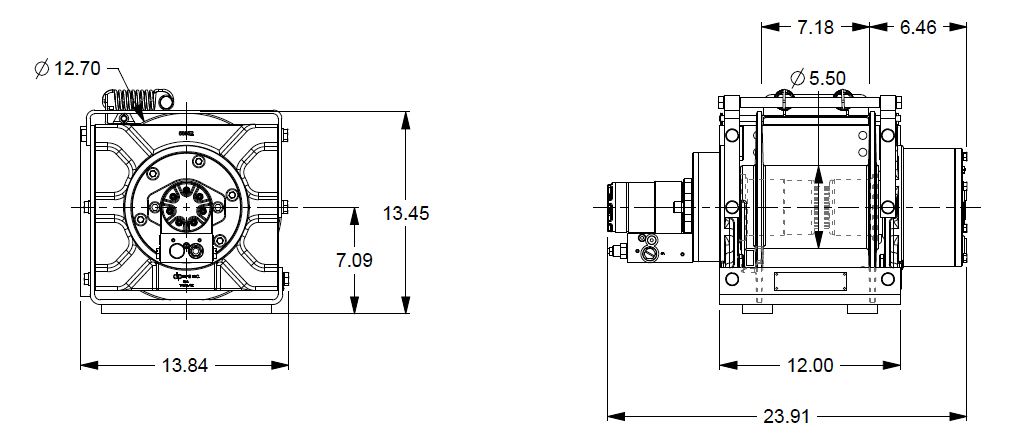

* 5.5" Barrel x 7.19" Length x 12.75" Flange
