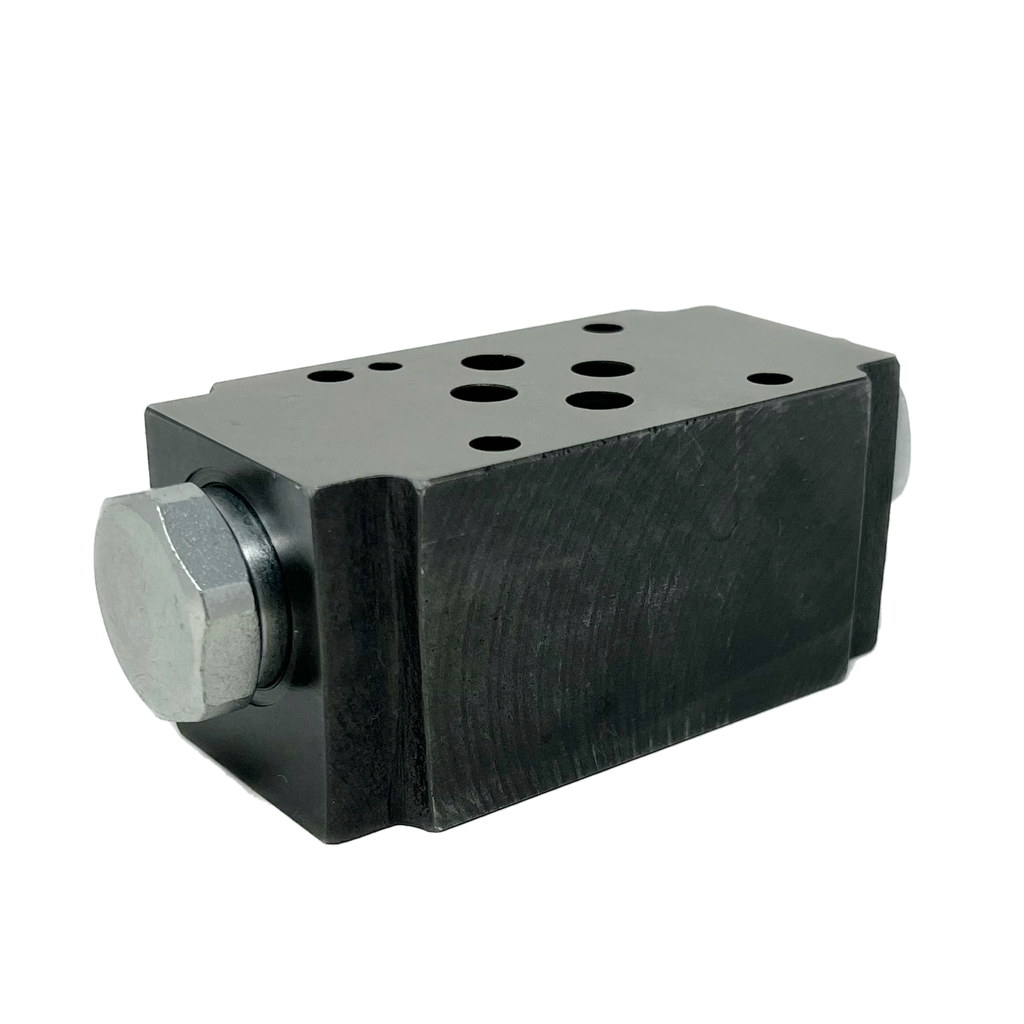

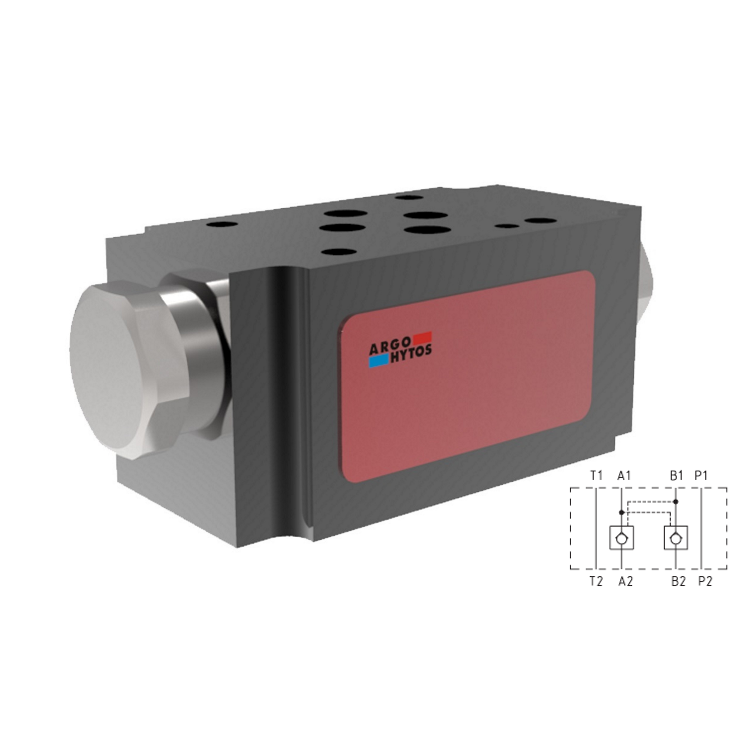

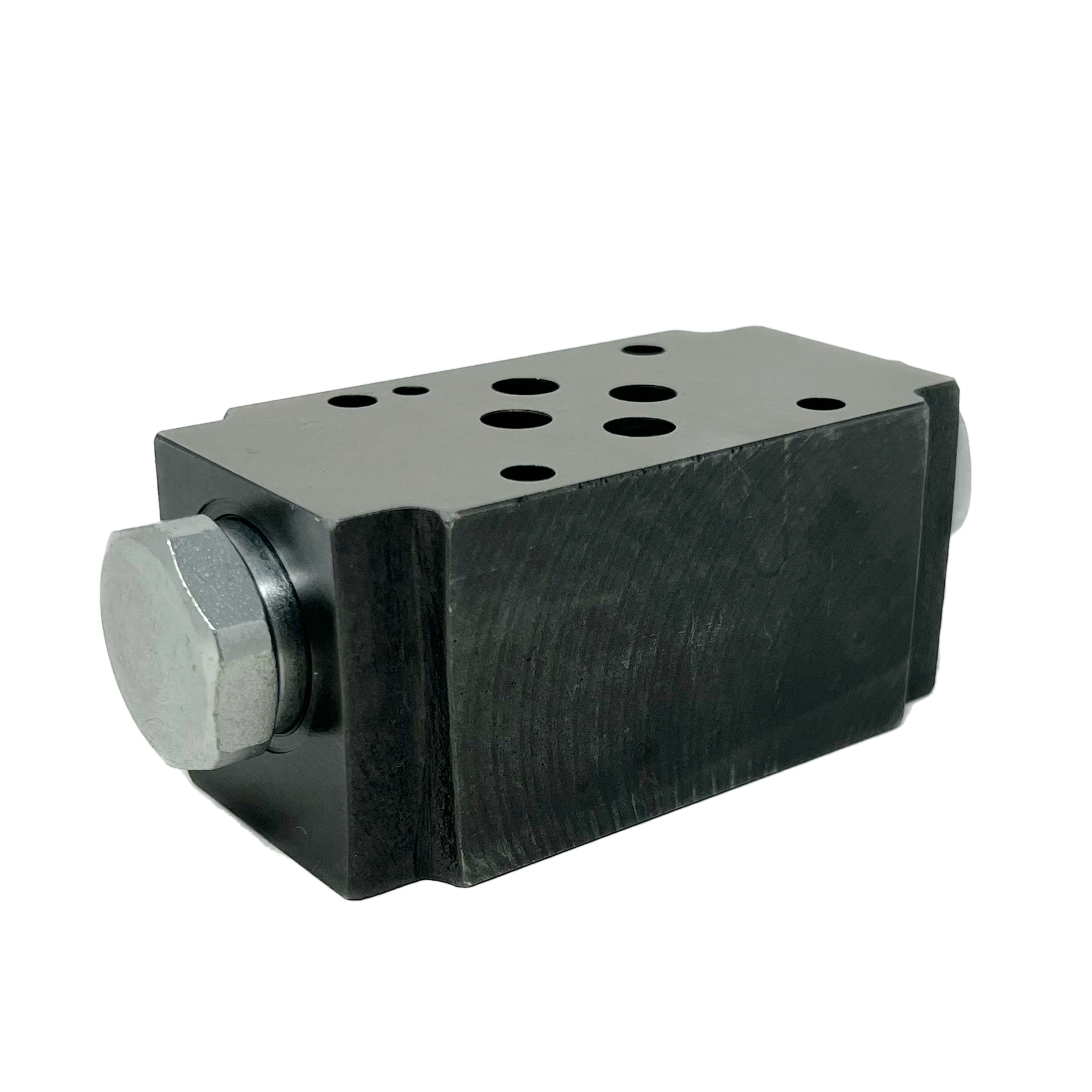

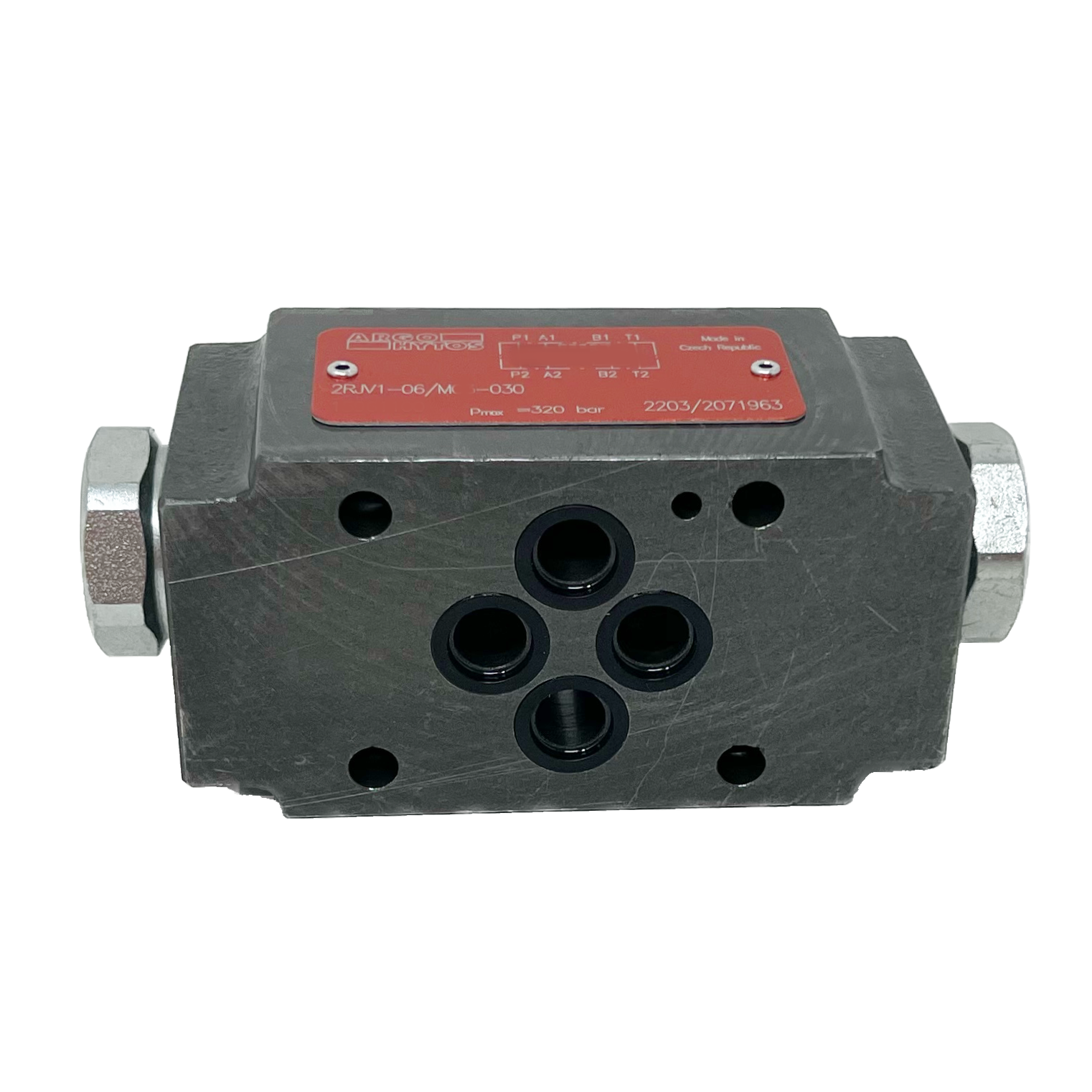

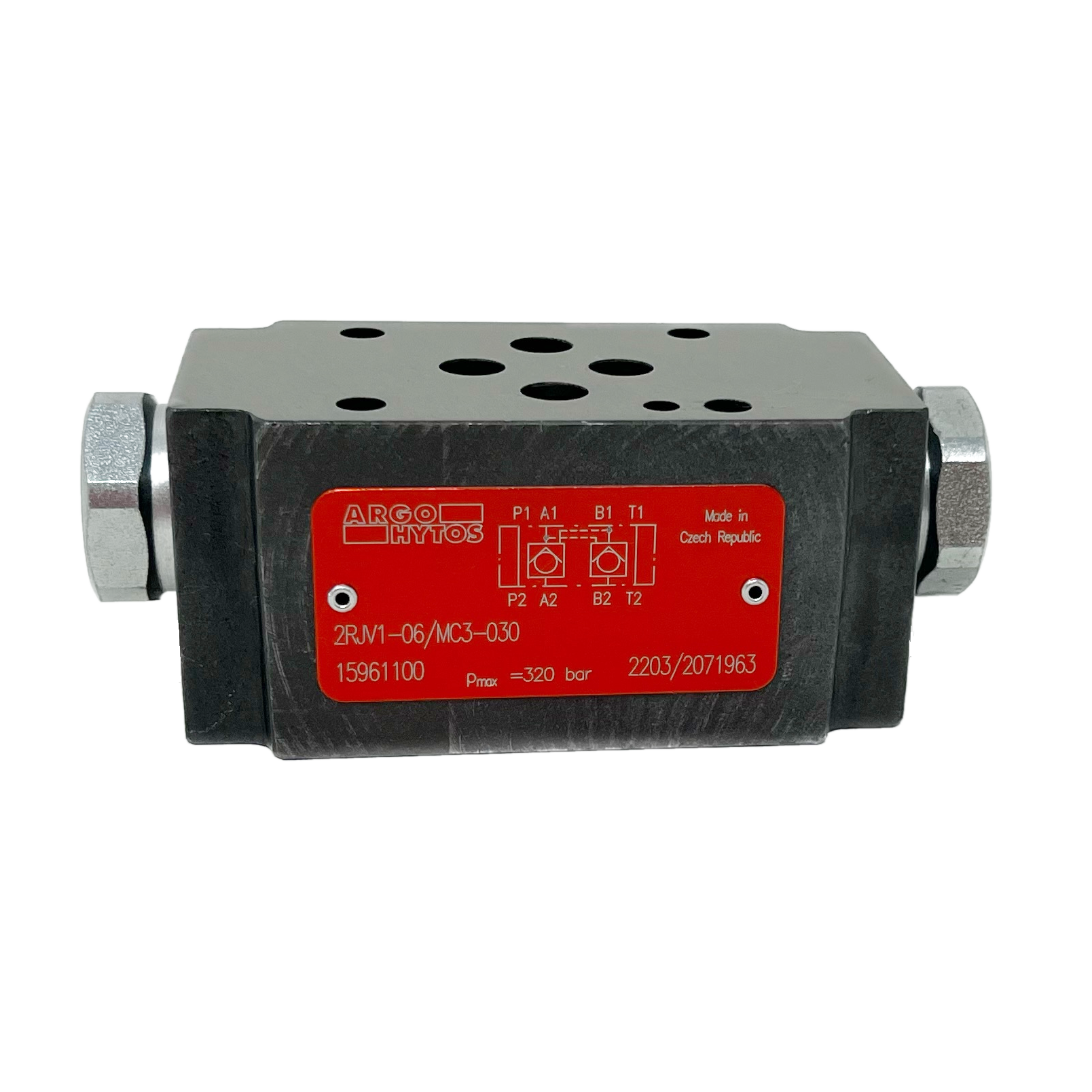

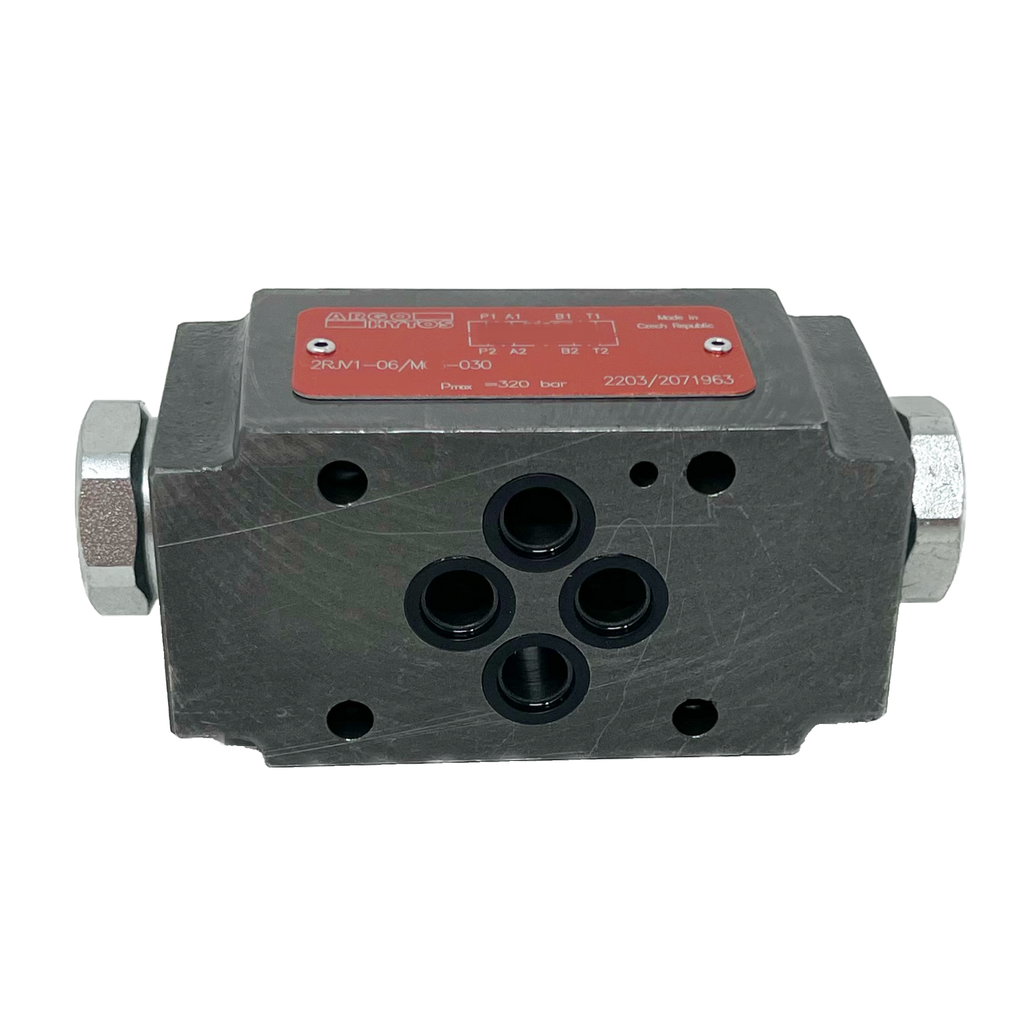

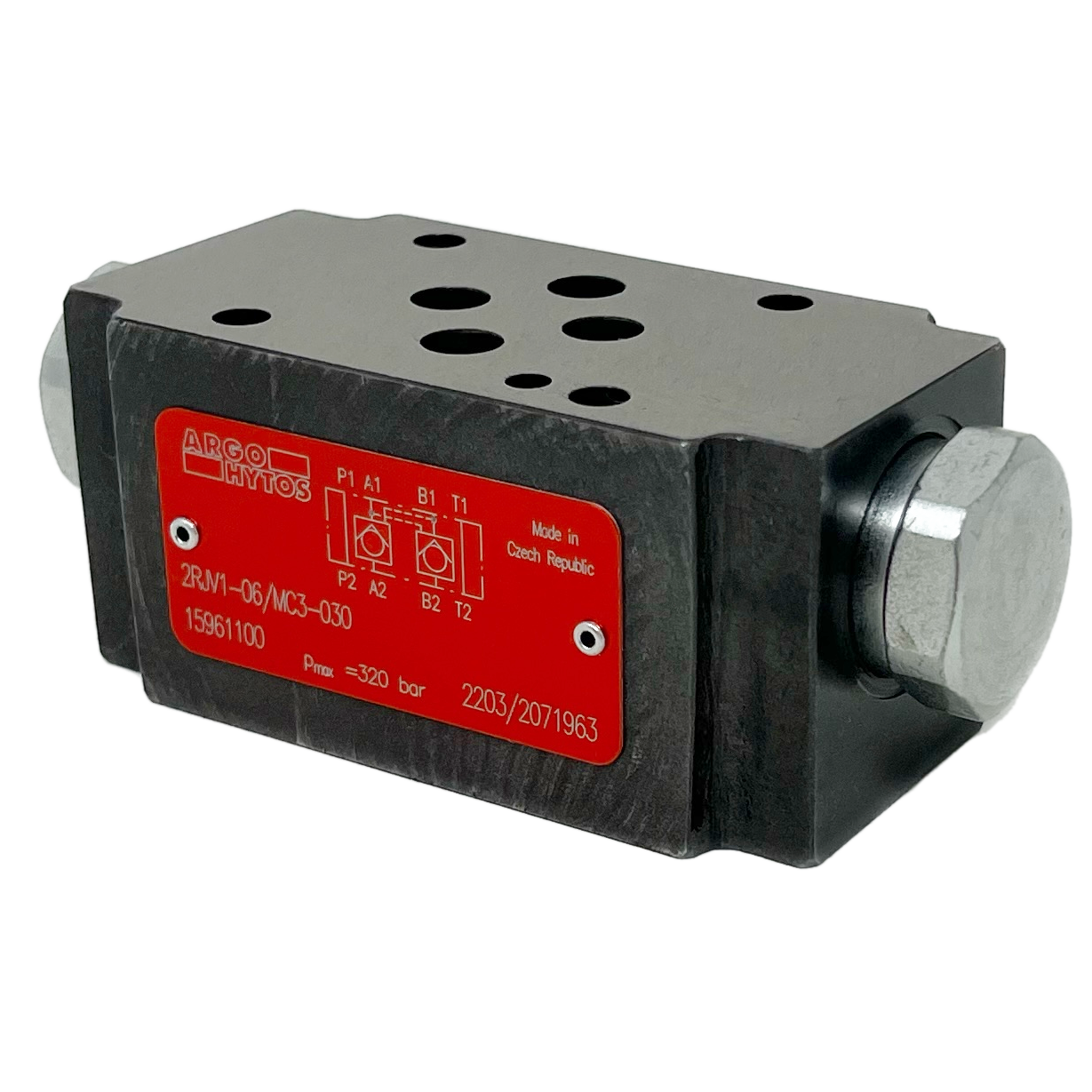

2RJV1-06/MC3-030 : Argo D03 Modular Check, Poppet, Pilot Open, 16GPM, 4600psi, Checks A&B, 3:1, 43.5psi Crack, Steel

Save $30.03
Argo-HytosSKU: 15961100
Same Day
2
310

Price:
Sale price$182.99 Regular price$213.02

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 310
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Modular (Stacking) Valve
Valve Interface D03 (NG6)
Flow Rating 16
Pressure Rating 4600
Check Valve Position Check Valve in A & B
Cracking Pressure 43.5
Check Valve Type Pilot-Operated
Country of Manufacture Czech Republic
Height 1.77
Length 4.13
Width 1.57
Weight 1.76

Description

The Argo-Hytos 2RJV1-06 is a pilot to open check valve, with a sandwich plate design for use in vertical valve stacking assemblies. The valve allows flow to pass from Port A(B)1 to A(B)2 while normally closing flow from A(B)2 to A(B)1 with load. When pressure is applied at pilot port, flow passes from 2 to 1. Three pilot ratio options are available. The check valve is spring closed to secure the holding position in static conditions without load.
