|Data Sheet||Download Datasheet|
|Usually Ships Within||Same Day|
|Factory Location||Bowling Green, Ohio|
|Valve Type||Subplate/Manifold Mounted Valve|
|Valve Interface||D03 (NG6)|
|Actuation Type||Solenoid Operated|
|Solenoid Electrical Connection||DIN Connector EN 175301-803-A|
|Spool Configuration||P Blocked, A & B to T in Neutral, Y51|
|Country of Manufacture||Czech Republic|

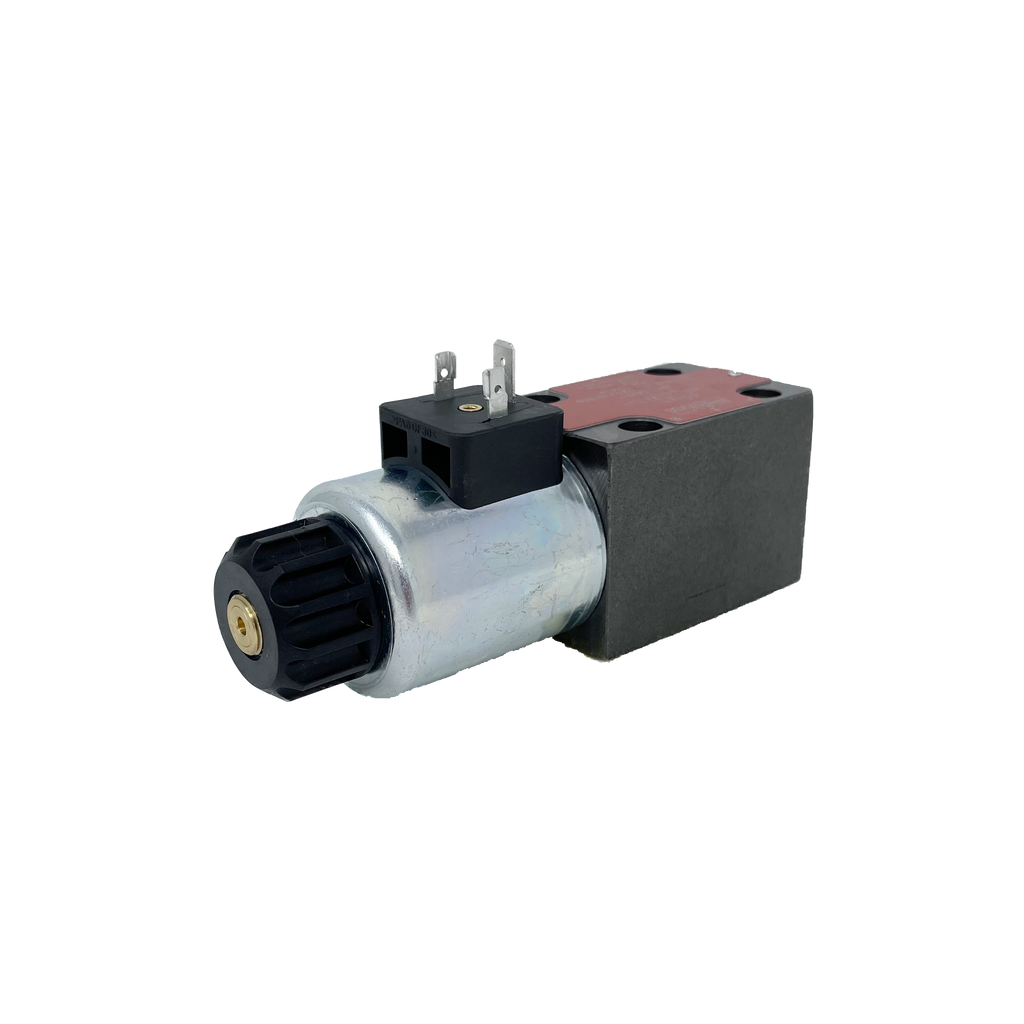

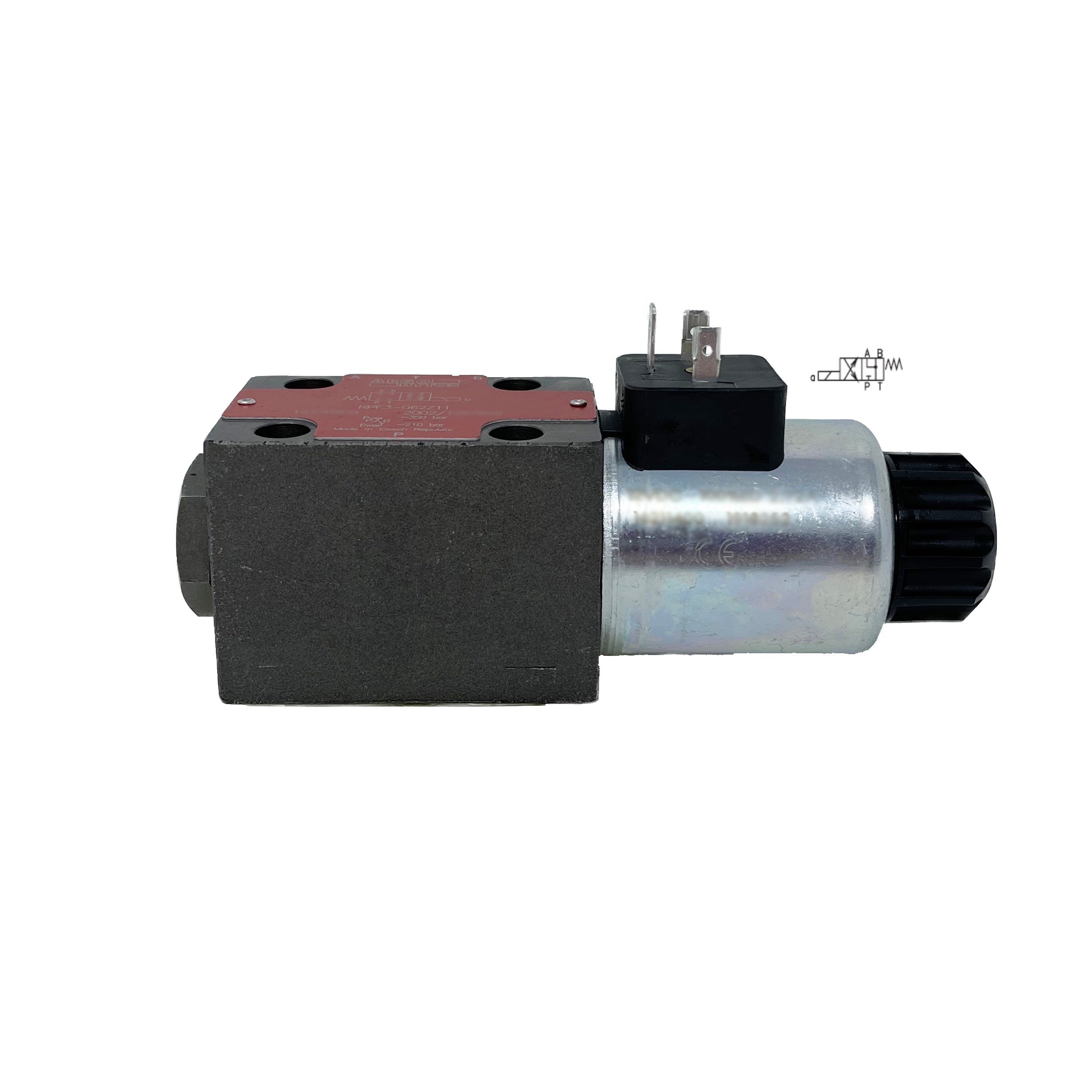

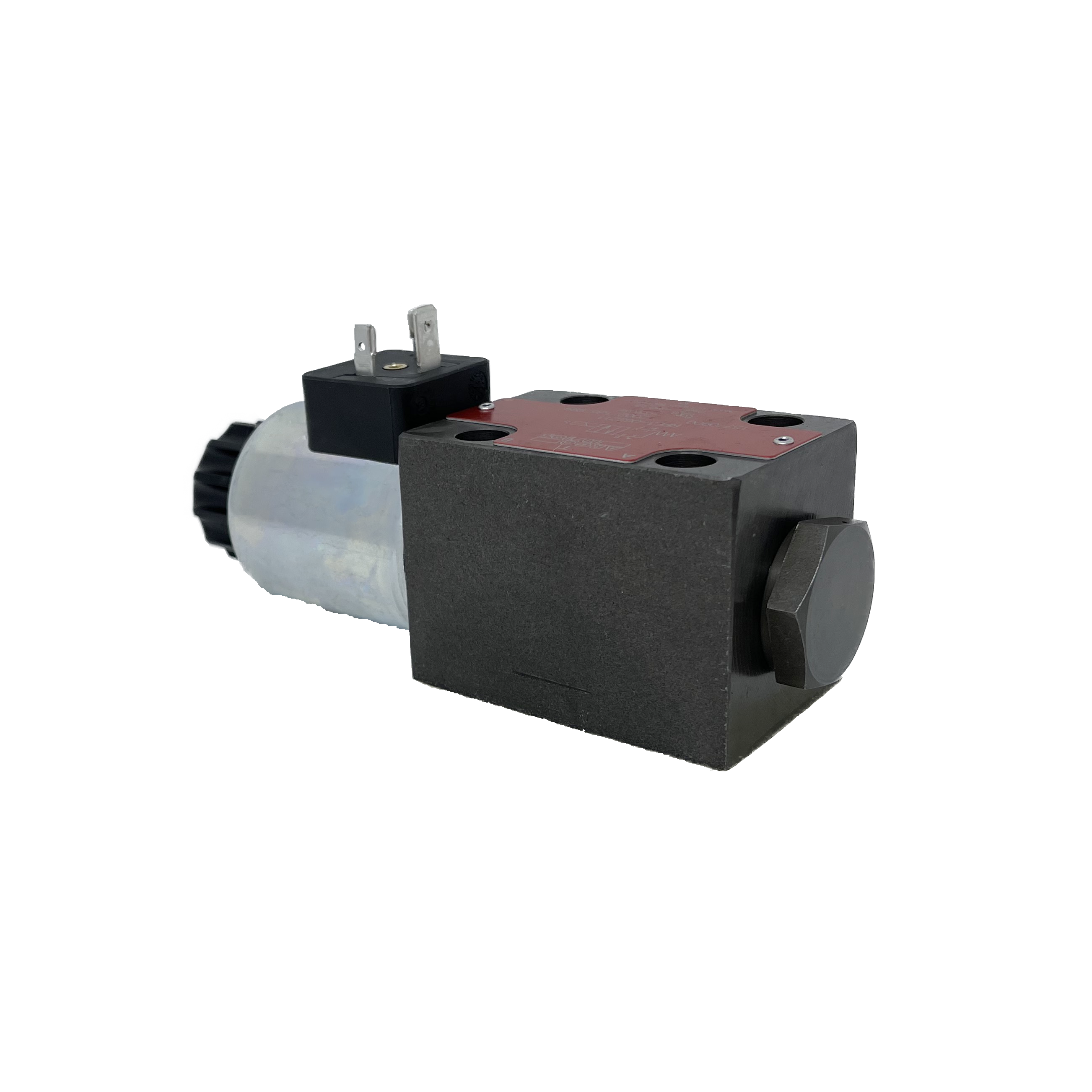

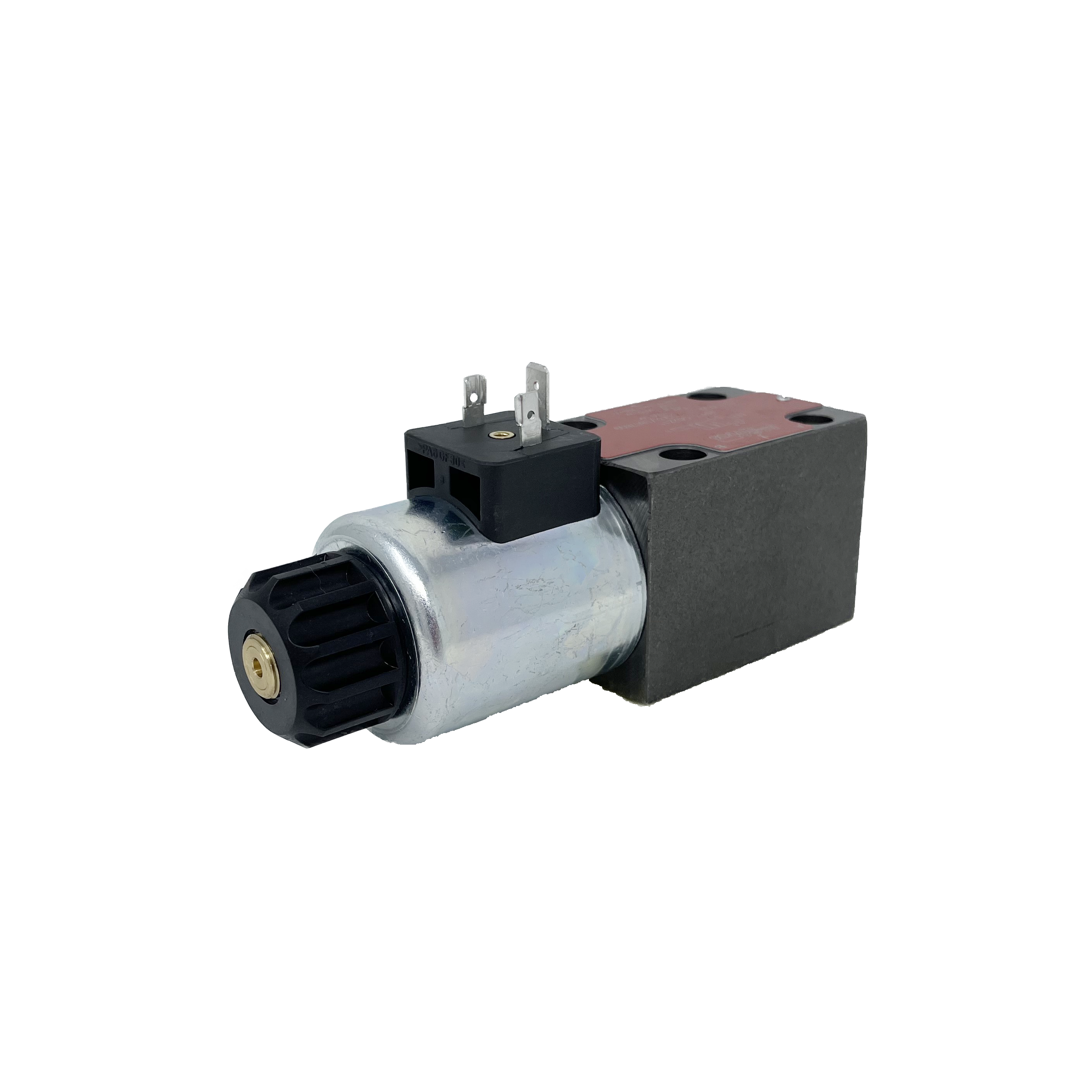

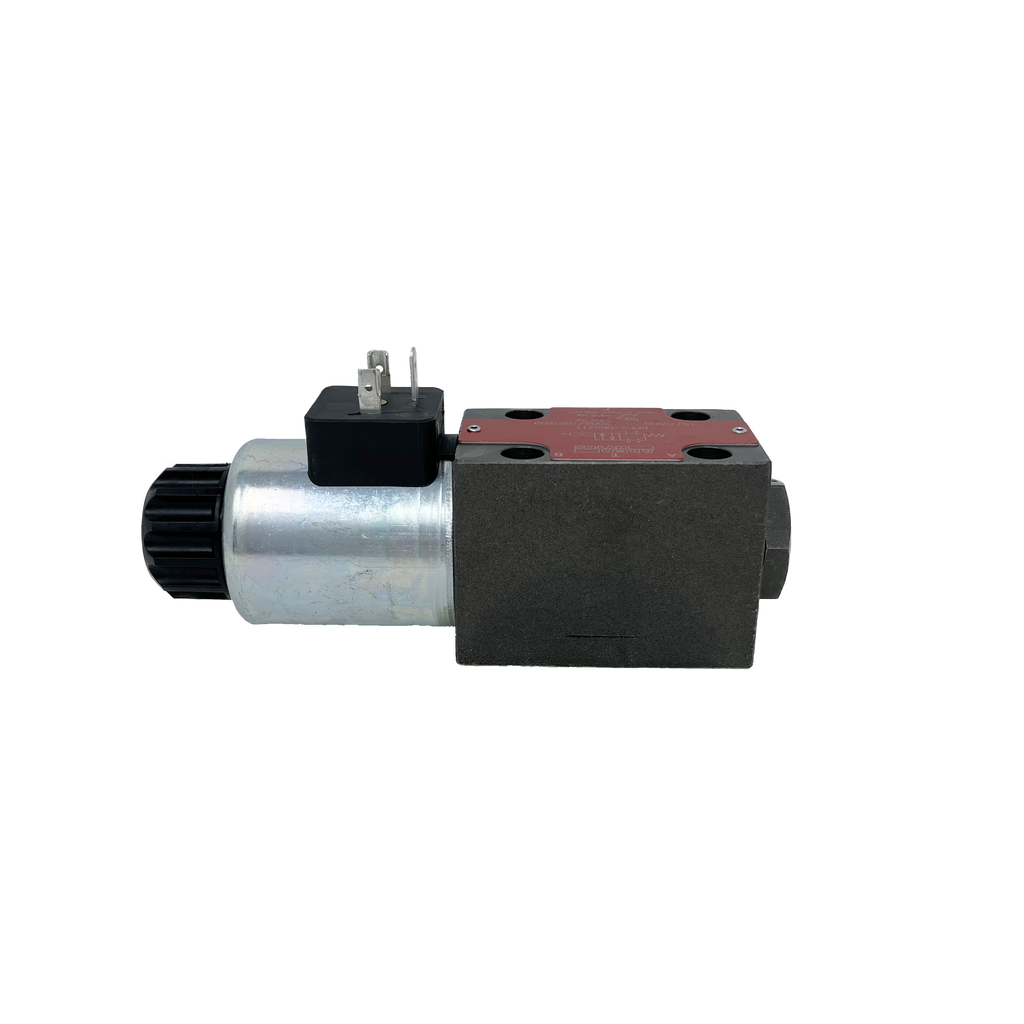

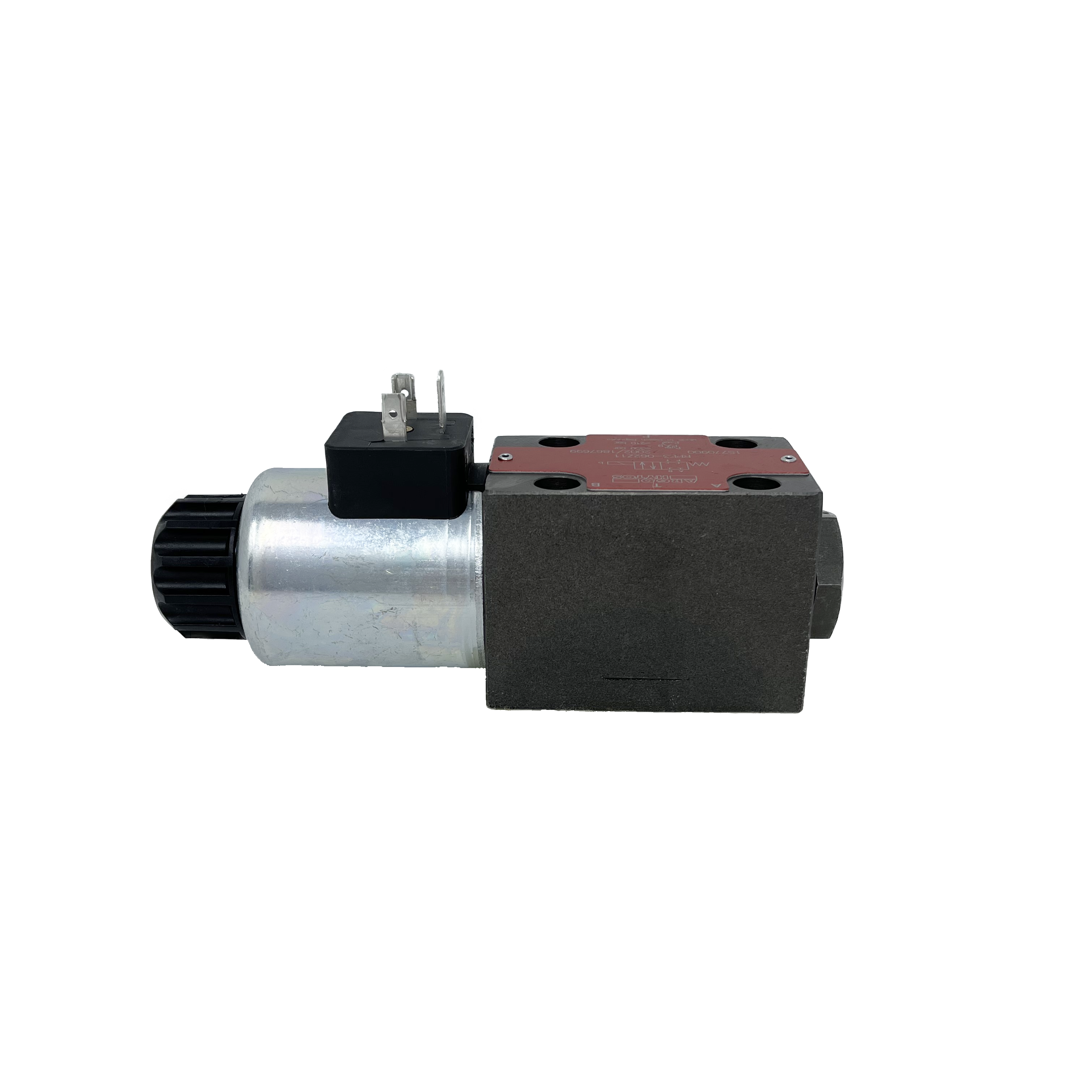

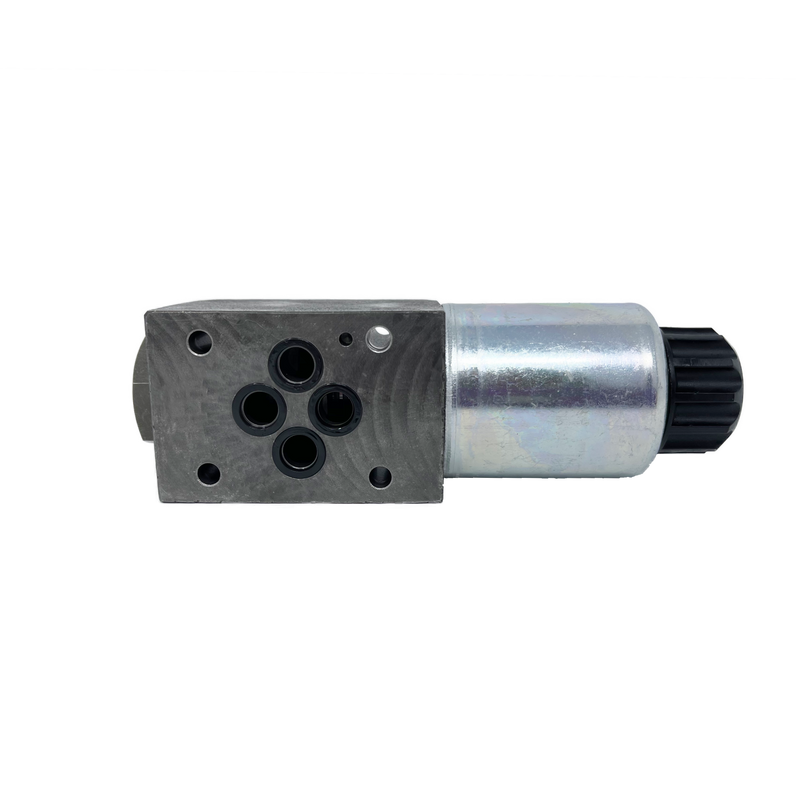

The Argo-Hytos direct-acting, solenoid operated directional control valve with Subplate Mounting is designed to interface according to ISO 4401. Rated up to 5100psi, this valve has optimized design for minimal pressure drop. The valve is available with interchangeable DC solenoids, and with AC power supply using a built-in rectifier bridge. The coil is fastened to the core tube with a retaining nut and can be rotated by 360-degrees to suit the available space. Options are available for multiple spool types.
