|Usually Ships Within
|3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
|Bowling Green, Ohio
|Subplate/Manifold Mounted Valve
|Solenoid Electrical Connection
|DIN Connector EN 175301-803-A
|P to A and B to T in Neutral Position, R11
|Country of Manufacture

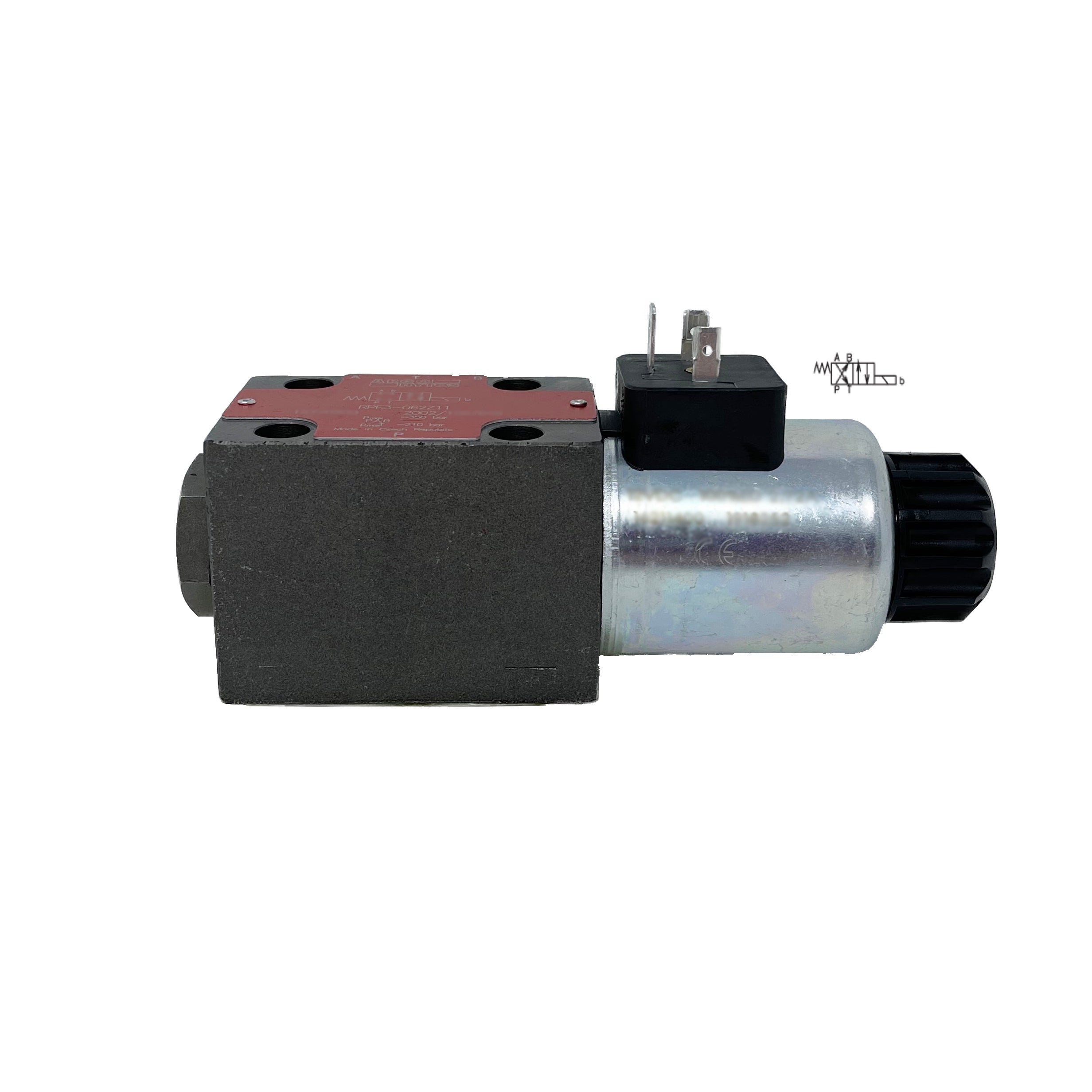

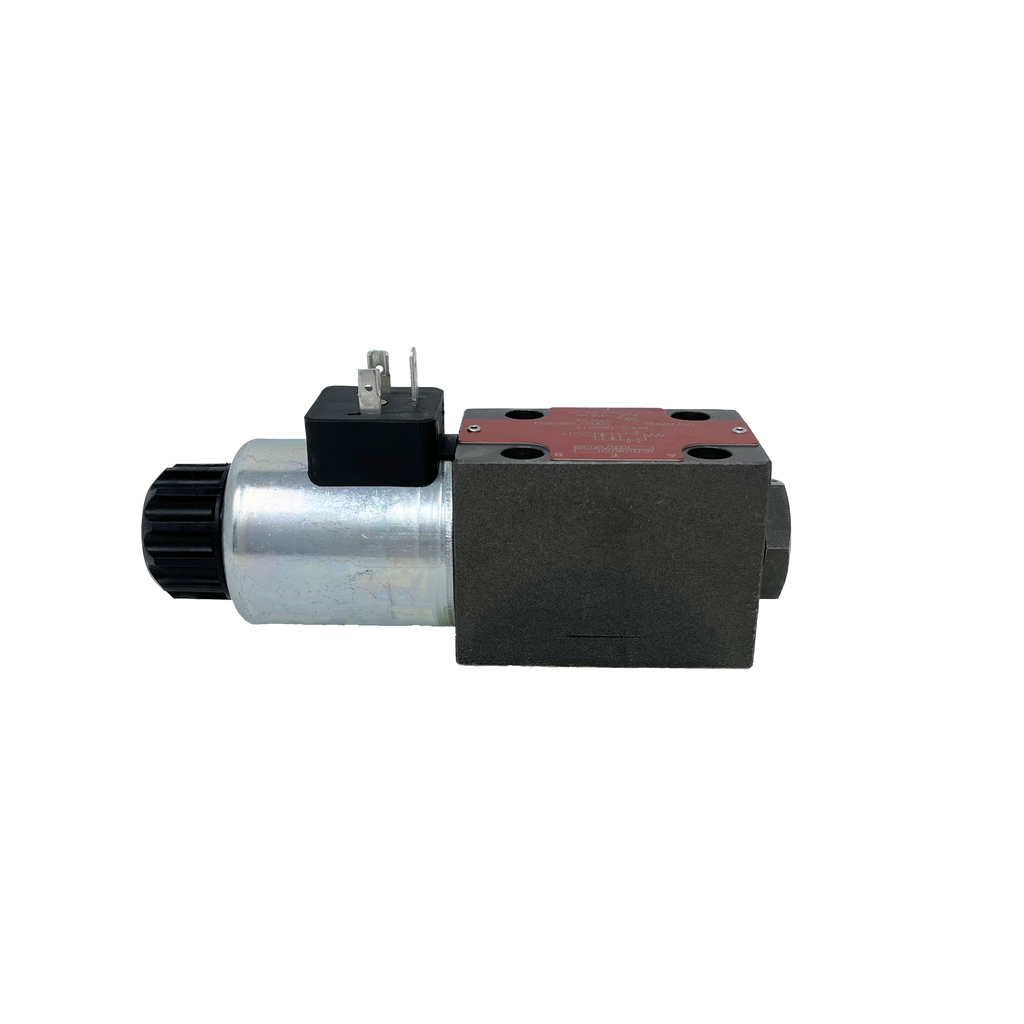

The Argo-Hytos direct-acting, solenoid operated directional control valve with Subplate Mounting is designed to interface according to ISO 4401. Rated up to 5100psi, this valve has optimized design for minimal pressure drop. The valve is available with interchangeable DC solenoids, and with AC power supply using a built-in rectifier bridge. The coil is fastened to the core tube with a retaining nut and can be rotated by 360-degrees to suit the available space. Options are available for multiple spool types.
