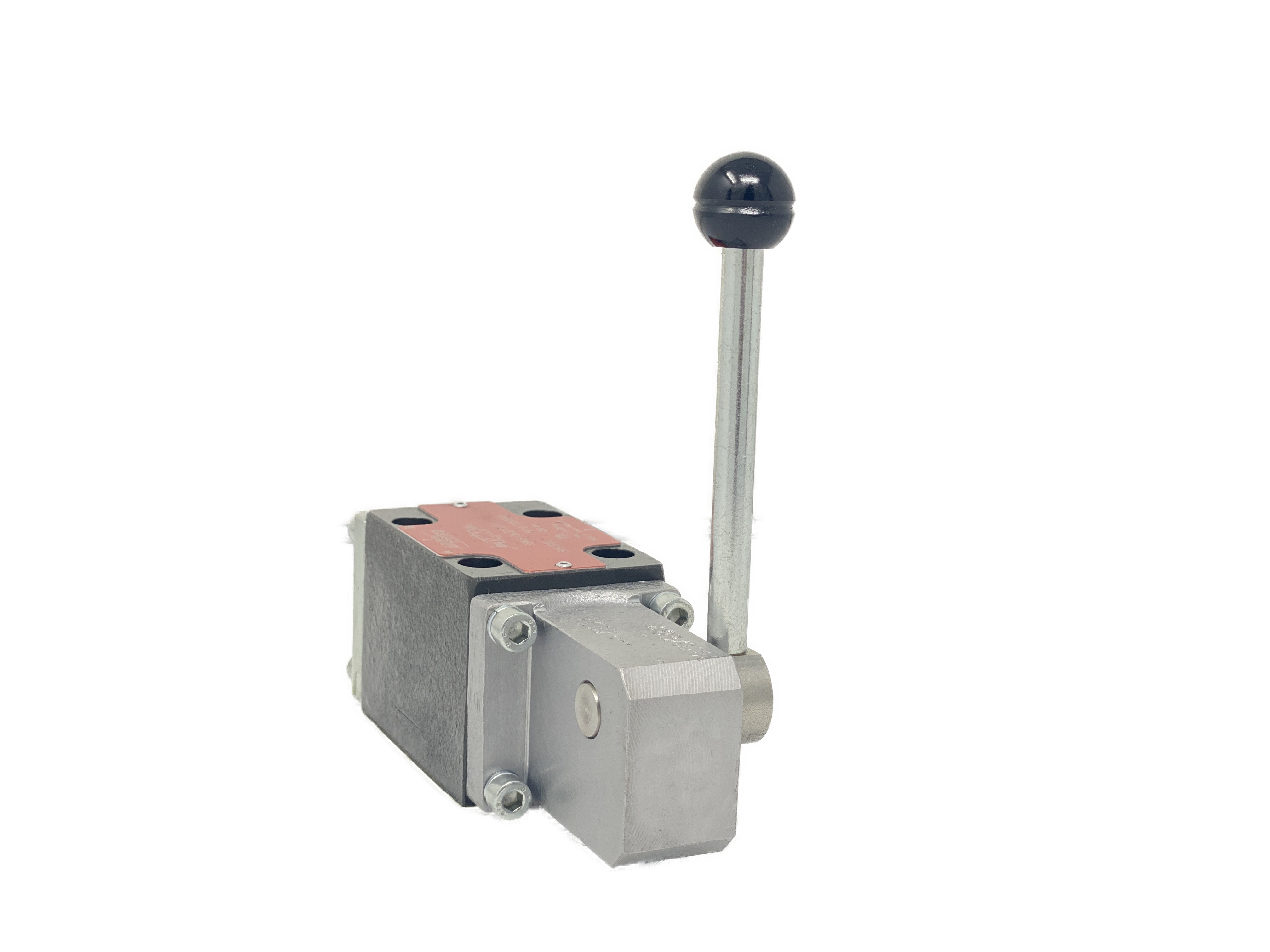

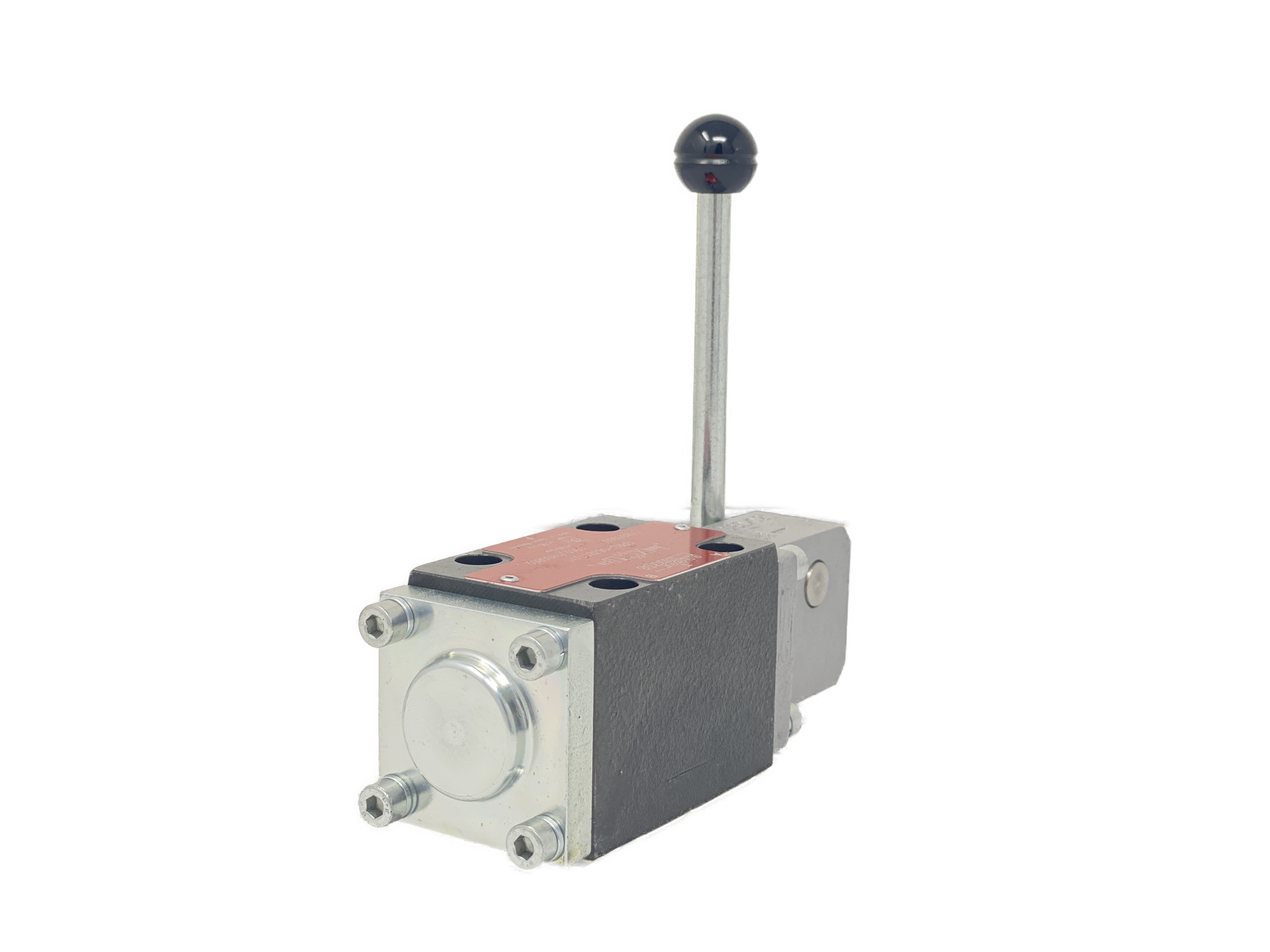

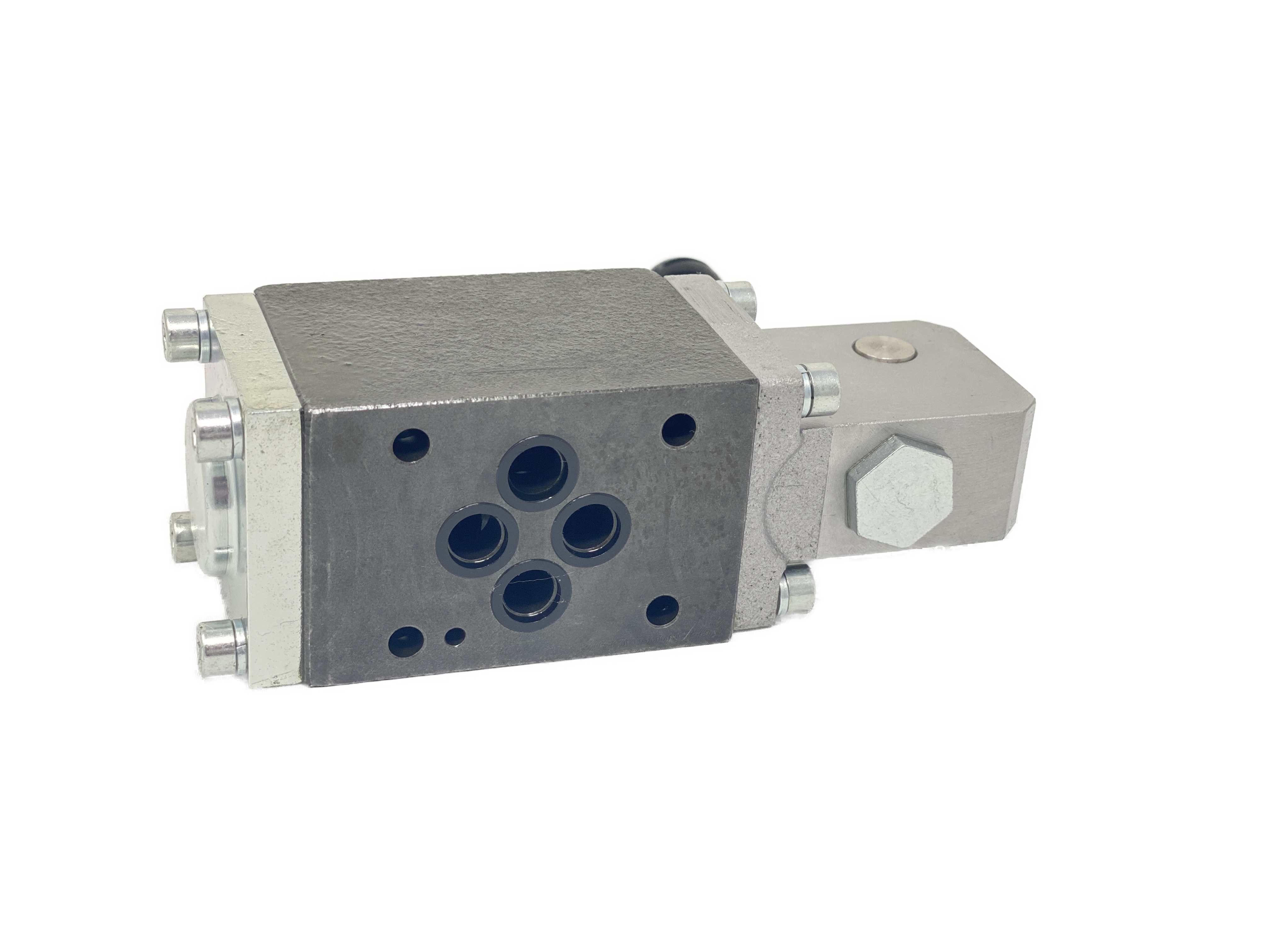

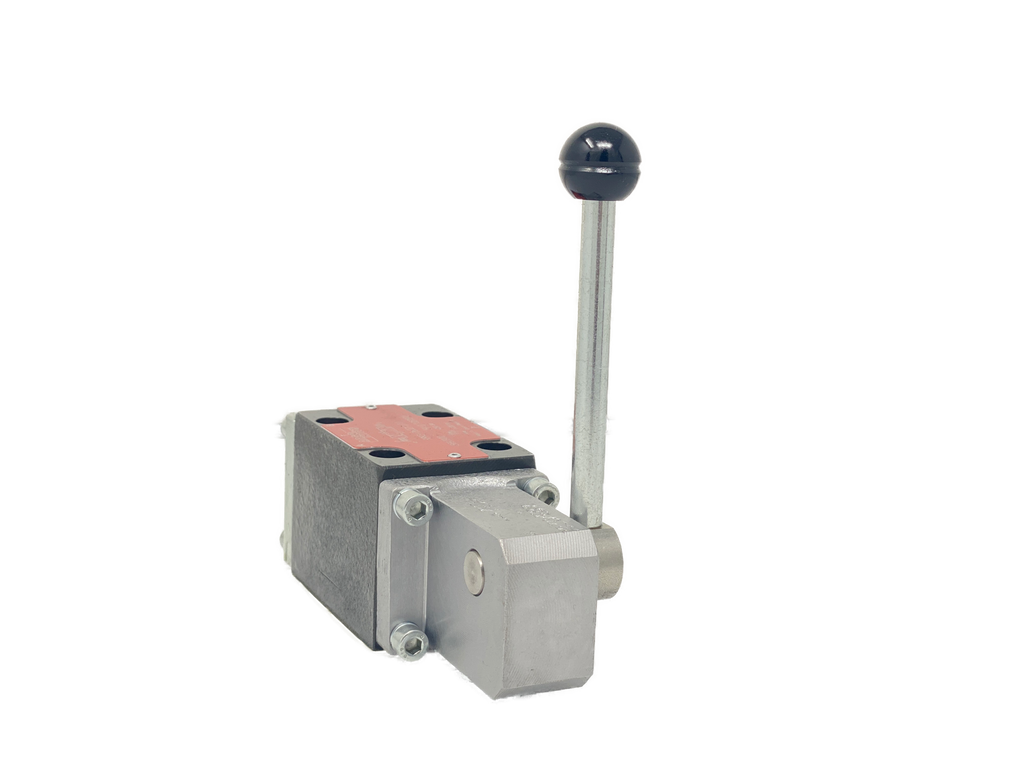

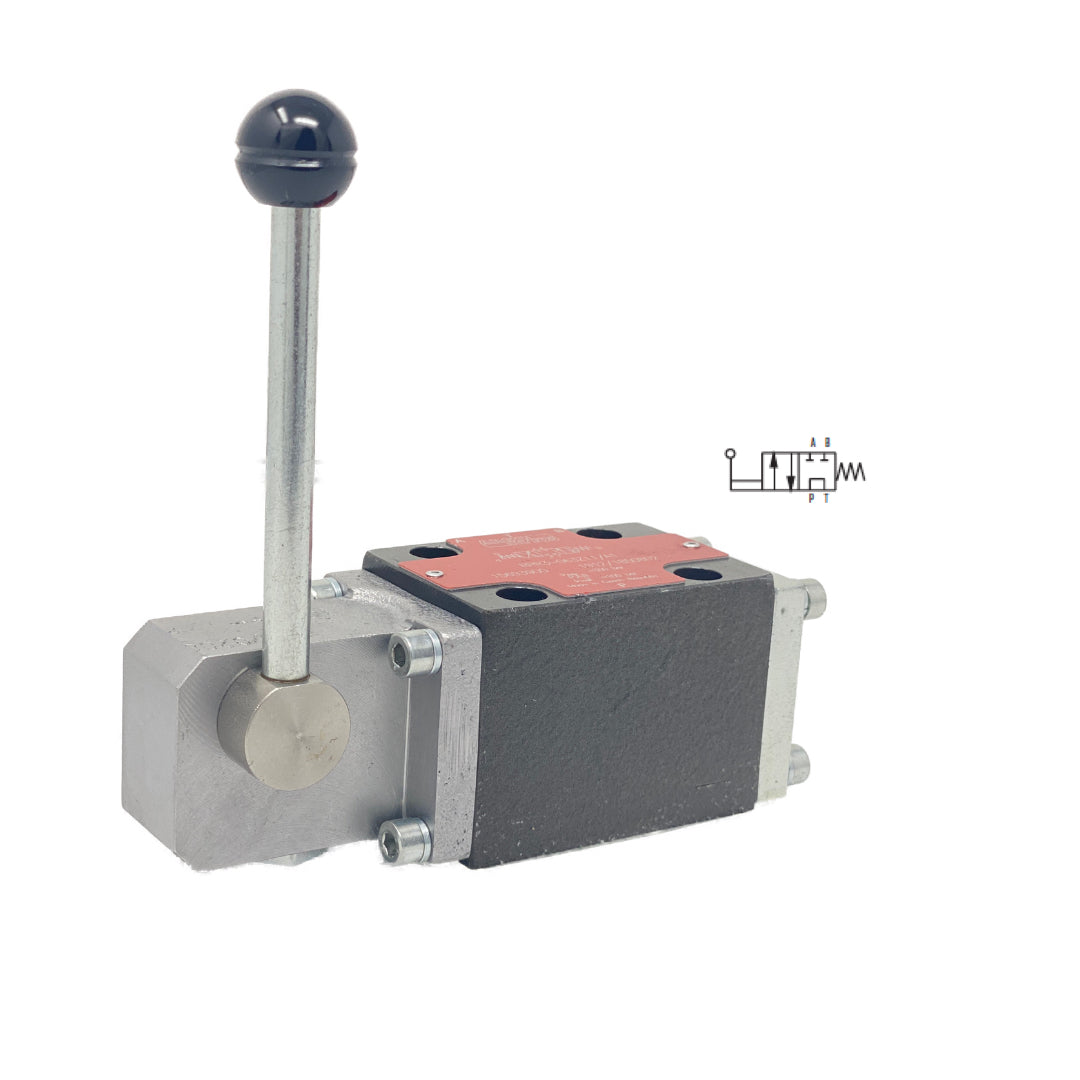

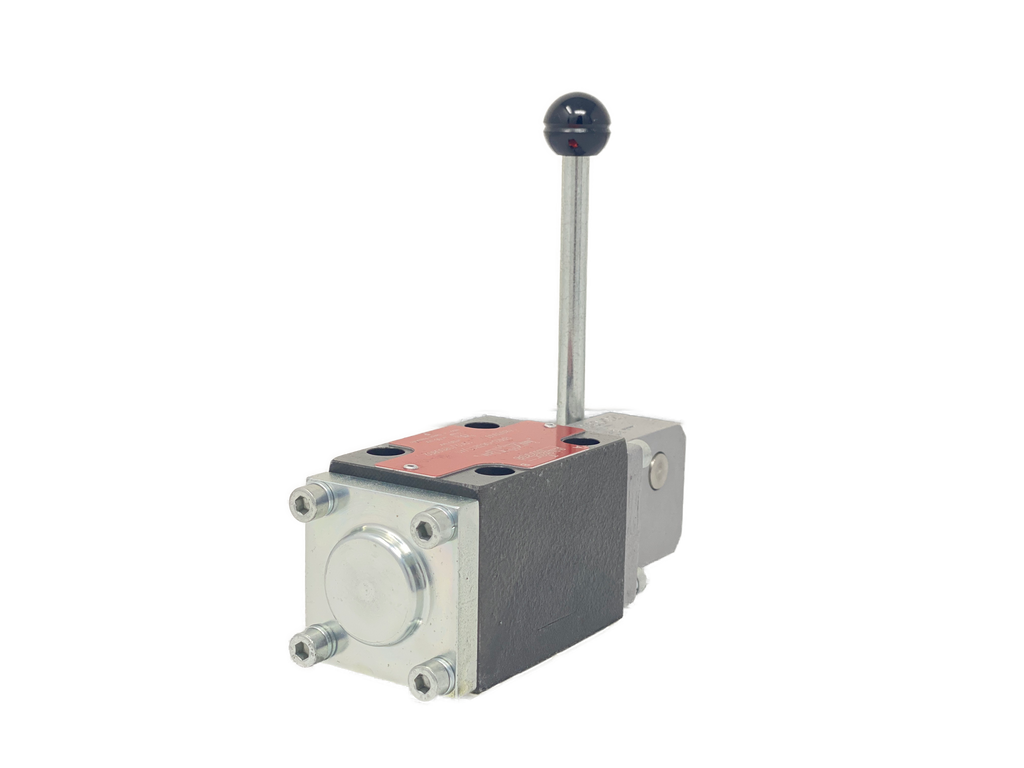

RPR3-062C51/A1 : Argo Hytos Directional Control Valve, Lever Operated, D03 (NG6), 21GPM, 5100psi, 2P4W, Spring Return, Tandem Spool in Neutral

Save $216.18
Argo-HytosSKU: 15699600
Same Day
5
0

Price:
Sale price$299.99 Regular price$516.17

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 0
Factory Location Bowling Green, Ohio
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D03 (NG6)
Flow Rating 21
Pressure Rating 5100
Actuation Type Lever Operated
Spool Configuration Port 2 & 4 Blocked, Port 3 to 1 Neutral, 2C51
Positions 2-Position
Way 4-Way
Country of Manufacture Czech Republic
Height 5.51
Length 5.28
Width 1.77
Weight 3.53

Description

The Argo-Hytos direct-acting, manually operated directional control valve with Subplate Mounting is designed to interface according to ISO 4401. Rated up to 5100psi, this valve has optimized design for minimal pressure drop. The manual lever and actuation element can be rotated in 90-degree increments for flexible installation. A wide range of spool options, as well as spring-centered or detented options, are available for all spool types.
