|Usually Ships Within||Same Day|
|Factory Location||Bowling Green, Ohio|
|Data Sheet||Click here to download|
|Solid Model||Click here to download|
|Valve Type||Subplate/Manifold Mounted Valve|
|Valve Interface||D03 (NG6)|
|Actuation Type||Lever Operated|

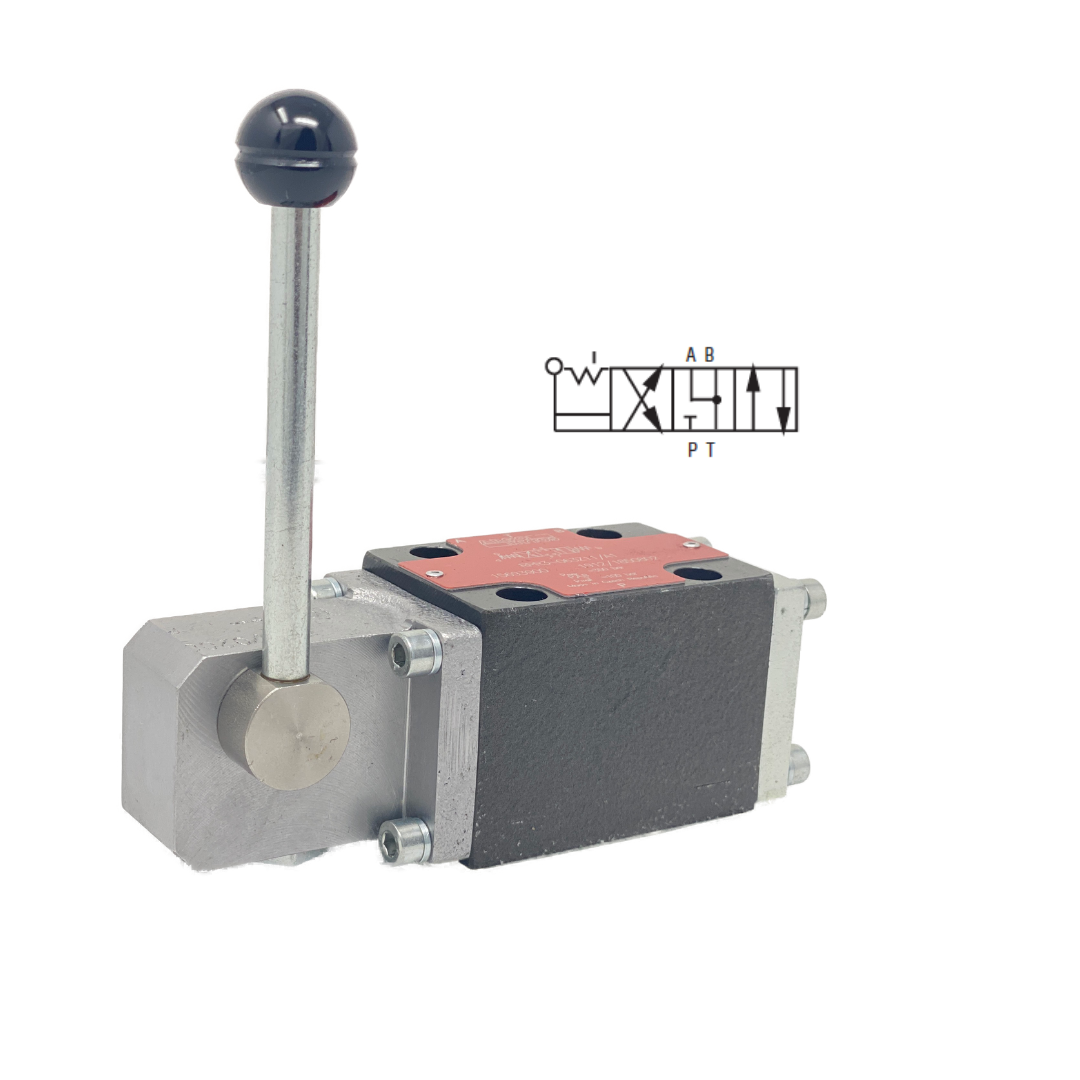

|Spool Configuration||Motor Spool, P Blocked, A & B to Tank in Neutral|
|Country of Manufacture||Czech Republic|

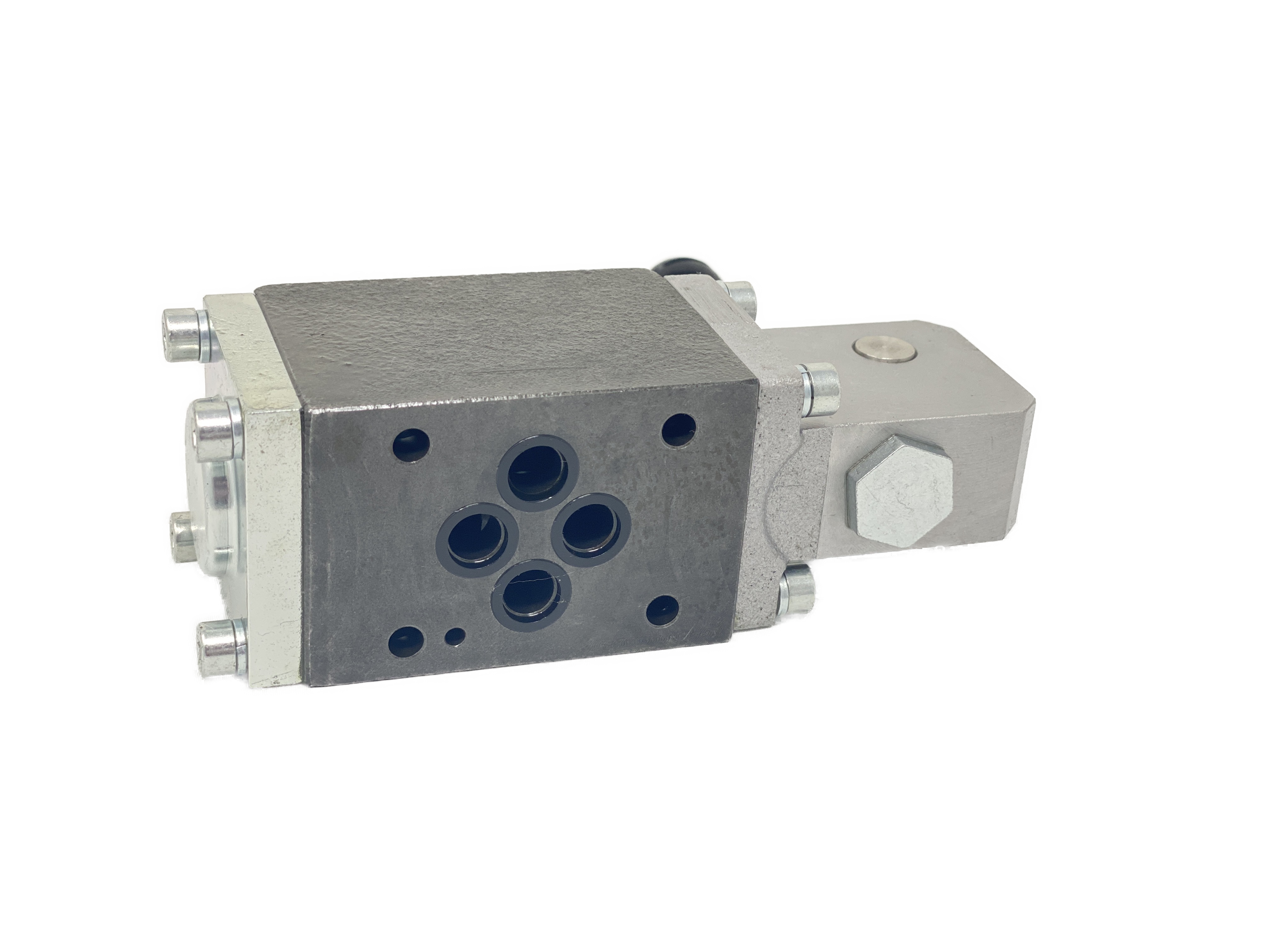

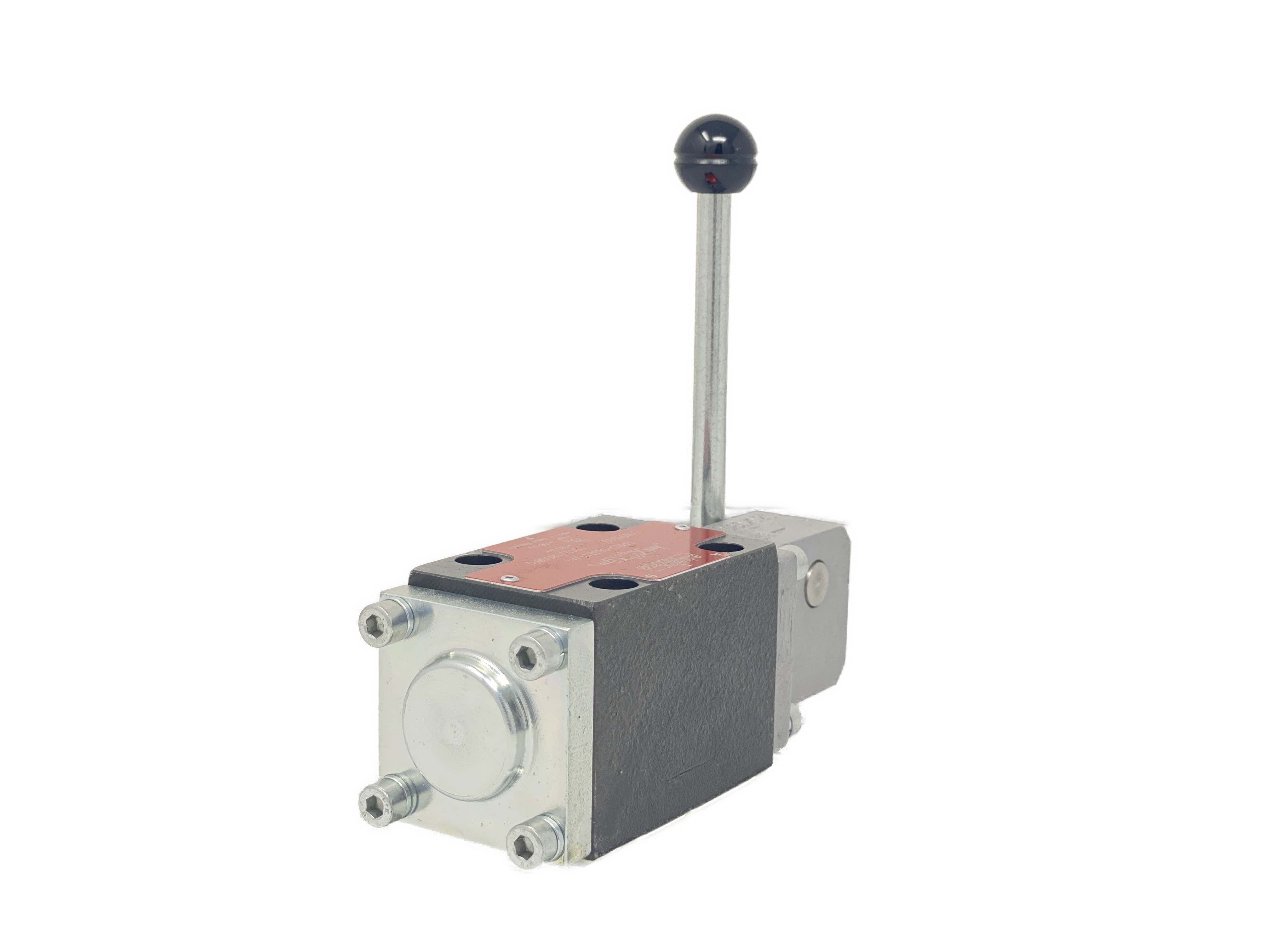

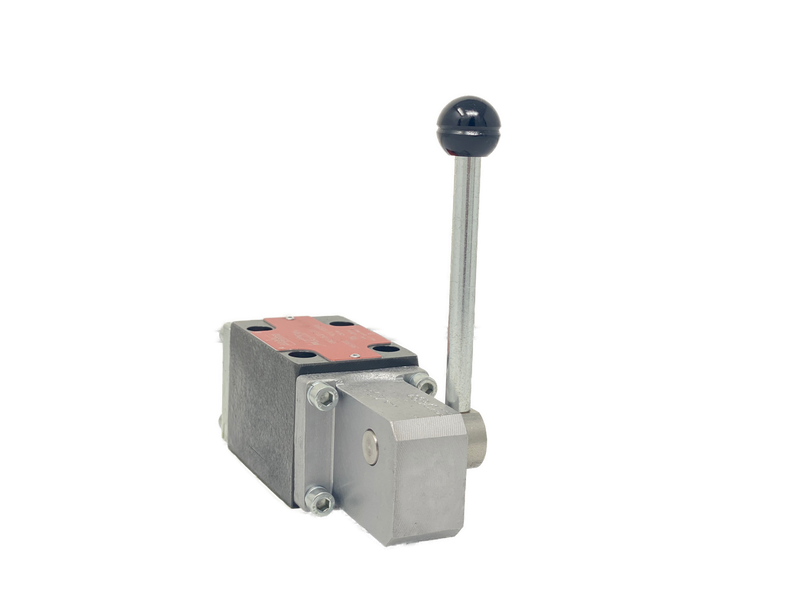

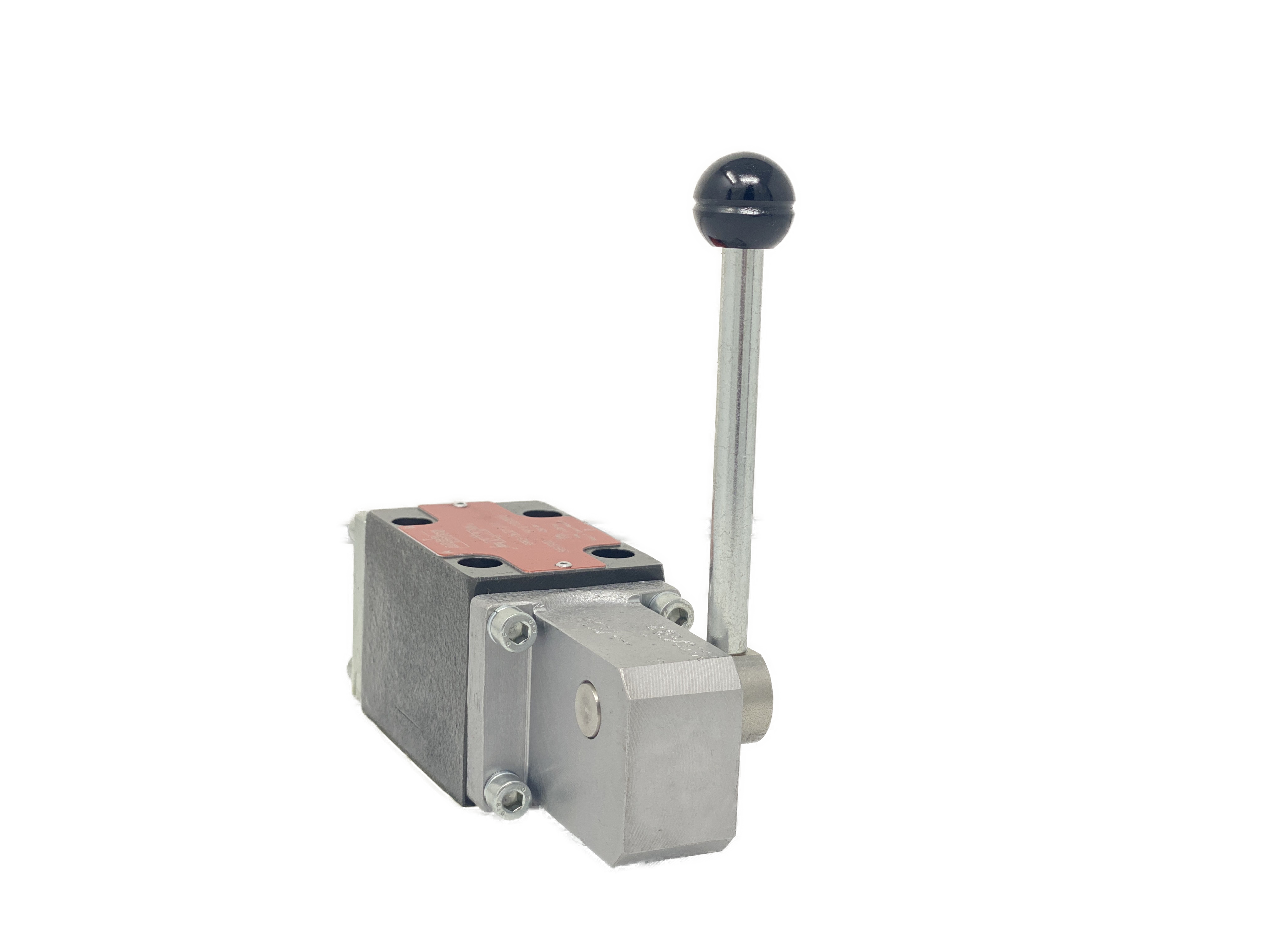

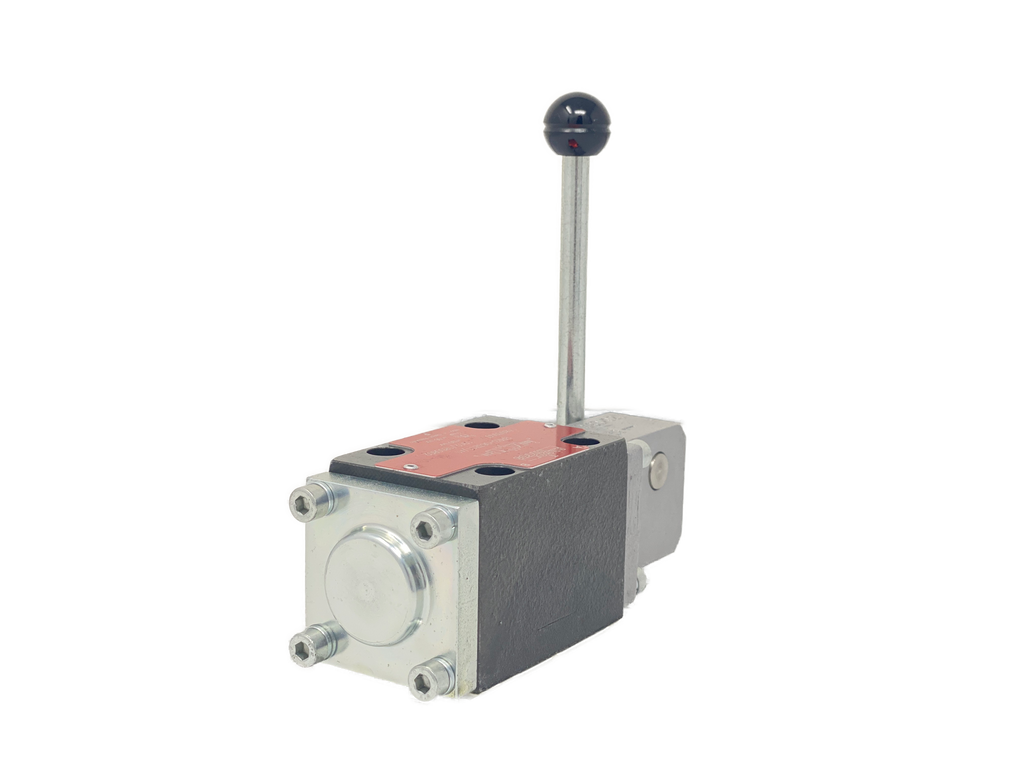

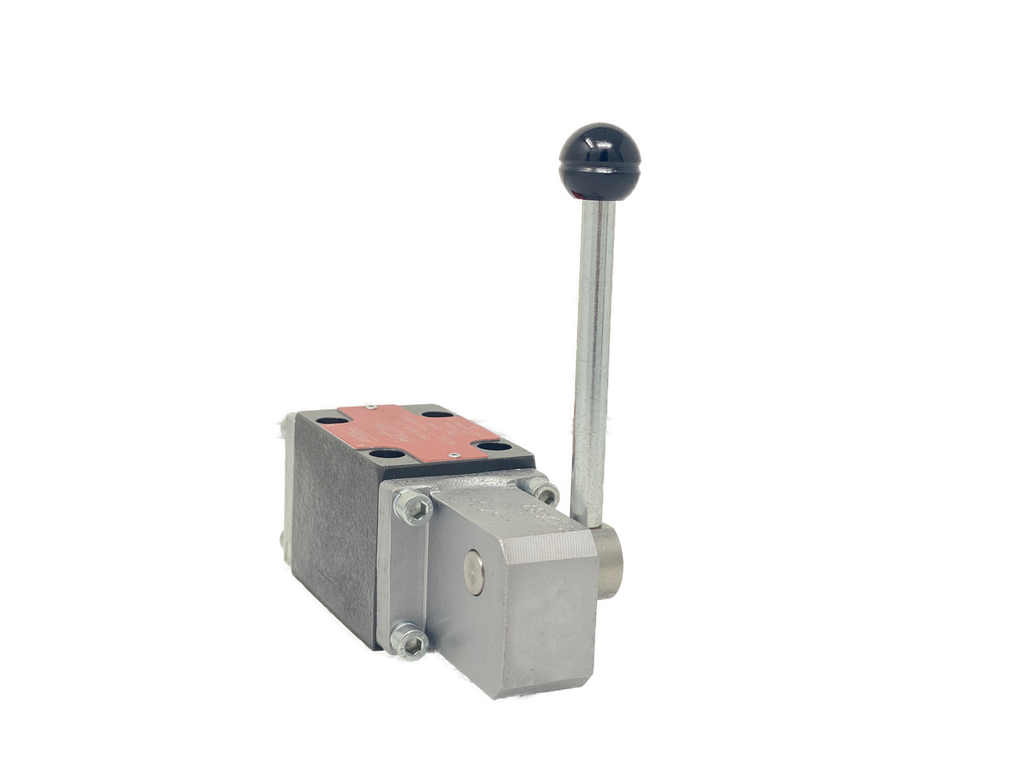

The Argo-Hytos direct-acting, manually operated directional control valve with Subplate Mounting is designed to interface according to ISO 4401. Rated up to 5100psi, this valve has optimized design for minimal pressure drop. The manual lever and actuation element can be rotated in 90-degree increments for flexible installation. A wide range of spool options, as well as spring-centered or detented options, are available fo rall spool types.
