RPR3-063Z15/A1 : Argo 4-Way DCV, Manually Operated, 21 GPM, 5100psi Rated, Cylinder Spool

Save $200.68
Argo-HytosSKU: 15696900
3-5 Days
1275

Price:
Sale price$278.99 Regular price$479.67

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Stock 1275
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Subplate/Manifold Mounted Valve

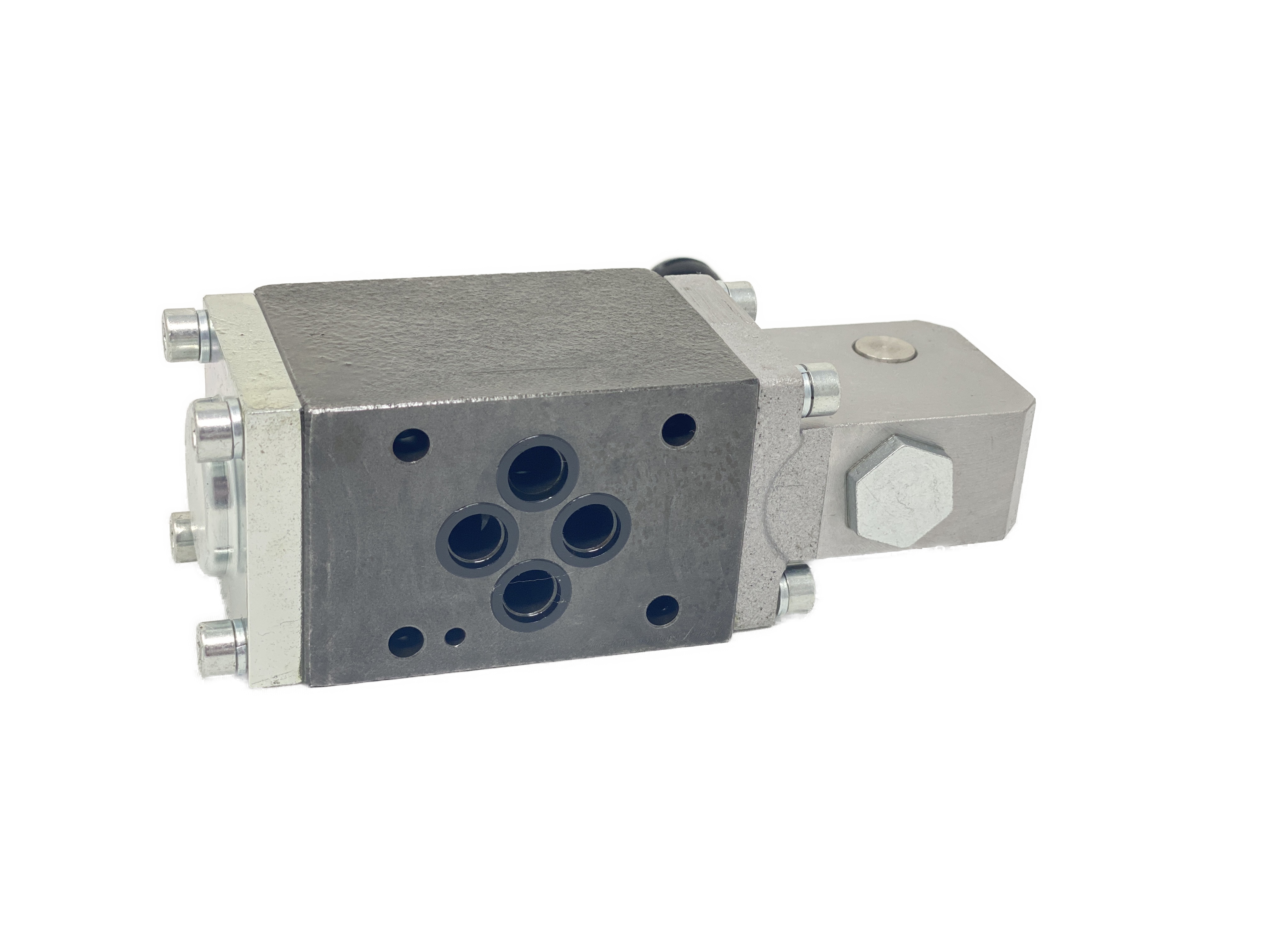

Valve Interface D03 (NG6)
Flow Rating 21
Pressure Rating 5100
Actuation Type Lever Operated

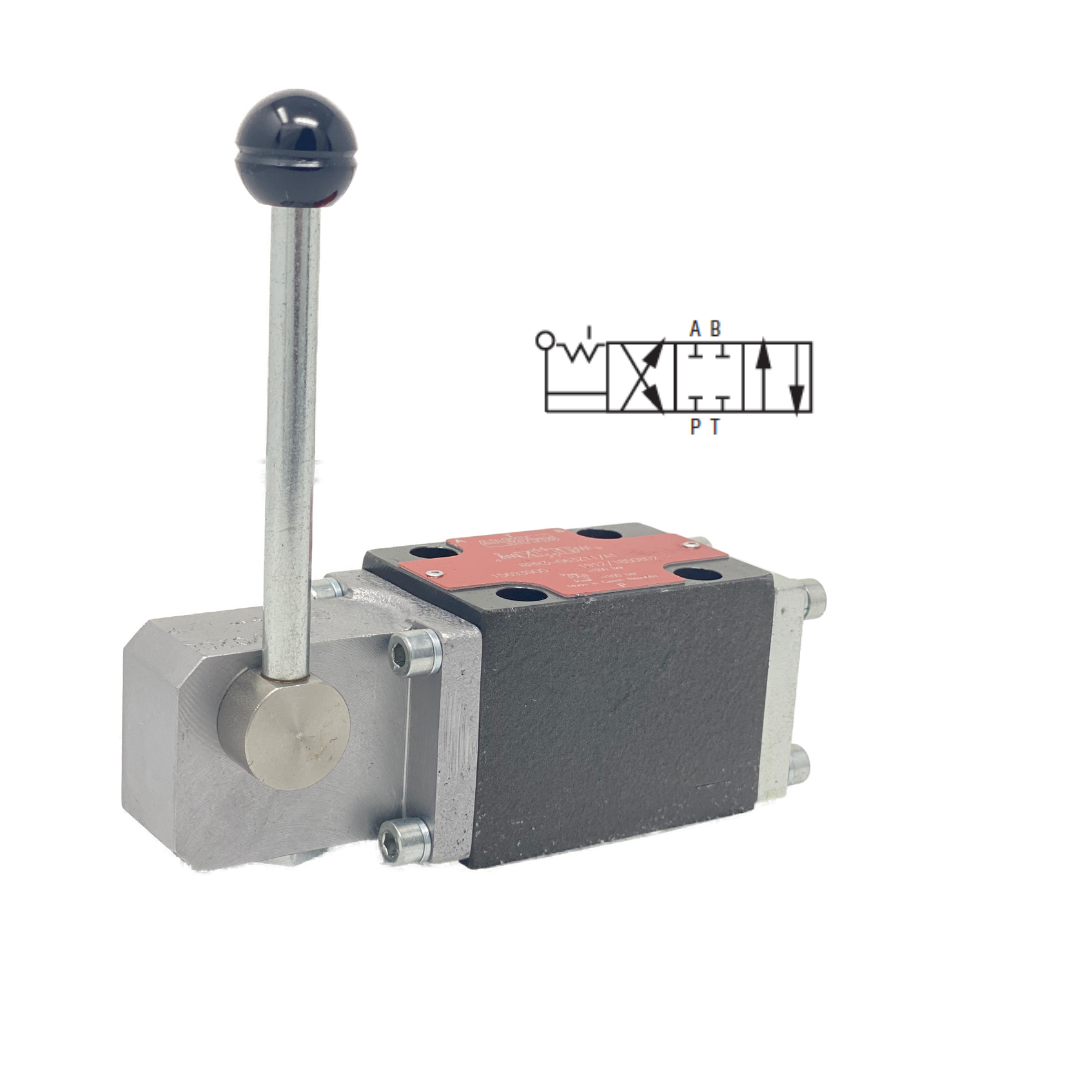

Spool Configuration Cylinder Spool, All Ports Blocked in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Czech Republic
Height 5.51
Length 5.28
Width 1.77
Weight 3.53

Description

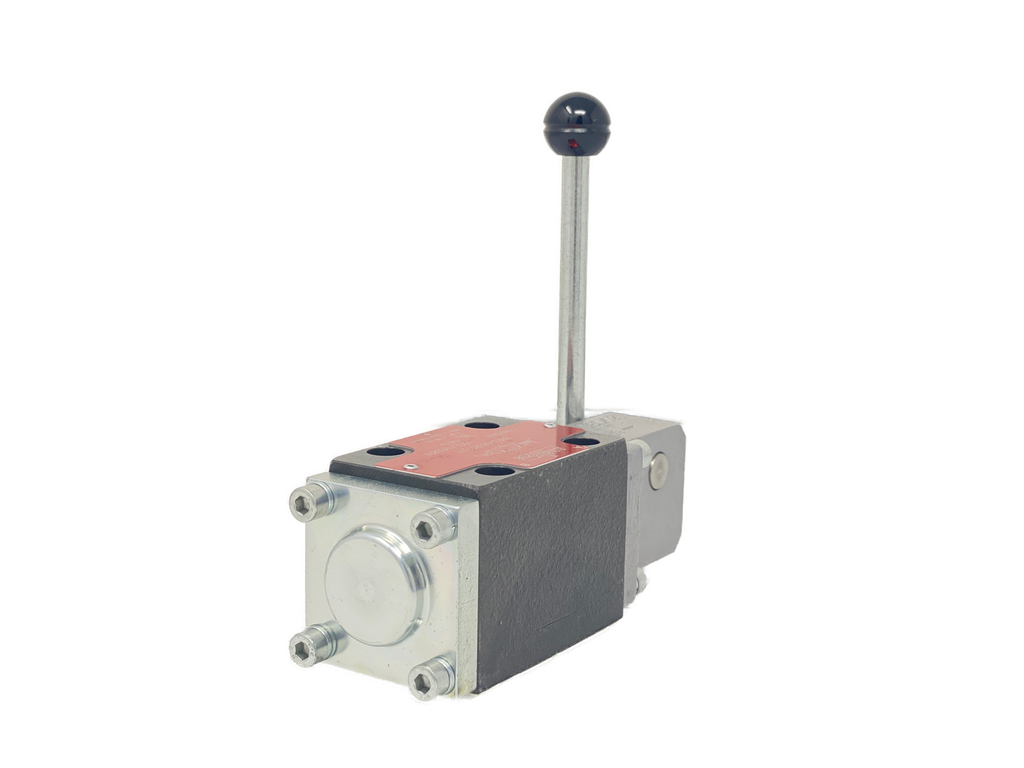

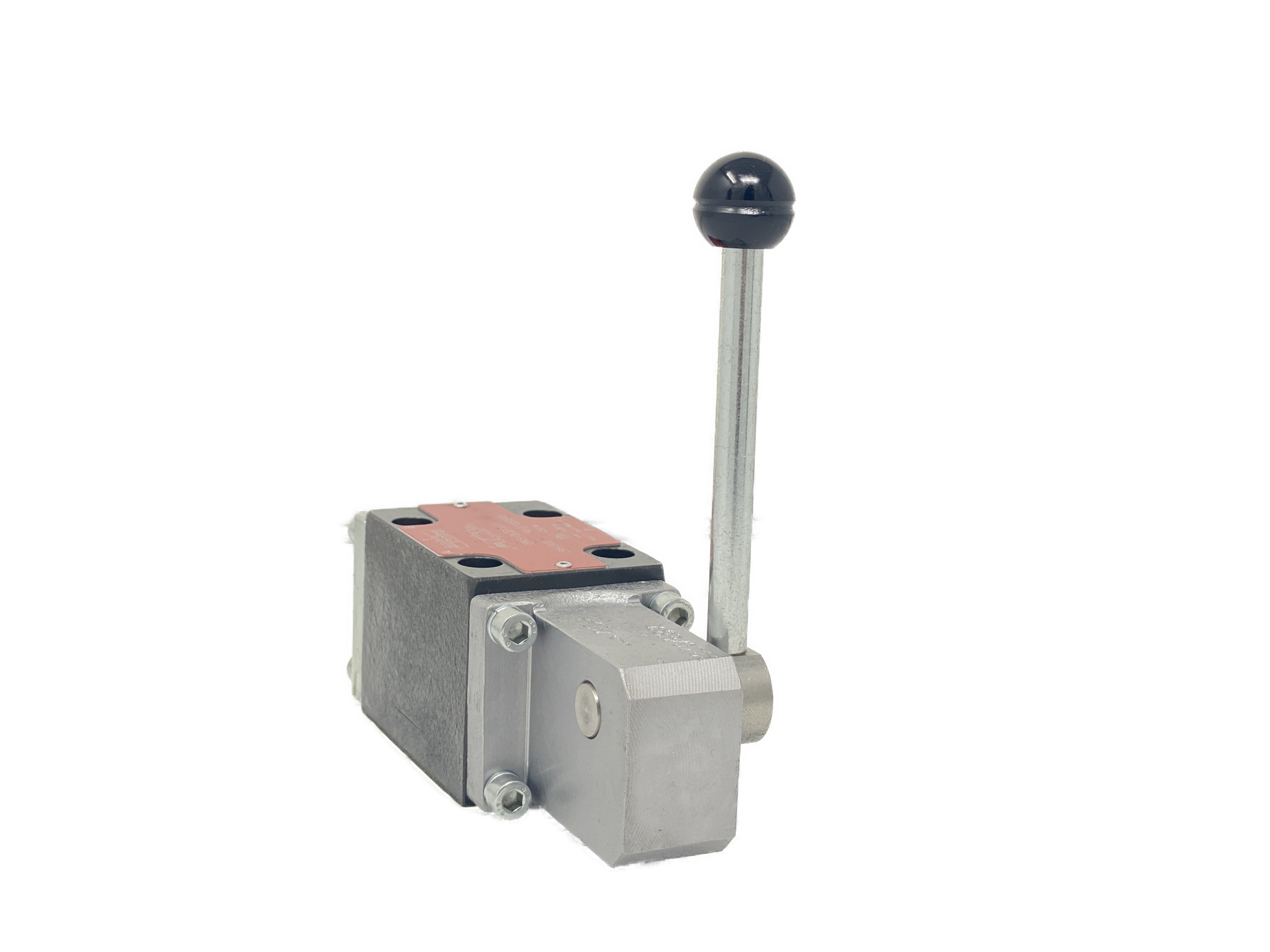

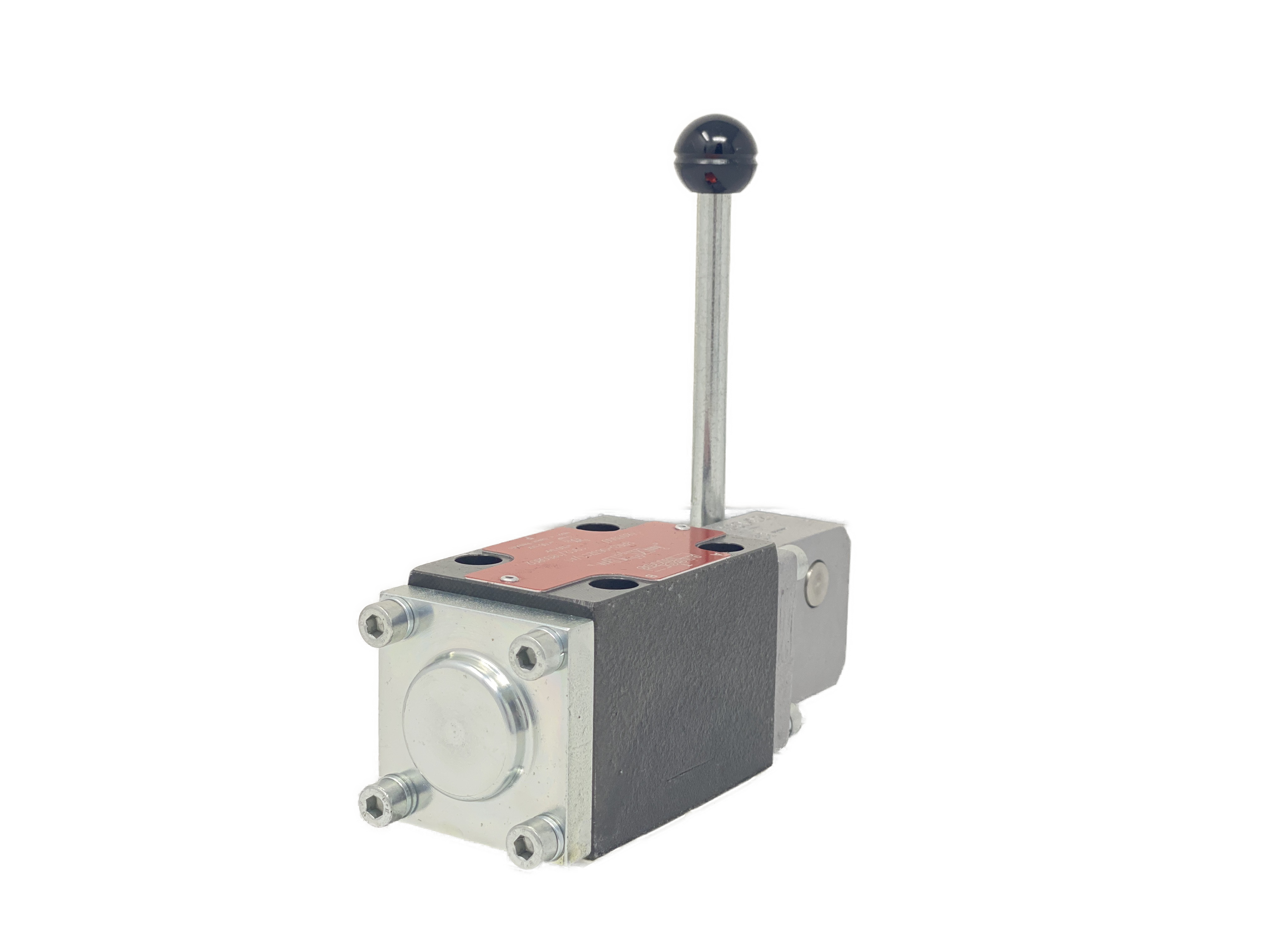

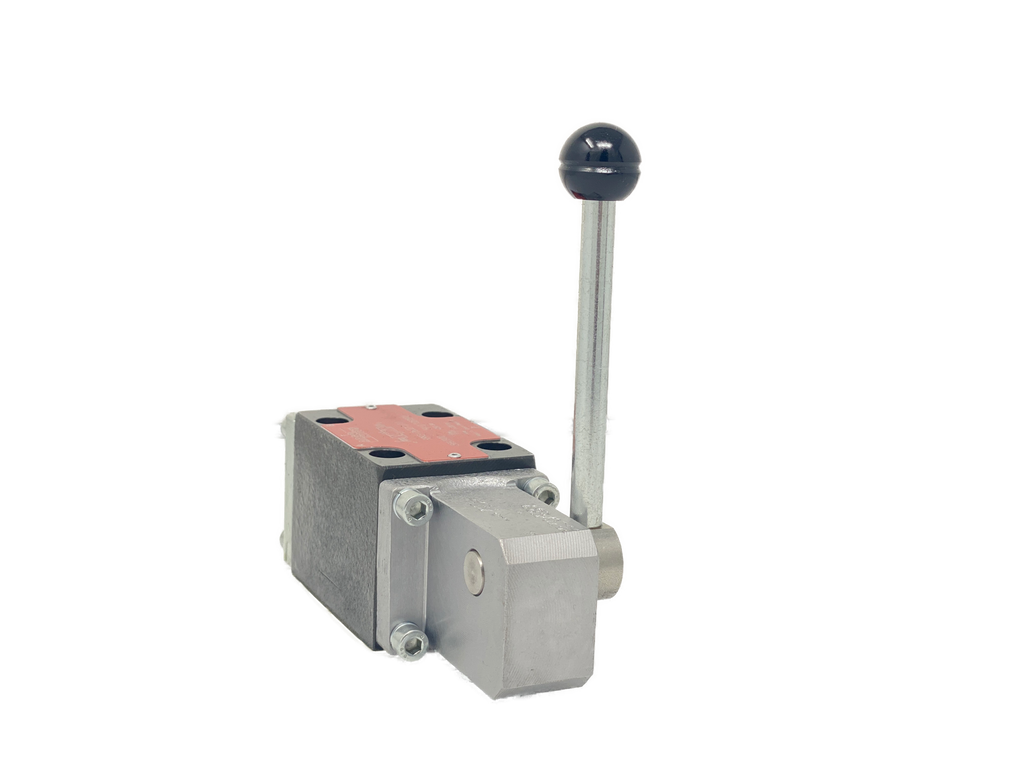

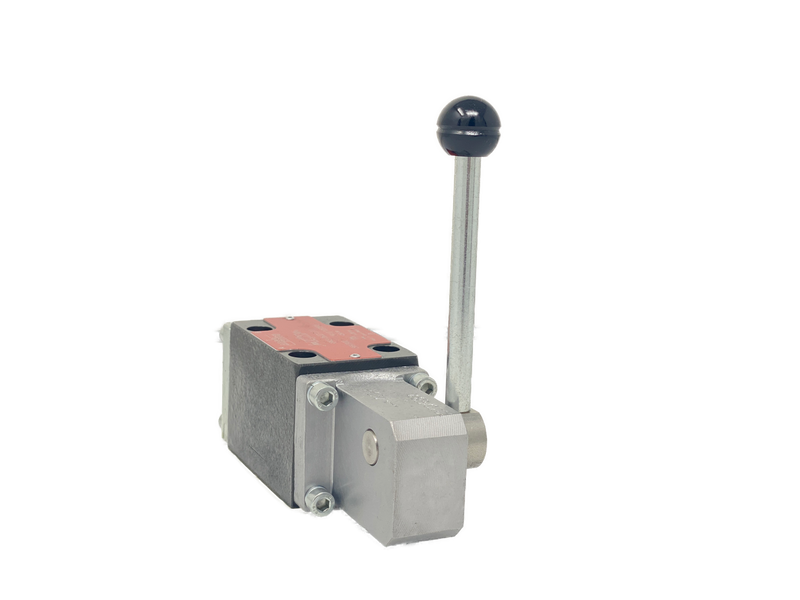

The Argo-Hytos direct-acting, manually operated directional control valve with Subplate Mounting is designed to interface according to ISO 4401. Rated up to 5100psi, this valve has optimized design for minimal pressure drop. The manual lever and actuation element can be rotated in 90-degree increments for flexible installation. A wide range of spool options, as well as spring-centered or detented options, are available fo rall spool types.
