Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | 5000 |
| Series | 1501-L-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 1/8-27 (-02) |
| Side 1 Type | NPT |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1/8-27 (-02) |
| Side 2 Type | NPT |
Description

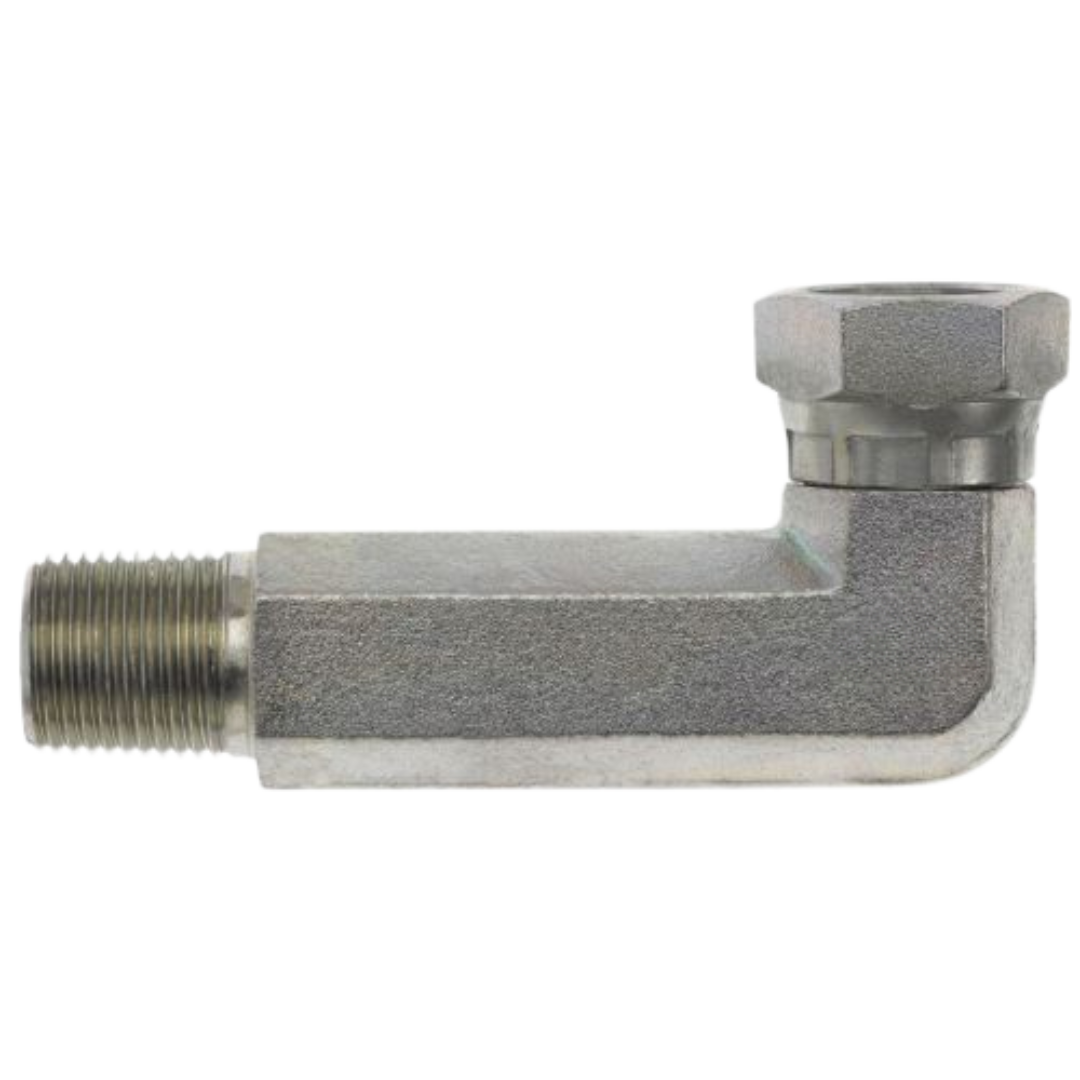

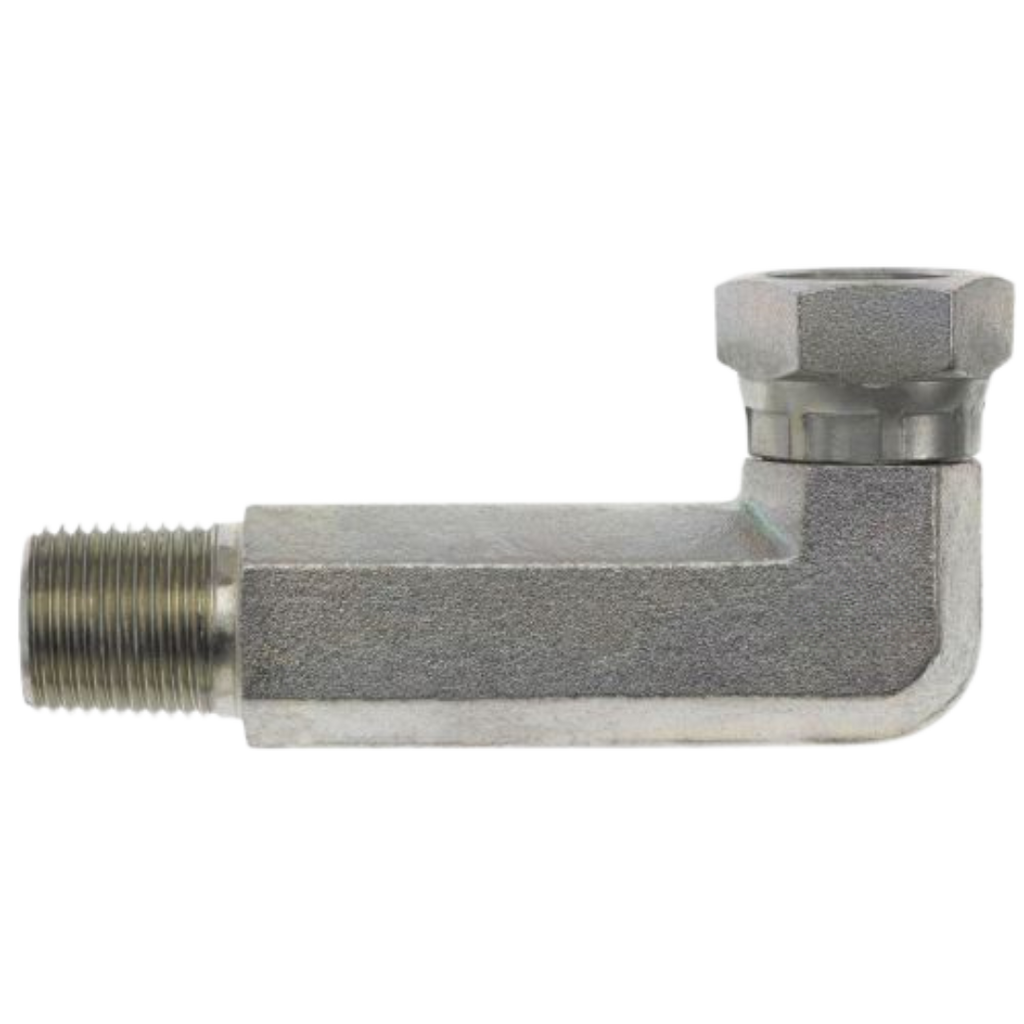

The Series 1501-L 90-Degree Angled Long Male NPTF x Female NPSM swivel adapters are high-performance carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems, especially where extra length is required for proper installation. These adapters feature a 90-degree angle, allowing for efficient hose and pipe routing in tight spaces. One end is equipped with a male NPTF (National Pipe Tapered Fuel) thread, providing a reliable, leak-tight seal by deforming the tapered threads, while the other end features a female NPSM (National Pipe Straight Mechanical) thread, which requires a gasket or sealant to ensure a secure, leak-free connection. The key difference between NPTF and NPSM is that NPTF threads form a metal-to-metal seal, providing a leak-tight connection without sealants, while NPSM threads rely on an additional sealing element like a gasket. The swivel feature allows for easy adjustment and installation, making these adapters perfect for high-pressure fluid power systems. Made from durable carbon steel, the Series 1501-L offers exceptional strength, corrosion resistance, and long-lasting performance in demanding industrial environments.
