Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Stock | 13 |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | 1250 |
| Series | 1501-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 1-1/2-11-1/2 (-24) |
| Side 1 Type | NPT |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1-1/2-11-1/2 (-24) |
| Side 2 Type | NPT |
Description

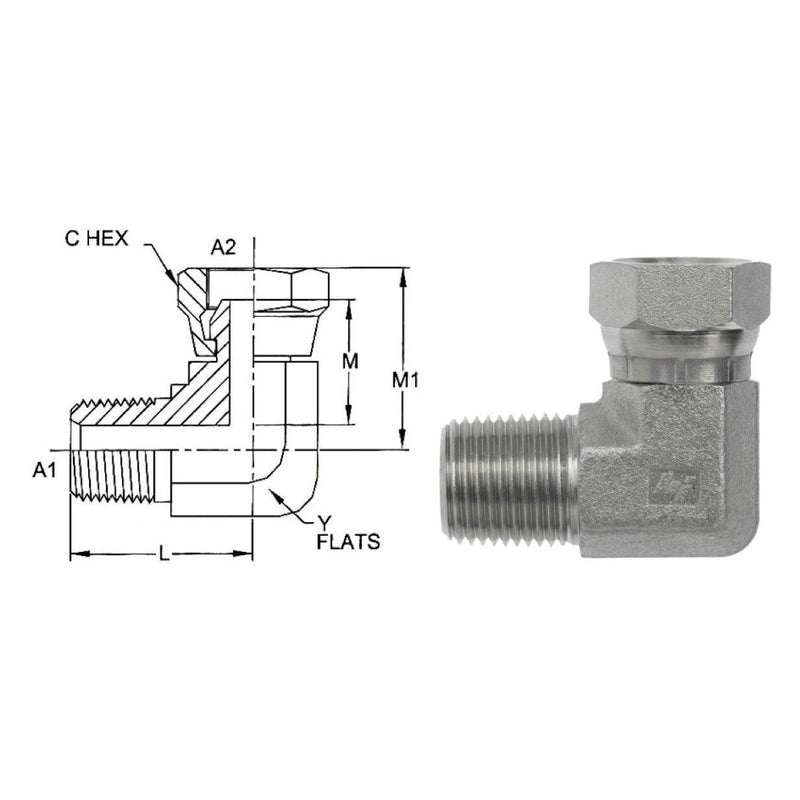

The Series 1501 90-Degree Angled Male NPTF x Female NPSM swivel adapters are high-quality carbon steel fittings designed for secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for efficiently routing hoses and pipes in tight spaces. One end has a male NPTF (National Pipe Tapered Fuel) thread, which provides a precise seal through the tight fit of its threads, while the other end features a female NPSM (National Pipe Straight Mechanical) thread, which is designed for a metal-to-metal seal when connected. The key difference between NPTF and NPSM is that NPTF threads are designed for a leak-tight seal without the need for sealant, while NPSM threads are used in mechanical applications and require a gasket or sealant to ensure a leak-free connection. The swivel feature on these adapters allows for flexible installation, making them ideal for high-pressure fluid transfer systems. Made from durable carbon steel, these adapters provide strength, reliability, and long-lasting performance in demanding industrial environments.
