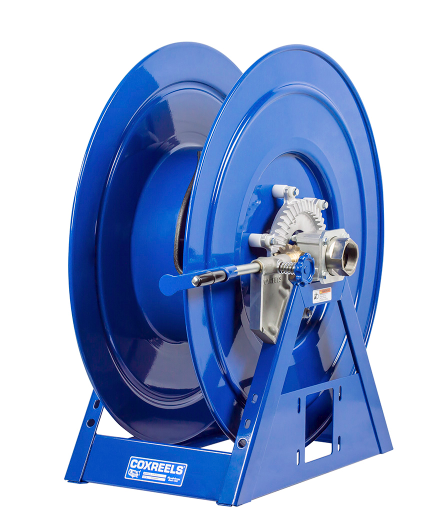

1195-2428-EAV3-BUXX : Coxreels 1195-2428-EAV3-BUXX Electric 115V AC EX Motor Rewind Hose Reel, 2" ID, 90' capacity, 1:3 idler gear, NO HOSE, 1500psi, with 90-deg Swivel

COXReelsSKU: 1195-2428-EAV3-BUXX
4-6 Weeks

Price:
Sale price$2,718.99

Product Details

Usually Ships Within 4-6 Weeks
Factory Location Tempe, Arizona
Material Steel
Pressure Rating 1500
Inside Diameter 2"
Hose Outside Diameter 2.5625 (2-9/16")
Seal Material AFLAS
Height 30.25
Length 28
Width 37.25
Weight 195

Description

Coxreels 1195-2428-EAV3-BUXX Electric 115V AC Explosion Proof Motor Rewind Hose Reel: 2" I.D., 90' hose capacity, 1:3 ratio idler gear, without hose, 1500 PSI, upgraded 90 degree swivel

Retraction Method Motor Driven
Reel Type Hose
Reel Design A-Shaped Frame
Reel Mount Type Floor, Wall, Vehicle Mounting
Swivel/Slip Ring External fluid path with electroless nickel plated steel 90-Degree full-flow NPT swivel inlet, Swivel Seals: AFLAS
Material Steel
Seal Material AFLAS
Swivel Material Electroless Nickel Plated Steel
Bearings Lubricated Horizontal Surface Mount Bearings
Finish Powder Coated
Max Temp 250 Degrees F
Design & Structure All welded steel A-frame construction for superior reel structure, Exclusive low profile outlet riser and open drum slot design for flat smooth hose wrap, Robust lubricated horizontal surface mount bearings for easy rotation, Adaptor for Victaulic connect
Retraction Reliable chain and sprocket drive on motor driven models, Bevel geared crank rewind (On models with suffix -C) See Motor Options Chart
Signature Features Professional grade heavy duty steel construction, Durable proprietary CPC powder coat process, Rolled edges and ribbed discs provide strength and safety, Leading 2-year manufacturer's limited warranty, Made in the USA.
Feature 1 SWIVEL - Electroless nickel plated steel 90-degree full-flow NPT swivel with ball bearings for fast and easy hose installation. No need to remove the reel from its mount.
Feature 2 CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
Feature 3 OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
Feature 4 A-Frame - Sturdy one piece, all CNC robotically welded 12 Gage steel A-Frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
Feature 5 PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
Feature 6 OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and electrical 115 V AC, 1/2 HP reversable AC rectified motor.
Hose Inside Diameter 2"
Hose Outside Diameter 2.5625 (2-9/16")
Hose Length 90'
Reel Hose Ends 2" MNPT
Pressure Rating 1,500.00 PSI
Optional Capacity ID 1.5 (1-1/2")
Optional Capacity OD 2.0625 (2-1/16")
Length with Optional Capacity 135'
Reel Inlet 2" FNPT
Hose/Cord/Cable Included No
Weight in lbs 195.00
Length 28.00 Inches
Width 37.25 Inches
Height 30.25 Inches
Reel Accessories 15368-1-9.5 (Top Rewind 4-Way Roller Bracket); 15370-9.5 (Bottom Rewind 4-Way Roller Bracket); 20843 (Spring Loaded Lock Pin);

Coxreels 1195 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels
