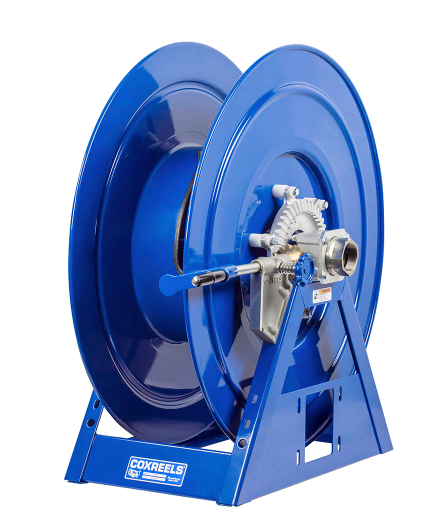

1195-1728-C : Coxreels 1195-1728-C Beveled Gear Hand Crank Hose Reel, 2" ID, 60' capacity, NO HOSE, 1000psi

COXReelsSKU: 1195-1728-C
4-6 Weeks

Price:
Sale price$1,631.99

Product Details

Usually Ships Within 4-6 Weeks
Factory Location Tempe, Arizona
Material Steel
Pressure Rating 1000
Inside Diameter 2"
Hose Outside Diameter 2.5625 (2-9/16")
Seal Material Nitrile
Height 30.25
Length 28
Width 33.25
Weight 137

Description

Coxreels 1195-1728-C Beveled Gear Hand Crank Hose Reel: 2" I.D., 60' hose capacity, without hose, 1000 PSI

Retraction Method Hand Crank
Reel Type Hose
Reel Design A-Shaped Frame
Reel Mount Type Floor, Wall, Vehicle Mounting
Swivel/Slip Ring External fluid path with in-line electroless nickel plated steel full-flow NPT swivel inlet, Swivel Seals: NITRILE
Material Steel
Seal Material Nitrile
Swivel Material Electroless Nickel Plated Steel
Bearings Lubricated Horizontal Surface Mount Bearings
Finish Powder Coated
Max Temp 250 Degrees F
Design & Structure All welded steel A-frame construction for superior reel structure, Exclusive low profile outlet riser and open drum slot design for flat smooth hose wrap, Robust lubricated horizontal surface mount bearings for easy rotation, Adaptor for Victaulic connect
Retraction Reliable chain and sprocket drive on motor driven models, Bevel geared crank rewind (On models with suffix -C) See Motor Options Chart
Signature Features Professional grade heavy duty steel construction, Durable proprietary CPC powder coat process, Rolled edges and ribbed discs provide strength and safety, Leading 2-year manufacturer's limited warranty, Made in the USA.
Feature 1 SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
Feature 2 CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
Feature 3 OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
Feature 4 A-Frame - Sturdy one piece, all CNC robotically welded 12 Gage steel A-Frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
Feature 5 PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
Feature 6 OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and front bevel geared crank for easy mechanical retraction.
Hose Inside Diameter 2"
Hose Outside Diameter 2.5625 (2-9/16")
Hose Length 60'
Reel Hose Ends 2" MNPT
Pressure Rating 1,000.00 PSI
Optional Capacity ID 1.5 (1-1/2")
Optional Capacity OD 2.0625 (2-1/16")
Length with Optional Capacity 85'
Reel Inlet 2" FNPT
Hose/Cord/Cable Included No
Weight in lbs 137.00
Length 28.00 Inches
Width 33.25 Inches
Height 30.25 Inches
Reel Accessories 15368-1-13.5 (Top Rewind 4-Way Roller Bracket); 15370-13.5 (Bottom Rewind 4-Way Roller Bracket); 20843 (Spring Loaded Lock Pin); 8176 (Gear Guards - for motor driven only); 20883 (Vapor Proof Junction Box); 20876 (Sealed Push Button Switch); 20877 (Soleno

Coxreels 1195 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels
