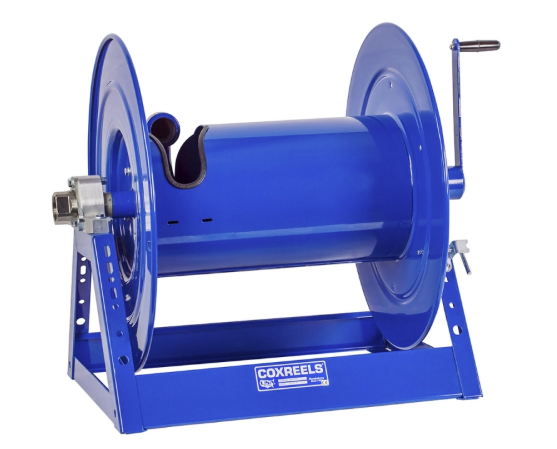

1185-3324-AB : Coxreels 1185-3324-AB #6 Gast Air Motor Rewind Hose Reel, 1 1/2" ID, 175' capacity, NO HOSE, 1500psi

COXReelsSKU: 1185-3324-AB
4-6 Weeks

Price:
Sale price$1,733.99

Product Details

Usually Ships Within 4-6 Weeks
Factory Location Tempe, Arizona
Material Steel
Pressure Rating 1500
Inside Diameter 1.5 (1-1/2")
Hose Outside Diameter 2.0625 (2-1/16")
Seal Material Nitrile
Height 26
Length 24
Width 44.88
Weight 162

Description

Coxreels 1185-3324-AB #6 Gast Air Motor Rewind Hose Reel: 1 1/2-inch I.D., 175' hose capacity, without hose, 1500 PSI

Retraction Method Motor Driven
Reel Type Hose
Reel Design A-Shaped Frame
Reel Mount Type Floor, Wall, Vehicle Mounting
Swivel/Slip Ring External fluid path with in-line aluminum straight, full flow NPT swivel inlet, Swivel Seals: NITRILE, External fluid path with electroless nickel plated steel 90-Degree full-flow NPT swivel inlet (On high pressure models with suffix -BUXX), Swivel Seals:
Material Steel
Seal Material Nitrile
Swivel Material Electroless Nickel Plated Steel
Bearings Lubricated Horizontal Surface Mount Bearings
Finish Powder Coated
Max Temp 250 Degrees F
Design & Structure All welded steel A-frame construction for superior reel structure, Exclusive low profile outlet riser and open drum slot design for flat smooth hose wrap, Robust lubricated horizontal surface mount bearings for easy rotation, Adjustable tension brake to p
Retraction Reliable chain and sprocket drive on motor driven models, Solid steel direct hand crank with smooth round handle, See Motor Options Chart
Signature Features Professional grade heavy duty steel construction, Durable proprietary CPC powder coat process, Rolled edges and ribbed discs provide strength and safety, Leading 2-year manufacturer's limited warranty, Made in the USA.
Feature 1 SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
Feature 2 CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
Feature 3 OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
Feature 4 A-Frame - Sturdy one piece, all CNC robotically welded 12 Gage steel A-Frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
Feature 5 PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
Feature 6 OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and aluminium body air - 6VANE motor
Hose Inside Diameter 1.5 (1-1/2")
Hose Outside Diameter 2.0625 (2-1/16")
Hose Length 175'
Reel Hose Ends 1.5 (1-1/2") MNPT
Pressure Rating 1,500.00 PSI
Optional Capacity ID 1.25 (1-1/4")
Optional Capacity OD 1.8215 (1-13/16")
Length with Optional Capacity 225'
Reel Inlet 1.5 (1-1/2") FNPT
Hose/Cord/Cable Included No
Weight in lbs 162.00
Length 24.00 Inches
Width 44.88 Inches
Height 26.00 Inches
Reel Accessories 15369-1-25 (Top Rewind 4-Way Roller Bracket); 15370-1-25 (Bottom Rewind 4-Way Roller Bracket); 15361-25 (Top Rewind 3-Way Roller Brackets); 15364-25 (Bottom Rewing 3-Way Roller); 15730-25 (Pivoting Hose Guide HD, Top Return); 15728-25 (Pivoting Hose Guide

Coxreels 1185 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels
