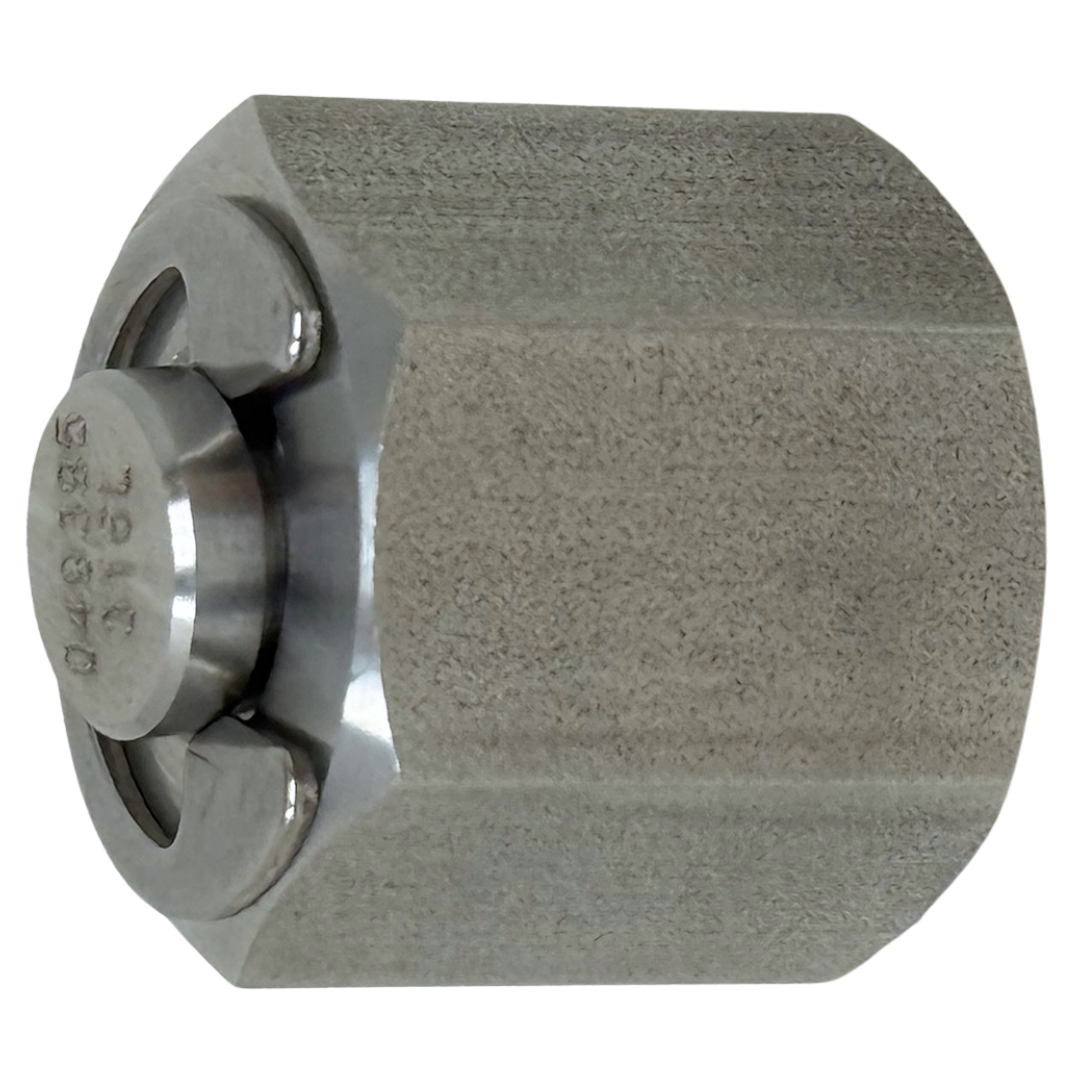

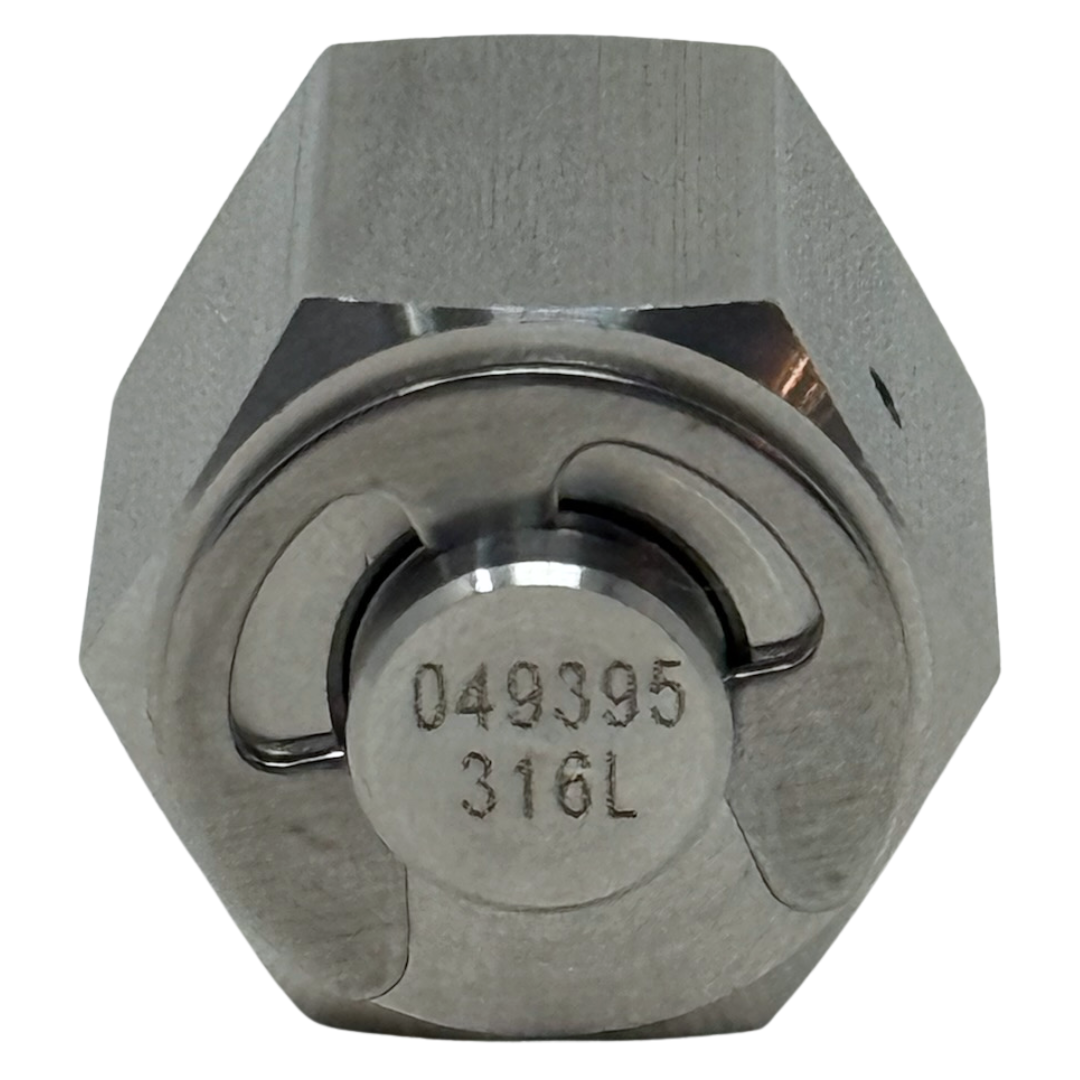

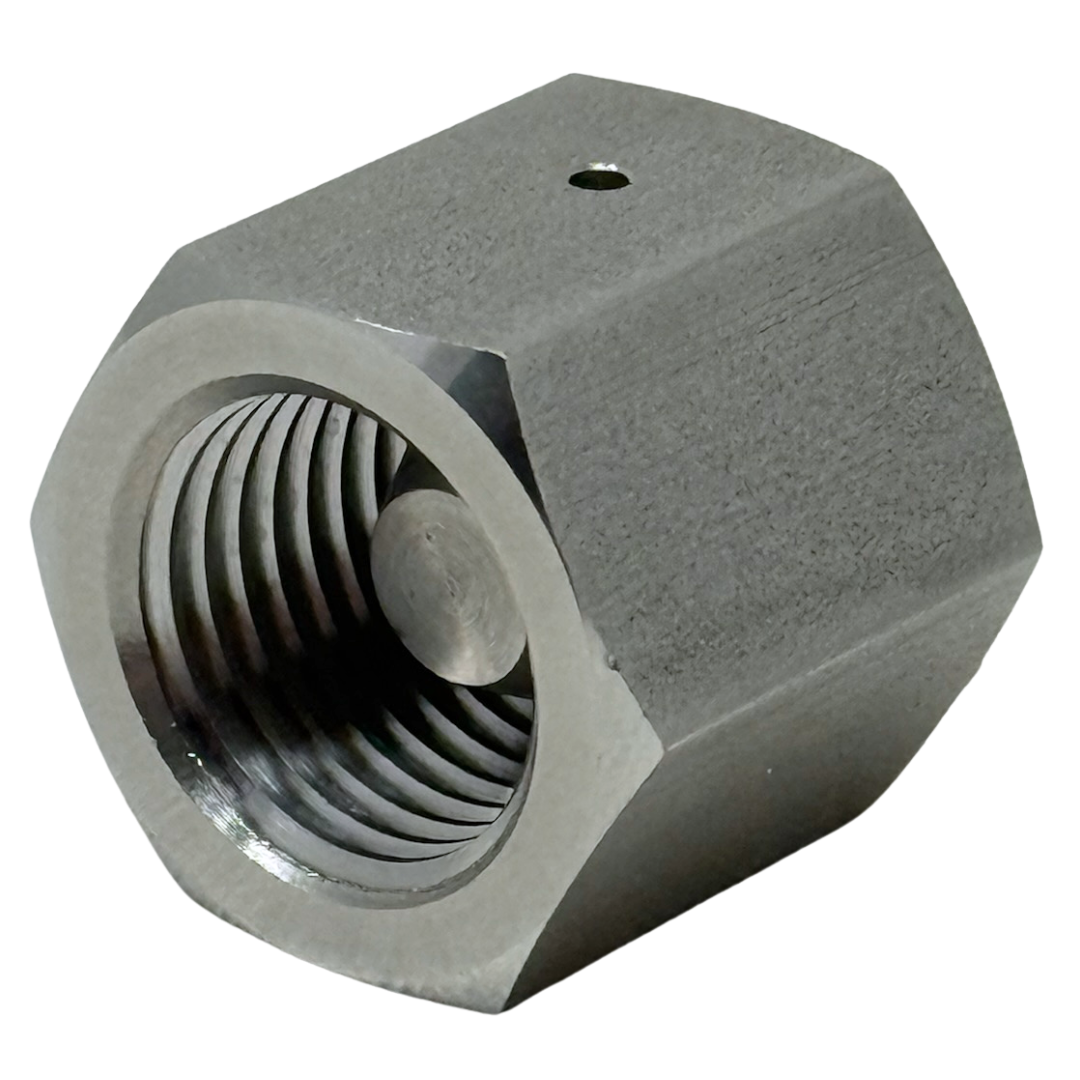

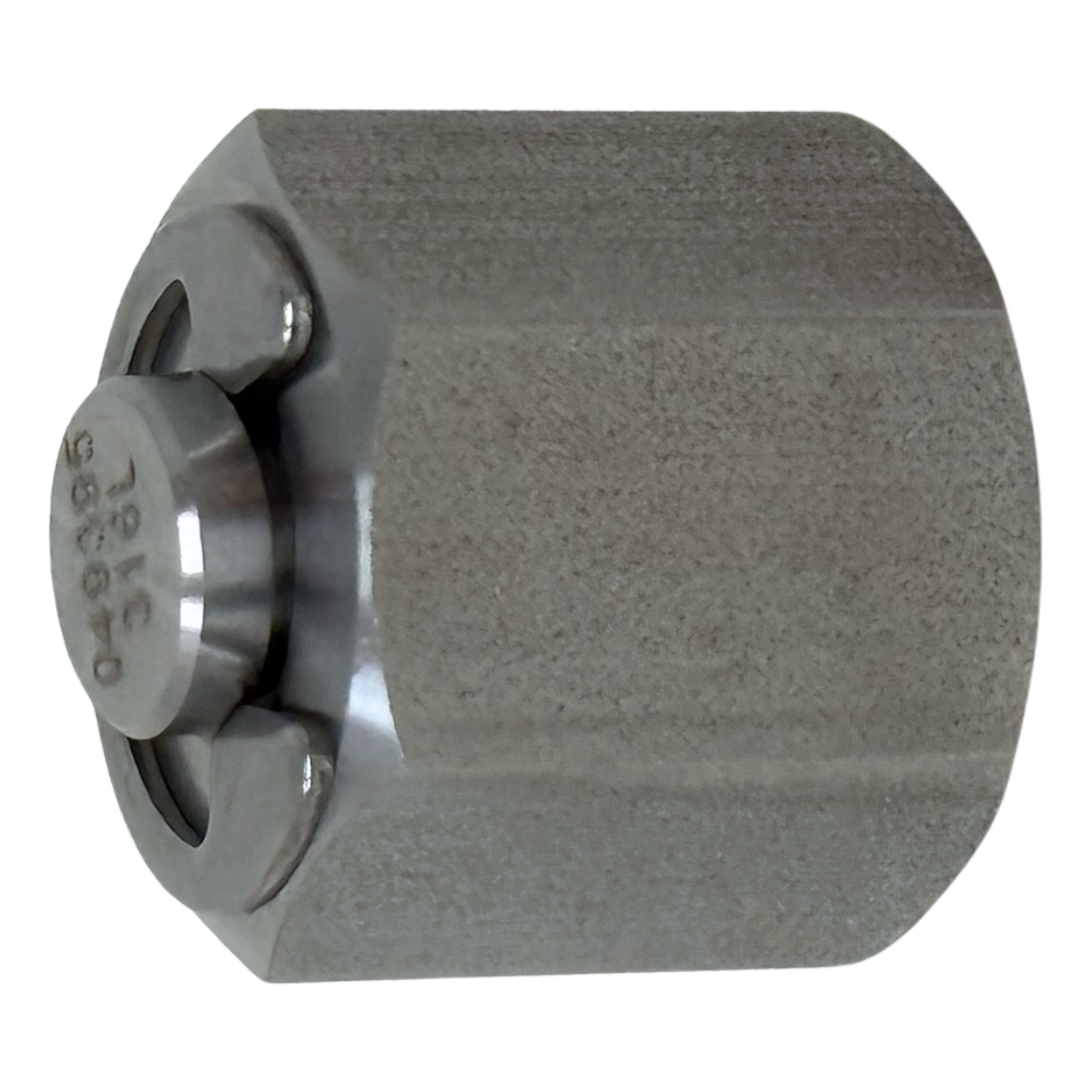

X21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psi
X21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psi
X21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psi
X21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psi
X21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psi
Roll over image to zoom in Click on image to zoom
X21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psiX21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psiX21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psiX21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psiX21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psi

X21TMCAP20-K : OneXtreme Adapter, 1.3125 (1-5/16") Female Type-M Cap, 20,000psi

Save $35.55
OneXtremeSKU: X21TMCAP20-K
4-6 Weeks
Price:
$118.49 $154.04

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Houston, TX
Material 316SS
Pressure Rating 20000
Series OX-TMCAP
Country of Manufacture United States
Height 1.19
Length 1.215
Width 1.19
Weight 0.28
Side 1 Gender FEMALE
Side 1 Size 1.3125 (1-5/16")
Side 1 Type TM
Side 2 Size CAP

Description

The Type M Caps OneXtreme Adapters are ultra-high-pressure protective fittings designed to seal and protect unused Type M (Reverse High Pressure) connections in hydraulic, chemical injection, and high-pressure fluid systems. Designed for use with Type M swivel hose end fittings, these caps utilize a precision 58-degree cone seal to create a secure metal-to-metal connection capable of handling working pressures up to 50,000 psi (3447 bar).

Manufactured from cold worked 316 stainless steel, these Type M caps provide exceptional strength, corrosion resistance, and durability in harsh operating environments while helping protect critical sealing surfaces from contamination, moisture intrusion, and physical damage during operation, maintenance, storage, or transport. OneXtreme Type M caps are precision machined for consistent fit and sealing integrity, with special materials available upon request to meet specific application or environmental requirements.

Warning: Proper cone angle compatibility, thread engagement, and installation torque are critical. Damaged sealing surfaces, improper assembly, or exceeding system limits can result in leaks or catastrophic failure; always verify compatibility with mating components and follow recommended installation procedures before use.
