Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Houston, TX |
| Material | 316SS |
| Pressure Rating | 20000 |
| Series | OX-MPPLUG |
| Country of Manufacture | United States |
| Height | 0.375 |
| Length | 1.0 |
| Width | 0.375 |
| Weight | 0.02 |
| Side 1 Gender | MALE |
| Side 1 Size | 0.25 (1/4") |
| Side 1 Type | MP |
| Side 2 Size | PLUG |
Description

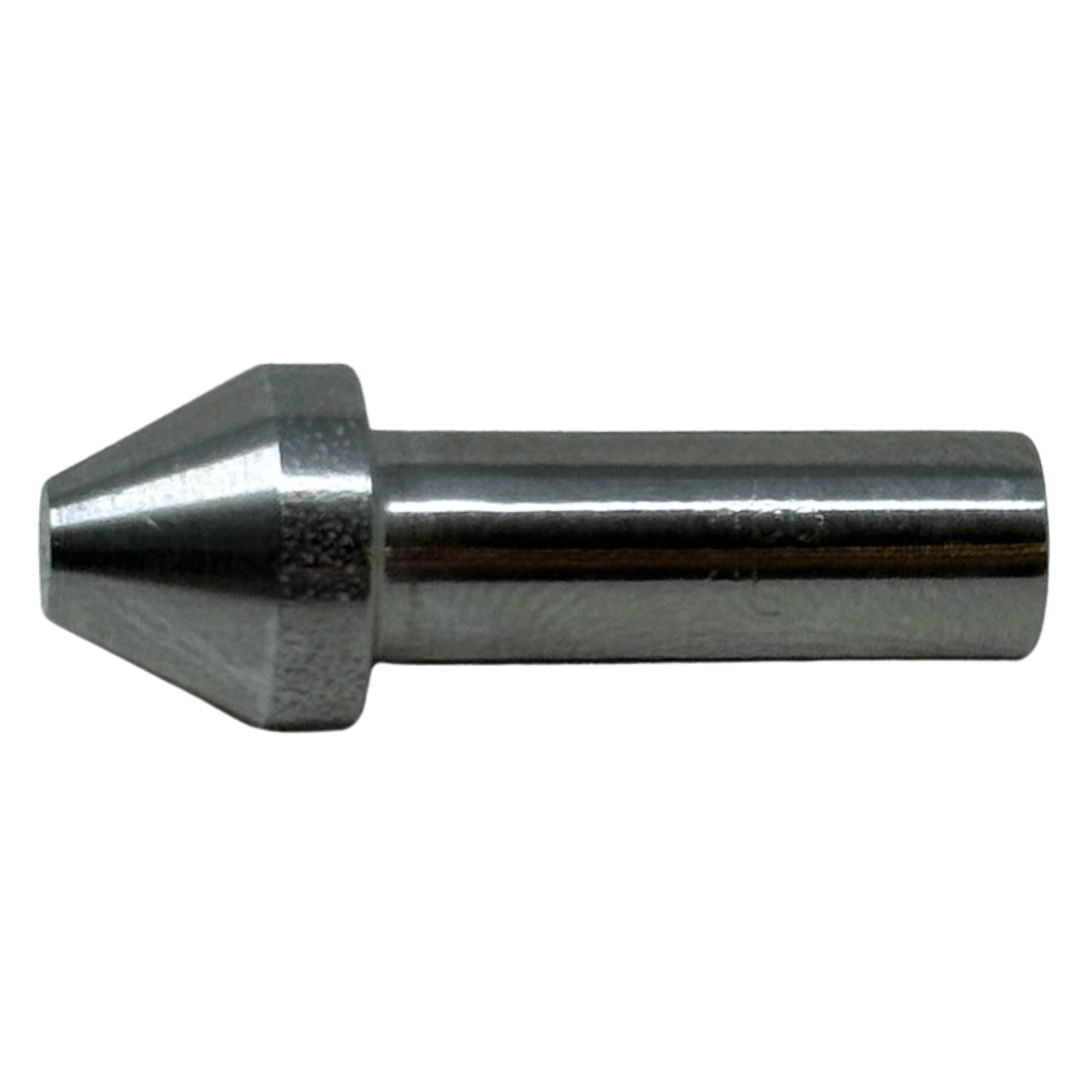

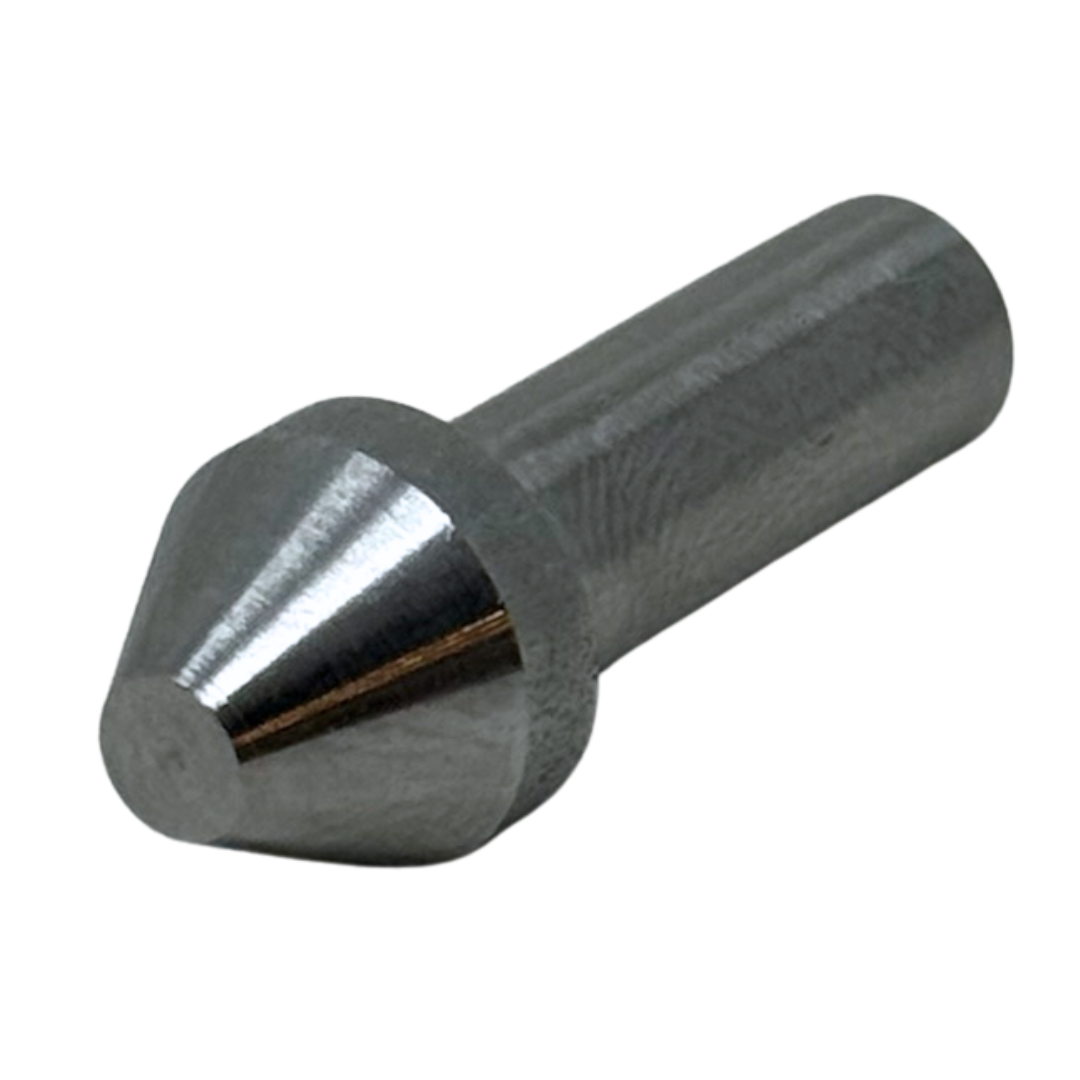

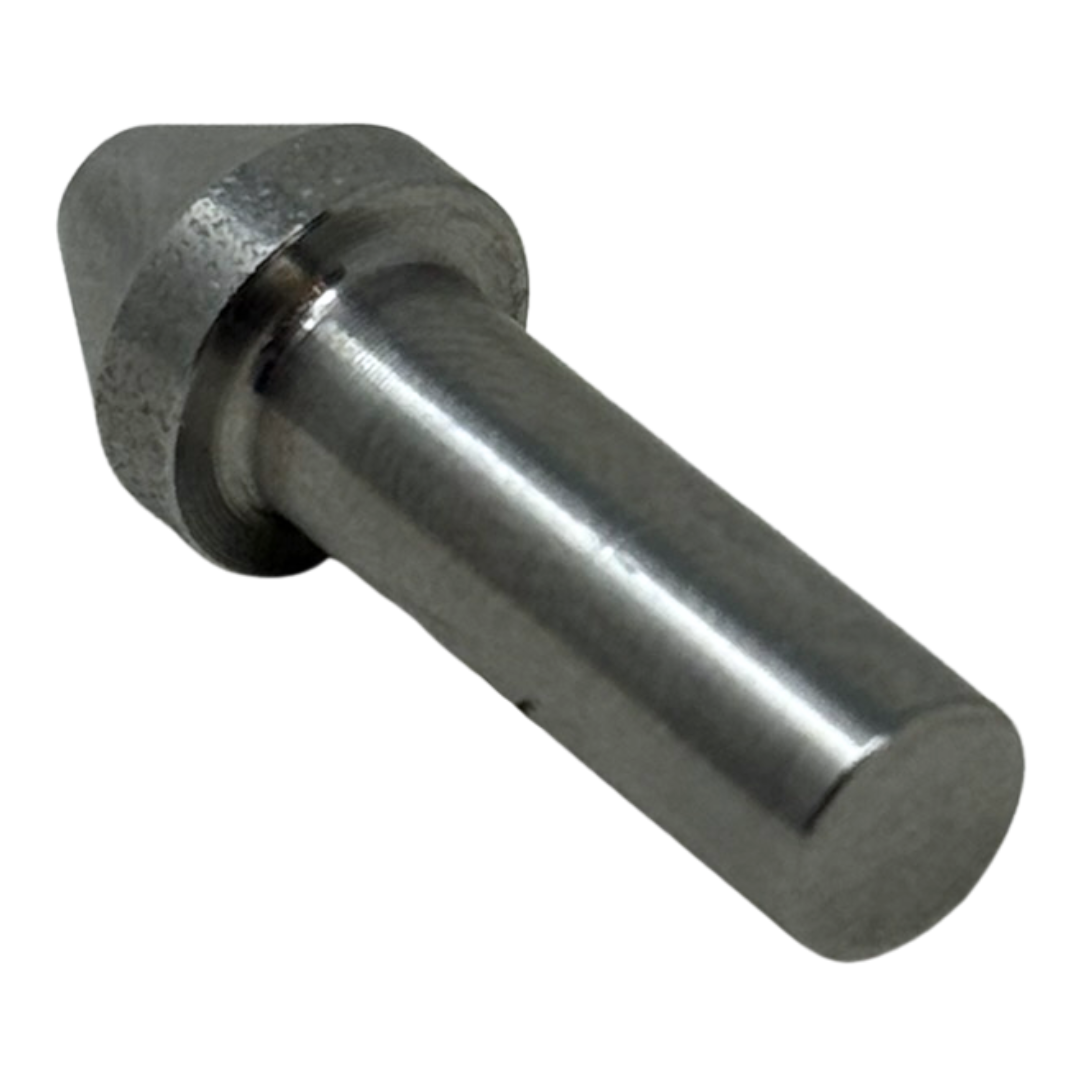

The Medium Pressure Plugs OneXtreme Adapters are precision-engineered fittings designed to securely seal unused medium pressure coned-and-threaded ports in hydraulic, chemical injection, and fluid power systems. These plugs utilize a 60-degree cone and thread connection to create a dependable metal-to-metal seal, making them suitable for applications with working pressures up to 20,000 psi (1379 bar).
Manufactured from cold worked 316 stainless steel, these medium pressure plugs provide exceptional strength, corrosion resistance, and long-term durability in harsh and high-cycle operating environments while helping protect critical system components from leaks, contamination, moisture intrusion, and physical damage. OneXtreme medium pressure plugs are precision machined for consistent fit and sealing integrity, with special materials available upon request to meet specific application or environmental requirements.
Warning: Proper thread and cone compatibility are critical. Using damaged, mismatched, or improperly installed components can compromise sealing performance and system integrity; always verify correct sizing and follow recommended installation and torque practices before use.
