Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Cap |
| Series | 406 |

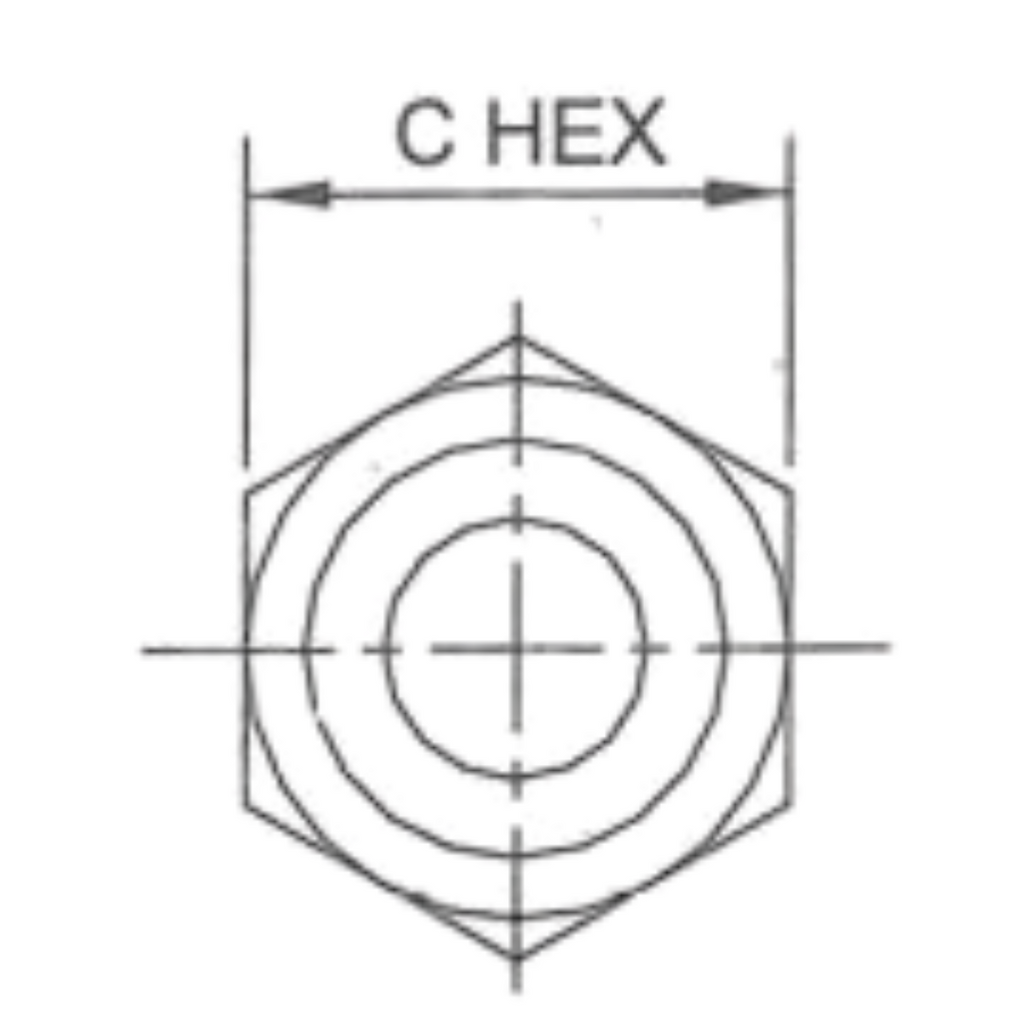

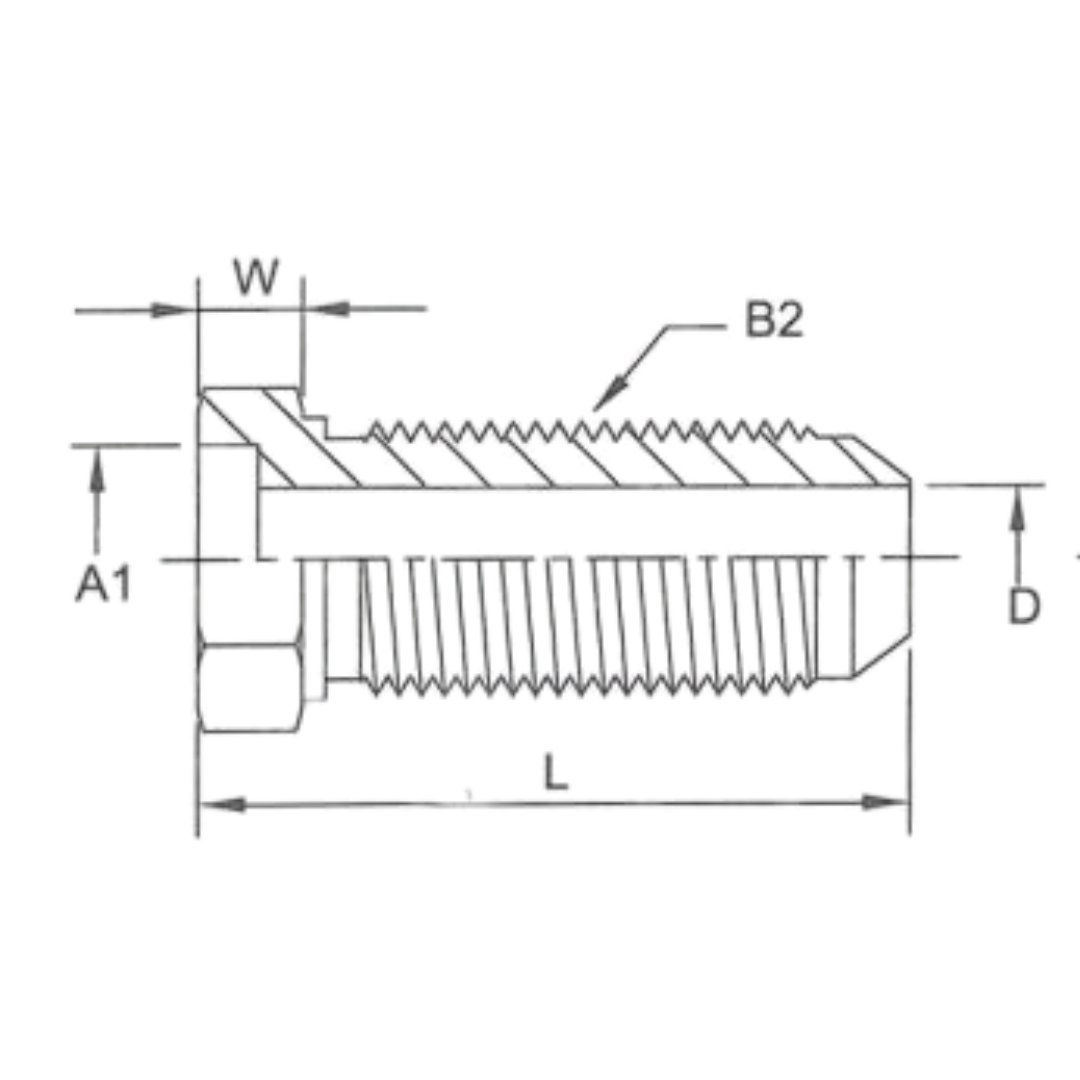

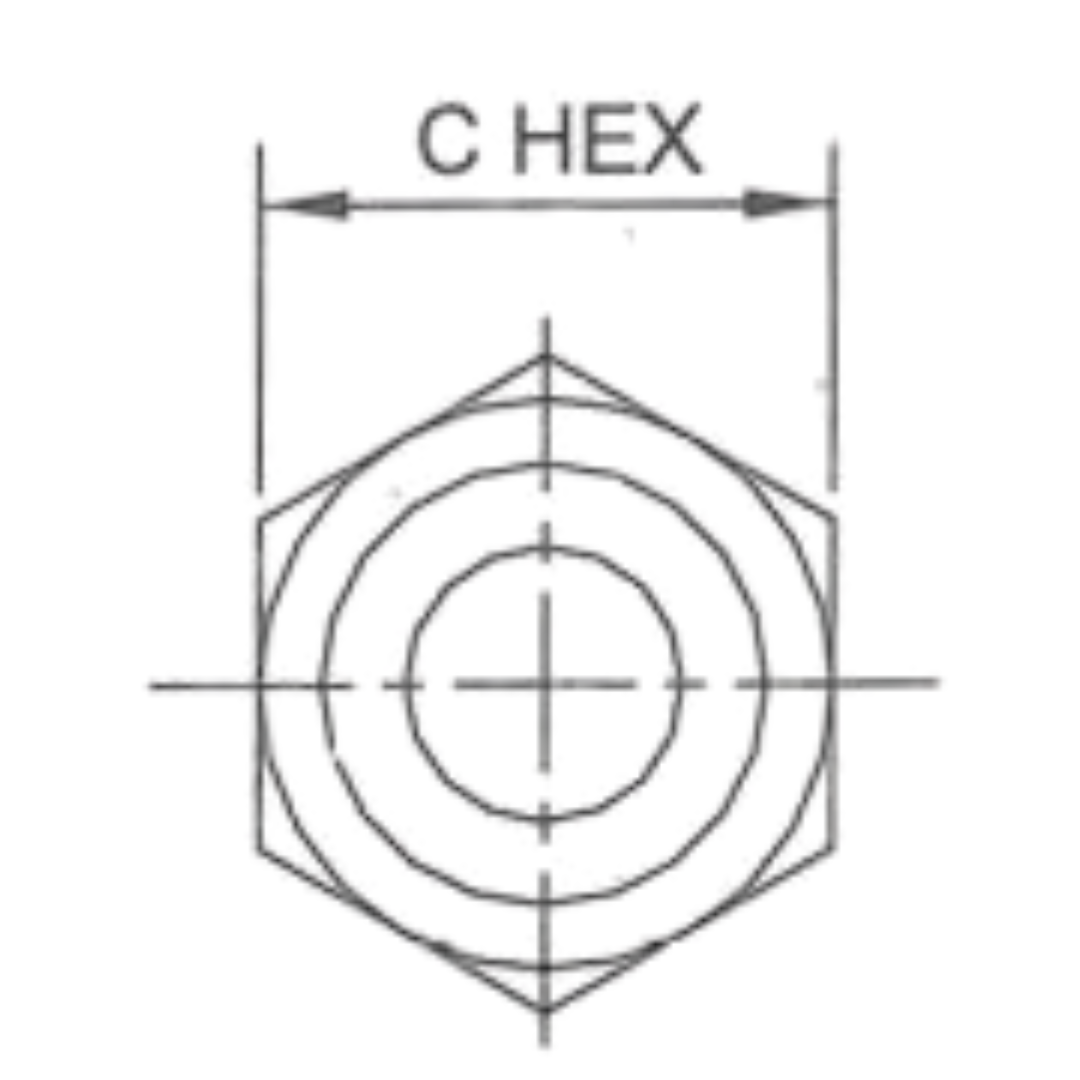

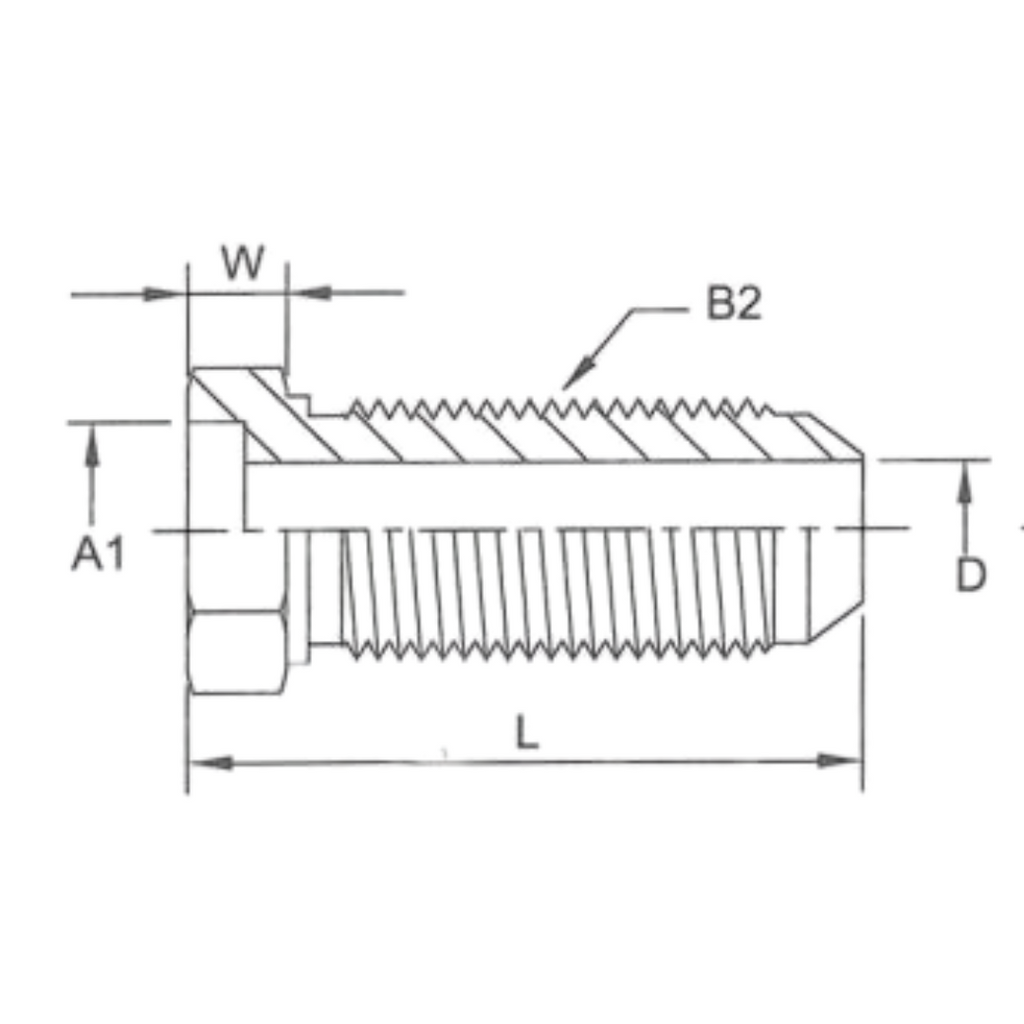

| Special Dims | B2 Threads 1 1/16-12, D Drill 0.609, L Length 2.300, C Hex 1.375, A1 Bore 0.757 |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 0.757 (-12) |
| Side 1 Type | DRILLED BORE |
| Side 2 Gender | MALE |
| Side 2 Size | 1-1/16-12 (-12) |
| Side 2 Type | JIC |
Description

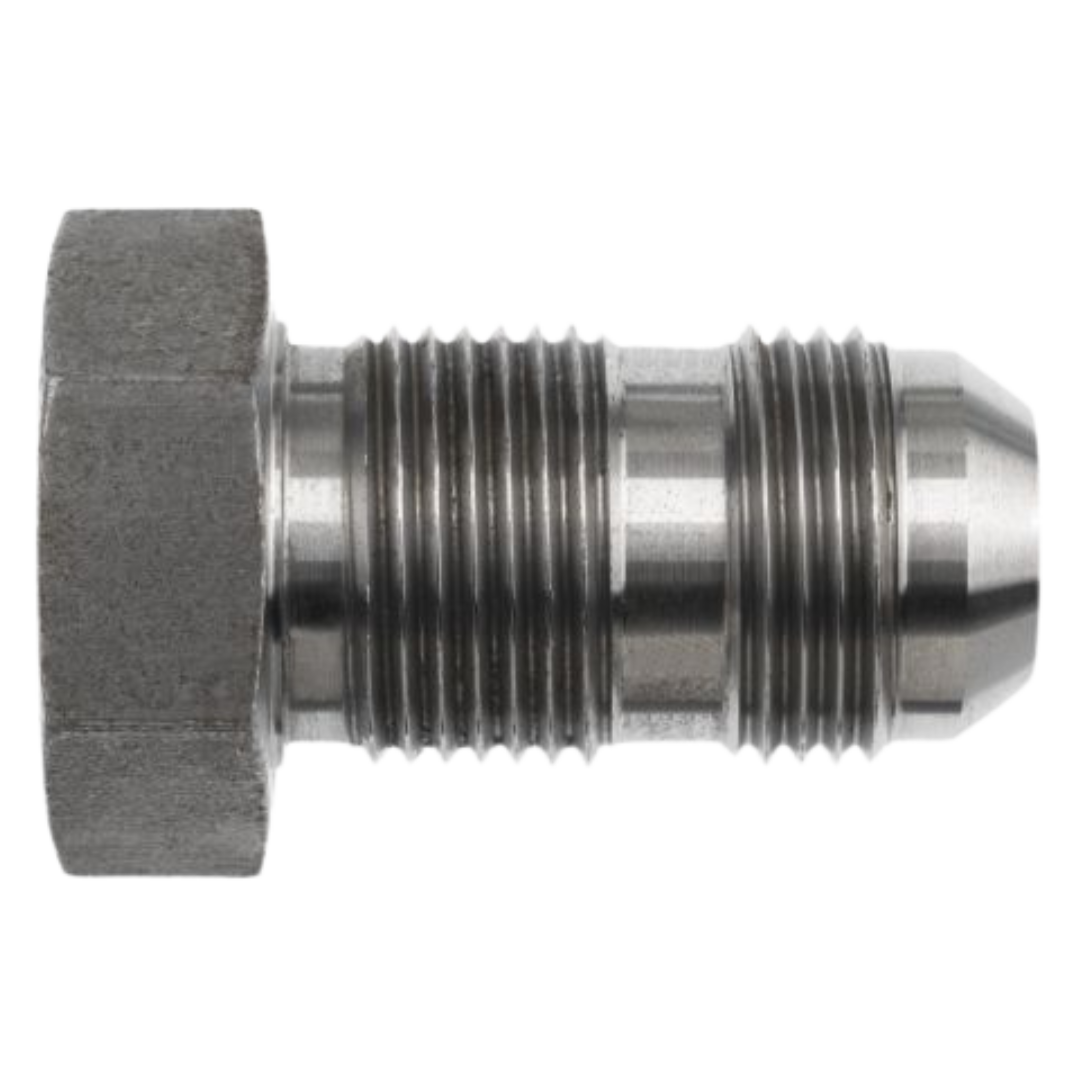

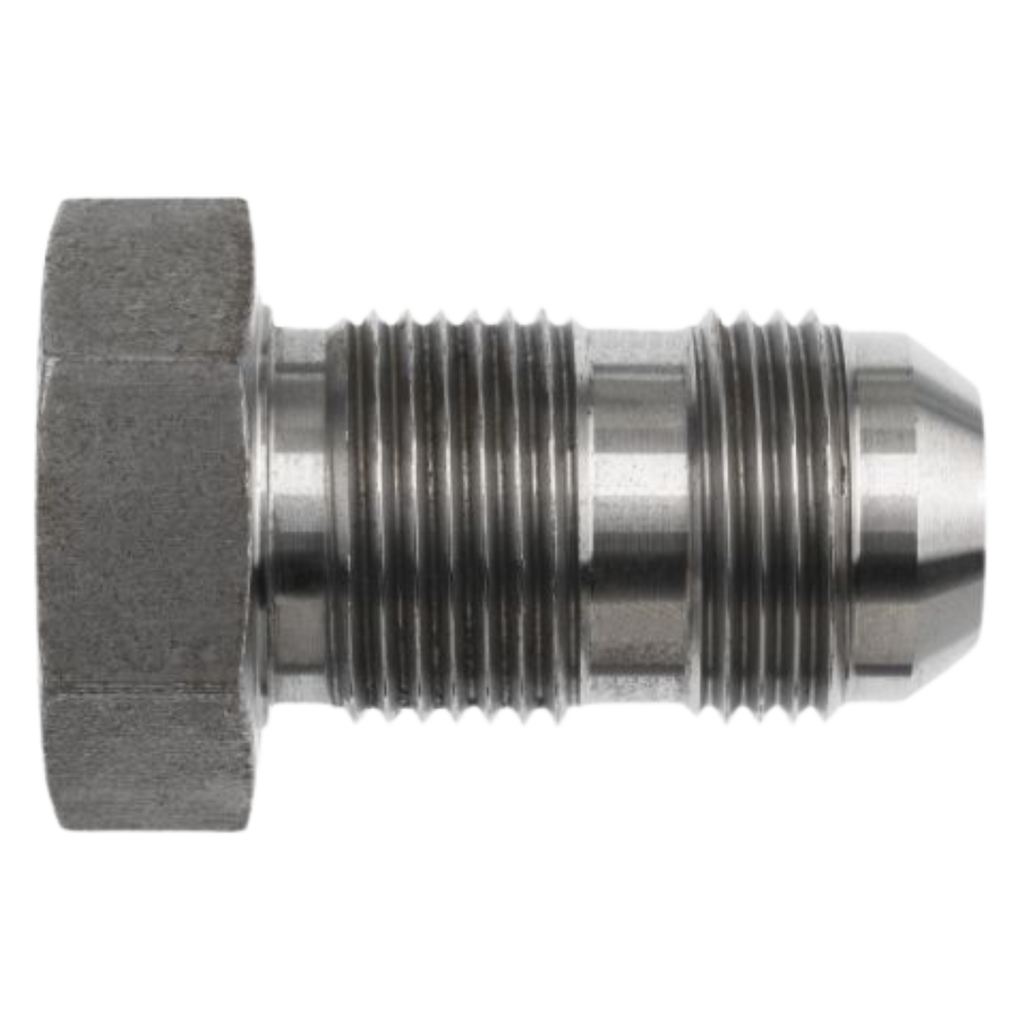

Our Series 0406 Bored Straight Male JIC Bulkhead Adapters are designed to provide a secure, leak-free connection in hydraulic systems. These adapters are similar to standard JIC adapters but feature a unique design with a hole bored through the hex for added functionality. Made from high-quality carbon steel, they are ideal for applications where fluid flow needs to be routed through a bulkhead while maintaining the reliability of a 37-degree flare JIC connection. The bored hole allows for additional customizations, such as fluid transfer or venting, while still offering the robust performance and durability you expect from JIC fittings.
