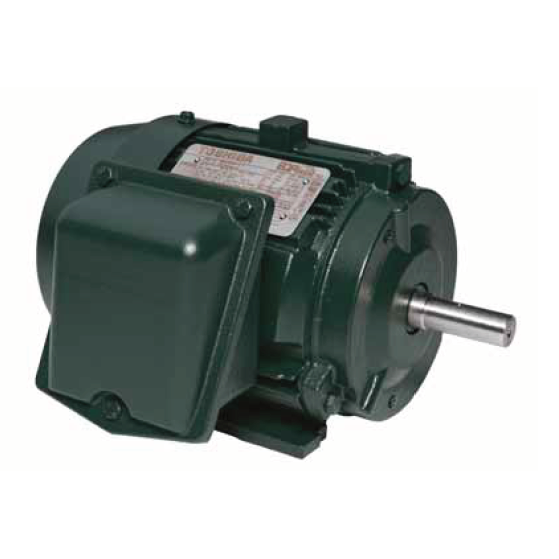

0404SDSR41B-P : Toshiba EQP Global SD Motor, 40HP, 1800RPM, 230/460V, 324TS Frame
Roll over image to zoom in Click on image to zoom
0404SDSR41B-P : Toshiba EQP Global SD Motor, 40HP, 1800RPM, 230/460V, 324TS Frame

0404SDSR41B-P : Toshiba EQP Global SD Motor, 40HP, 1800RPM, 230/460V, 324TS Frame

Save $1,264.01
ToshibaSKU: 0404SDSR41B-P
1-3 Days
2
Price:
$2,708.99 $3,973.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 2
Factory Location Houston, Texas
Horsepower 40
Rpm 1800
Motor Voltage 230/460
Electric Motor Frame Size 324TS
Electric Motor Type EQP GLOBAL SD
Fl Amps 96/48
Nominal Fl Efficiency 94.1
Height 19
Length 29.8
Width 17.3
Weight 668

Description

Toshiba’s general purpose, totally enclosed fan cooled, NEMA Premium® efficiency, EQP Global® SD motor series is Toshiba’s next generation motor product line. This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba. Building on over 20 years of success with Toshiba's EQPIII motor series, the EQP Global® SD features design enhancements on the rotor, frame, brackets, fan, and bearings.
