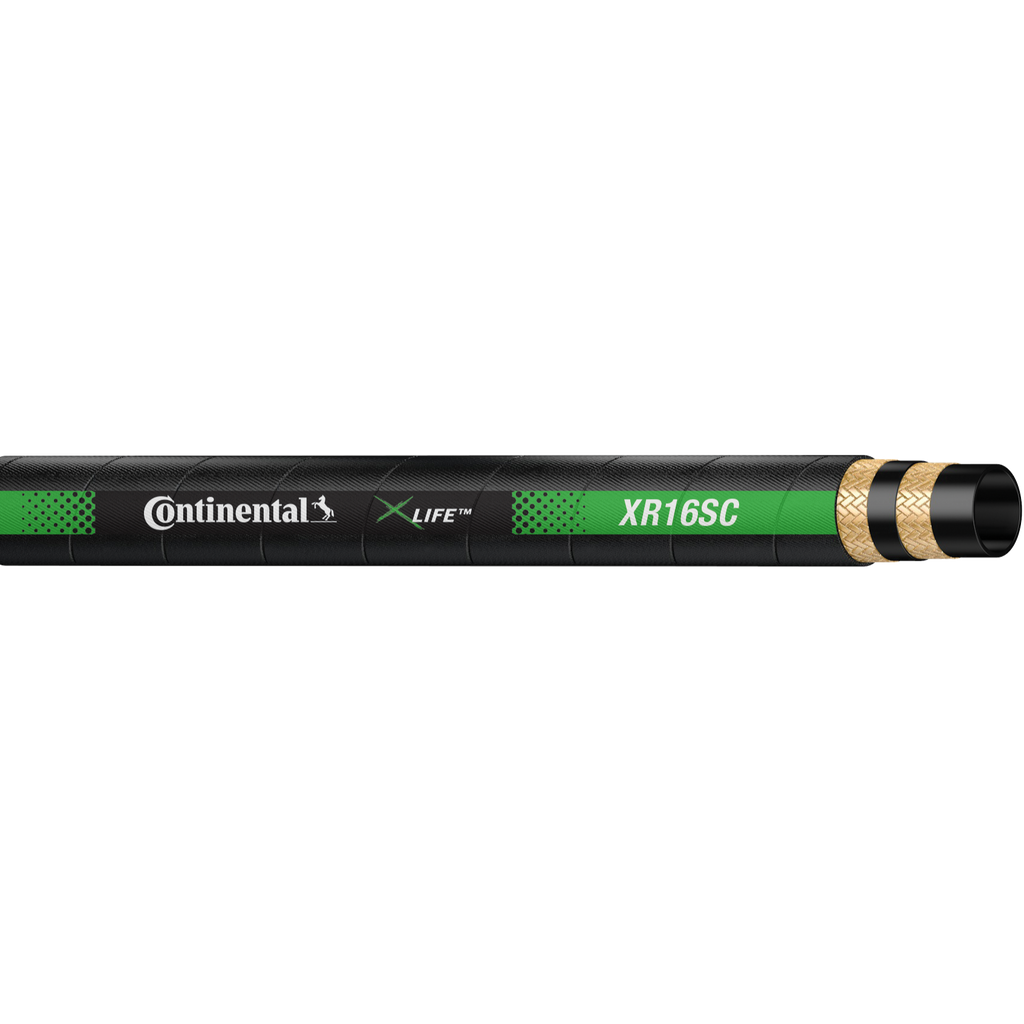

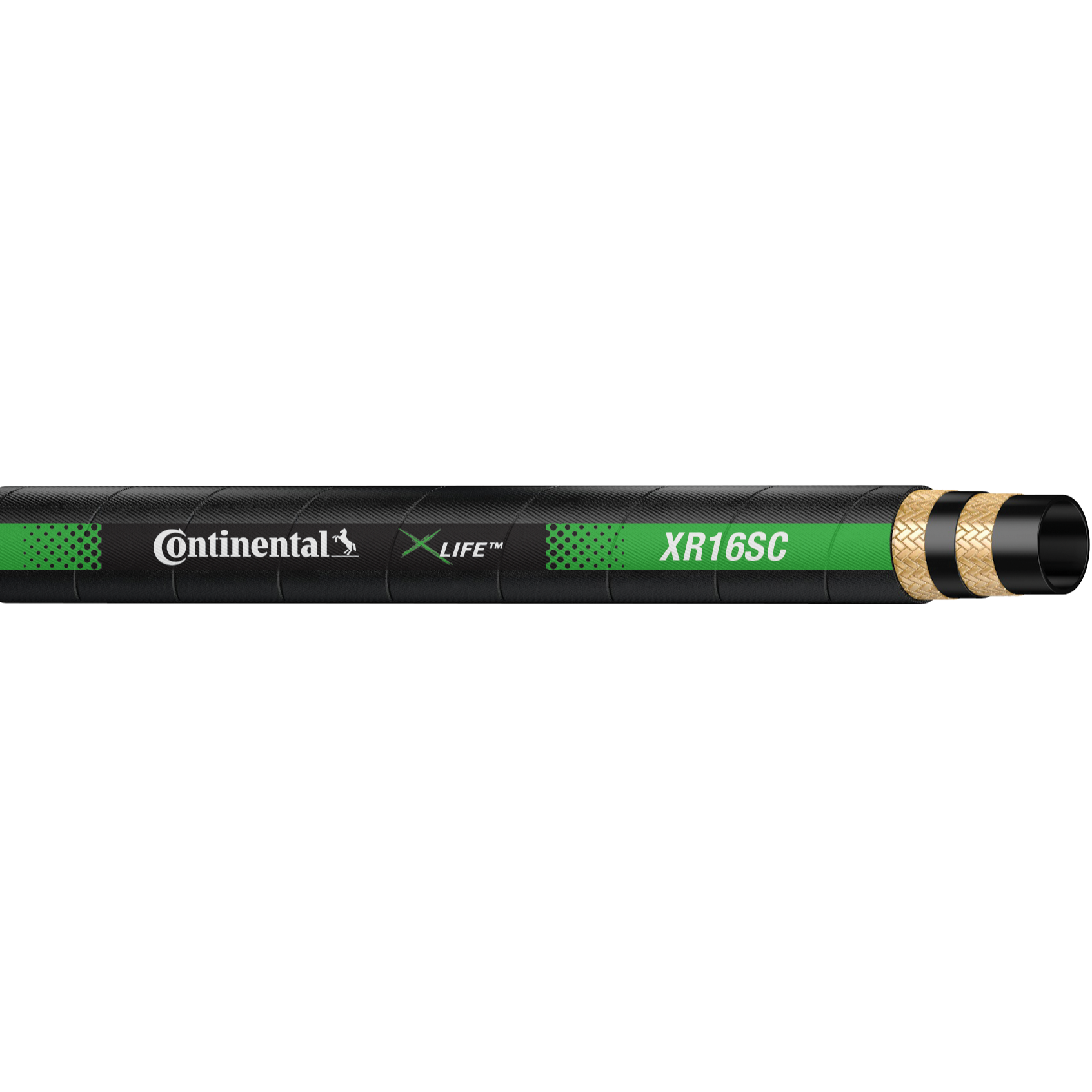

XR16SC-16 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 1" ID, 3000 Rated, BY THE INCH
Roll over image to zoom in Click on image to zoom
XR16SC-16 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 1" ID, 3000 Rated, BY THE INCH

XR16SC-16 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 1" ID, 3000 Rated, BY THE INCH

ContiTech Continental HoseSKU: XR16SC-16
Same Day
3000
Price:
$1.16

Product Details

Data Sheet Click here to download
Usually Ships Within Same Day
Factory Location Moberly, Missouri
Pressure Rating 3000
Inside Diameter 1"
Burst Rating 12000
Bend Radius 6.0
Hose Style 2-Braid High Tensile Steel Wire
Series XR16SC
Outside Diameter 1.4
Operating Temp -40F to +212F
Approvals SAE 100R16, EN 857 2SC, SAE J1942 US Coast Guard
Country of Manufacture United States
Safety Note 4:1
