Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Grand Rapids, Michigan |
| Port Size | 7/16-20 (-04) ORB Load Sense & Control Line |
| Shaft Size | 13T 8/16 DP |
| Shaft Type | Splined |
| Port Location | Side Ported |
| O Ring Seals | Nitrile Seals with Viton Shaft Seals |
| Pressure Rating | 4640 |
| Rotation | Clockwise |
| Displacement | 140 |
| Gpm At 1800 Rpm | 66.5 |
| Max Speed | 2200 |
| Inlet Port | 2.5" Code 61 |
| Outlet Port | 1.25" Code 62 |
| Pump Control | Load Sense + Pressure Cut-Off (With LS Bleed Blocked) |
| Circuit Type | Open Circuit |
| Drain Port | 1-1/16-12 (-12) ORB |
| Series | K3VL140 |
| Country of Manufacture | Japan |
| Height | 12.76 |
| Length | 14.75 |
| Width | 8.92 |
| Weight | 144 |
Description

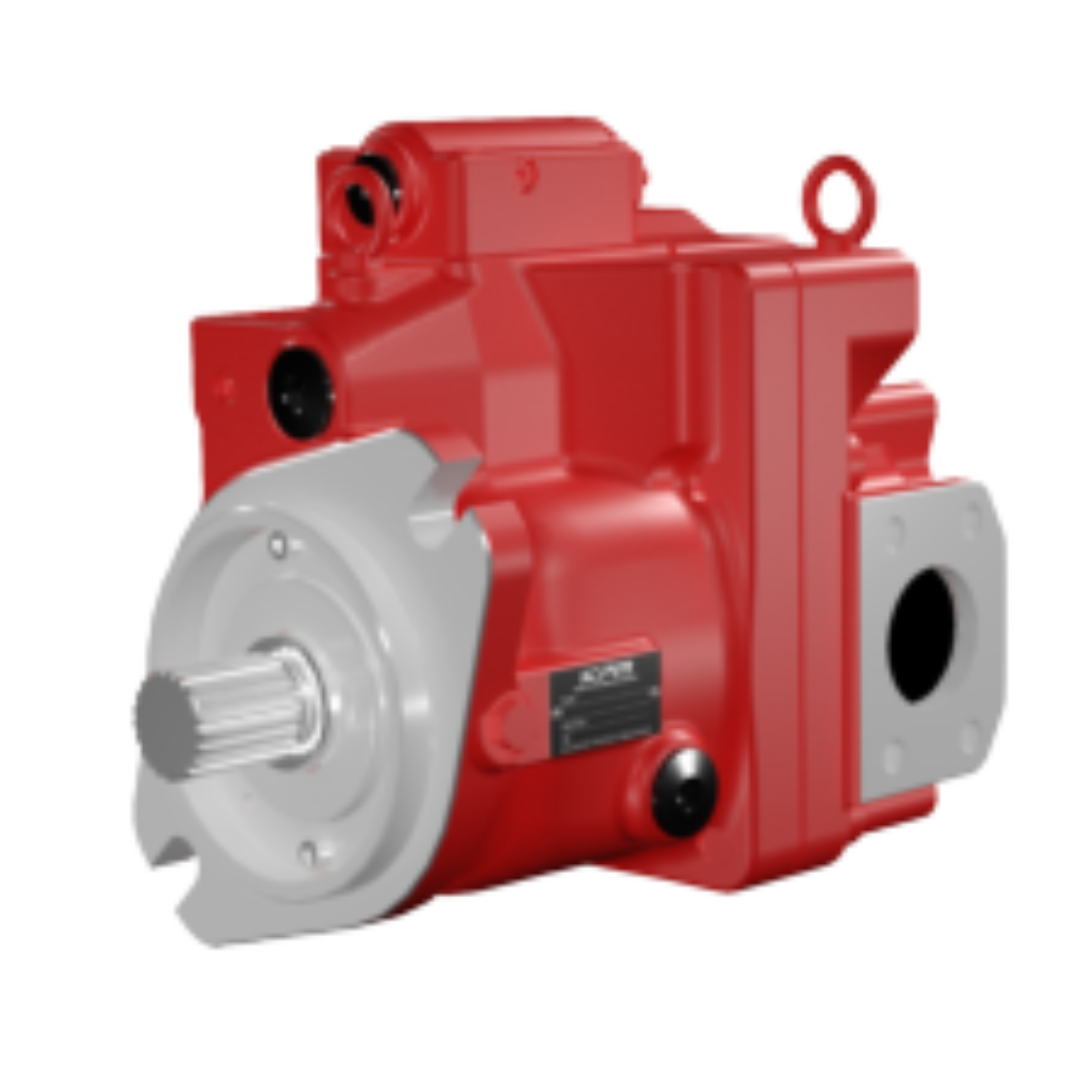

The Kawasaki K3VL140 Piston Pump is a high-performance, variable displacement hydraulic pump designed for demanding marine, mobile, and industrial applications. With a 140cc (8.54 in³) capacity, this medium to high-pressure pump delivers up to 4640 psi of continuous pressure and features a maximum self-priming speed of 2200 RPM. It offers advanced control options, including load sensing, torque limiting, and electronic displacement control, ensuring optimal performance and efficiency under varying load conditions. The K3VL140 is an open-circuit, axial piston pump, providing reliable and durable performance, making it ideal for systems that require adjustable flow rates and robust hydraulic capabilities.
