Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 5 Days |
| Factory Location | Cincinnati, Ohio and Houston, Texas |
| Material | Carbon Steel |
| Flange Code | Code 61 |
| Flange Size | 0.75 (3/4") |
| Pressure Rating | 5000 |
| Sae Connector Flange Type | Split Flange Adapter |
| Fitting Angle | 45-Degree |
| Adapter Notes | 1 1/16-12 |
| Country of Manufacture | China |
| Height | 1.28 |
| Length | 1.5 |
| Width | 1.28 |
| Side 1 Gender | Male |
| Side 1 Size | 0.75 (3/4") |
| Side 1 Type | JIC |
Description

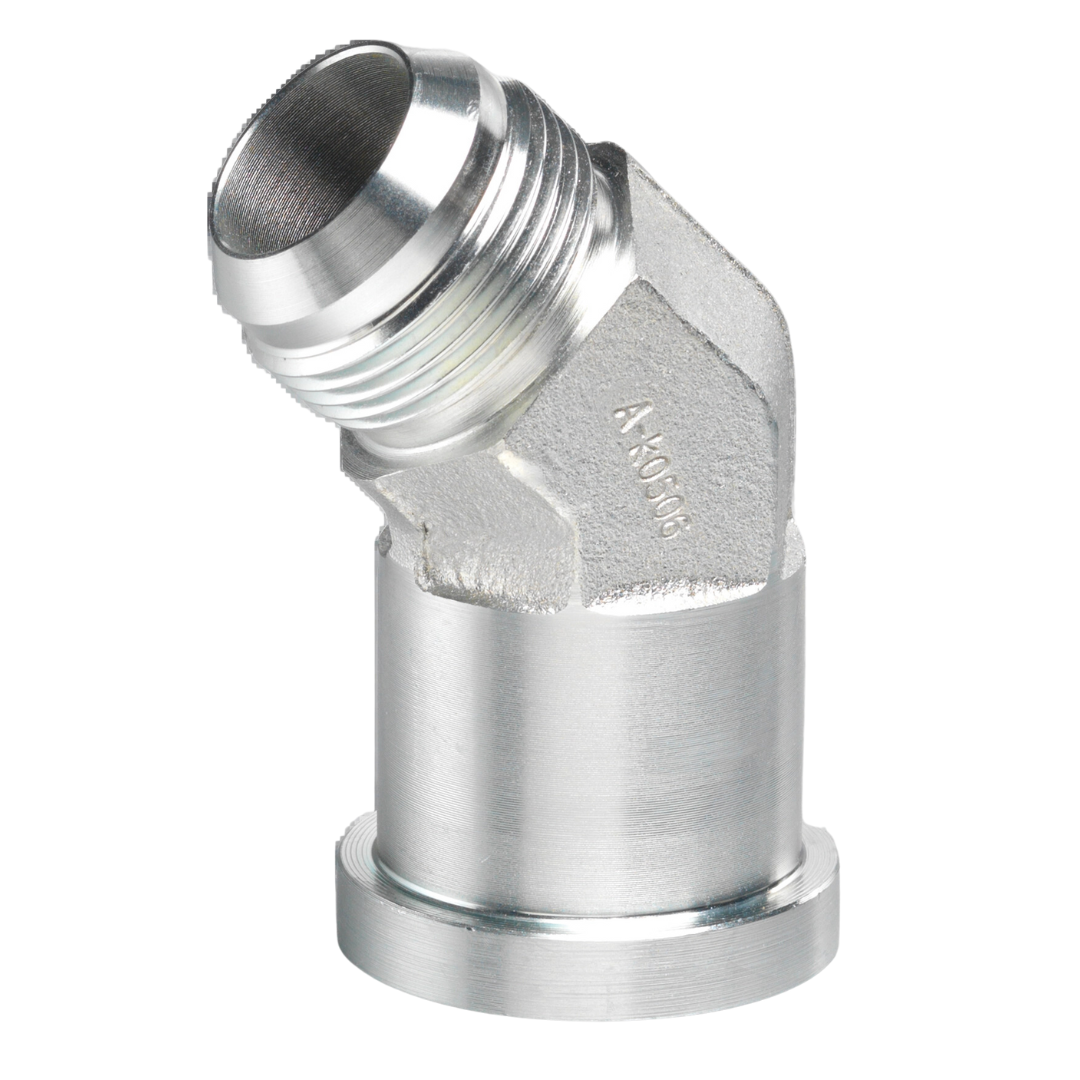

Anchor Fluid Power Series 340 Code 61 x Male JIC hydraulic 45-degree split flange heads are designed for creating angled connections in hydraulic systems. These components feature a 45-degree angle to facilitate directional changes without bending pipes, making them ideal for navigating tight spaces or aligning system components. The split flange heads are part of a two-piece assembly that, when paired with Code 61 split flange halves, ensures a secure, leak-proof connection. They are used in high-pressure applications where precise alignment and durability are required.
