SD2E-A3/H2D26A-12DIN : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 12 VDC DIN, Port 1 Blocked, 3 to 2 Neutral

Save $72.85
Argo-HytosSKU: SD2E-A3/H2D26A-12DIN
Same Day
2

Price:
Sale price$72.99 Regular price$145.84

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Cartridge
Flow Rating 8
Pressure Rating 5100
Actuation Type Solenoid Operated
Spool Configuration Port 1 Blocked, 3 to 2 in Neutral, 2D26
Cartridge Cavity C-8-3
Positions 2-Position
Way 3-Way
Coil Selection 12 VDC DIN Coil
Coil Model Code C19B-01200E1-4.9NA
Country of Manufacture Czech Republic
Height 1
Length 4.31
Width 1
Weight 1

Description

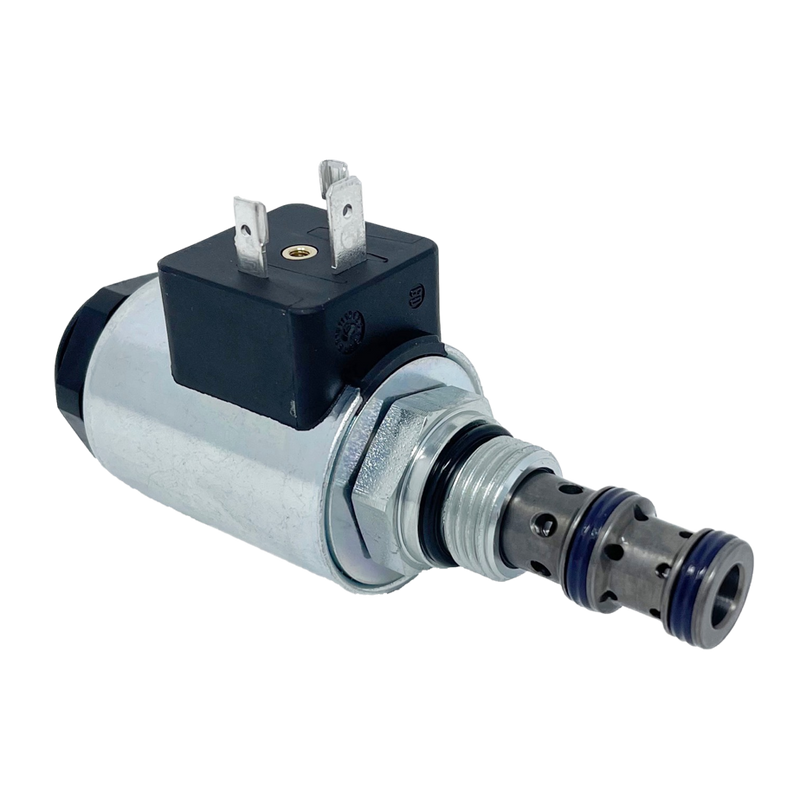

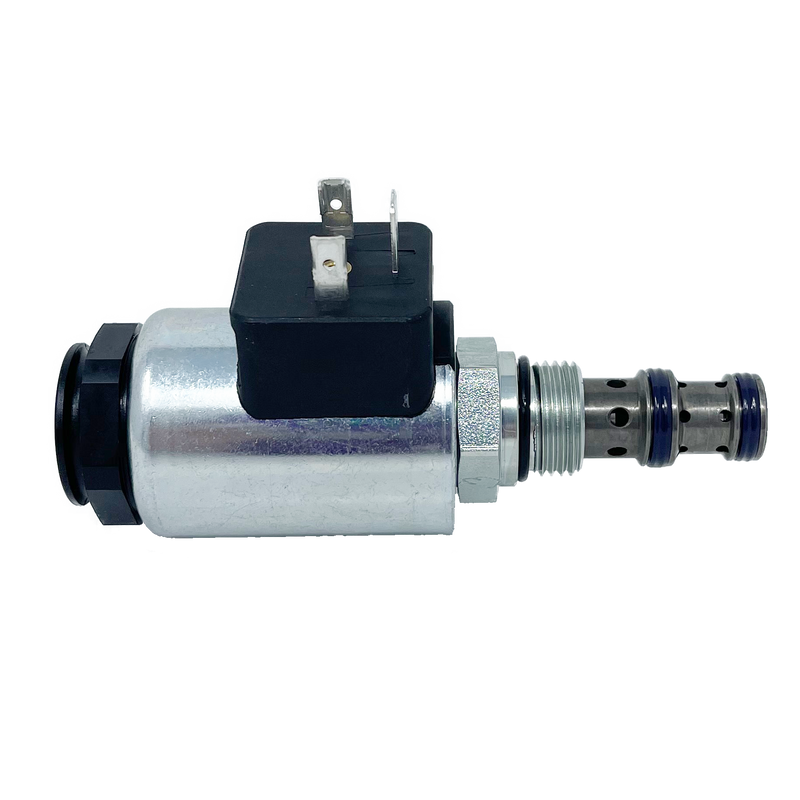

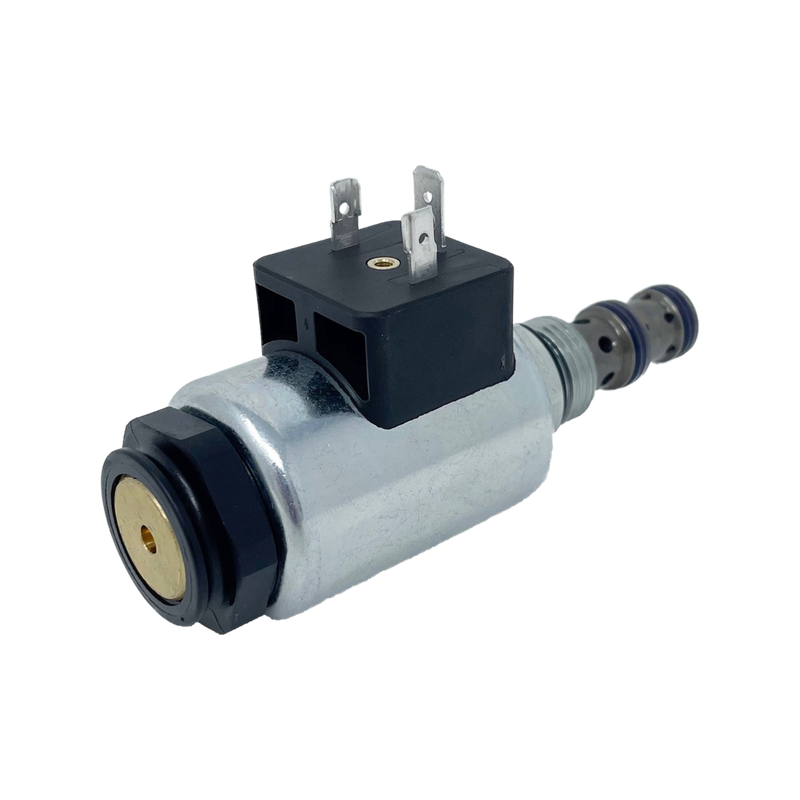

The Argo-Hytos 3-Way, 2-Position, bi-directional, solenoid operated, direct-acting cartridge valve is made with hardened precision parts, and is used to direct flow to actuators. Coil interchangeability between all SD*A cartridges.
